HT-ST9

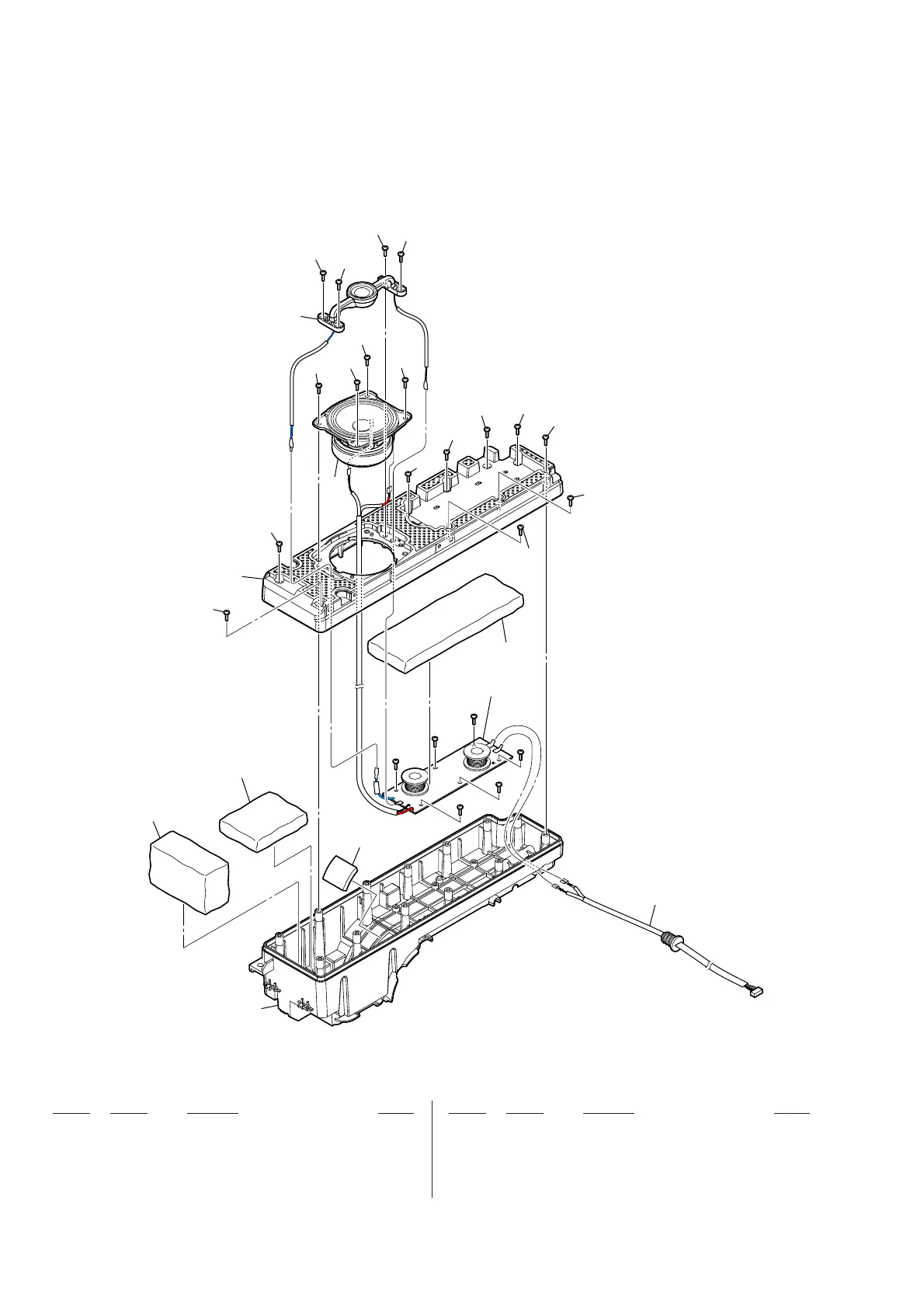

6-6. SPEAKER (L-ch) SECTION
• Front bottom view
251 4-986-971-02 SCREW (3.5)
SP1 1-859-073-11 LOUDSPEAKER (18 mm, WITH BRIDGE)
(Tweeter (Front L-ch))
SP2 1-859-076-21 LOUDSPEAKER (6.5 cm)-076-21
(Woofer (Front L-ch))
SPC1 1-848-696-11 CONNECTION CABLE WITH SPEAKER (for L-ch)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251
251
251
251
251
251
251
251
251
251
251
251
251
251
251
251
251
not supplied
not supplied
SPC1
not supplied
not supplied
not supplied
(MOUNTED board)
not supplied
not supplied
#2
#2
#2
#2
#2
#2
SP1
SP2
To Next Page
