Sony SA-WST9 - Front Speaker (R) Block

HT-ST9
31

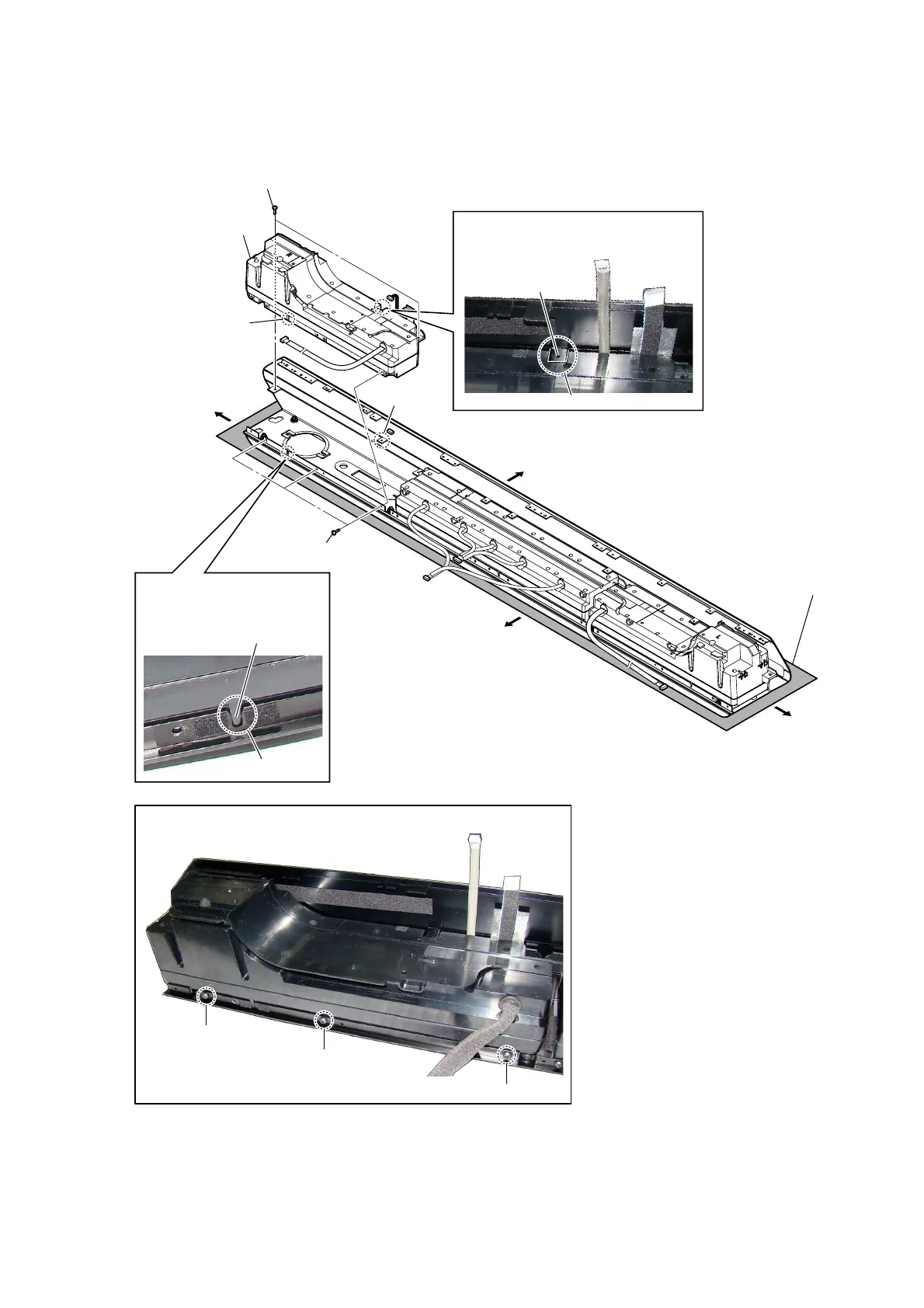

2-22. FRONT SPEAKER (R) BLOCK
1 two step screws
(B3 u 6)
2 three screws
(BVTP3 u 8)
3 front speaker (R) block
guide pin
– Rear view –
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
guide
Right side
Top side
Left side
Bottom side
guide
Note 2:
When installing the front speaker (R)
block, align the guide and groove.
Note 3:
When installing screws (BVTP3 × 8), follow the installing
procedure in the numerical order given.
1
2
3
groove
guide pin
Note 2:
When installing the front
speaker (R) block, align
the guide pin and groove.
groove
