HT-ST9
32

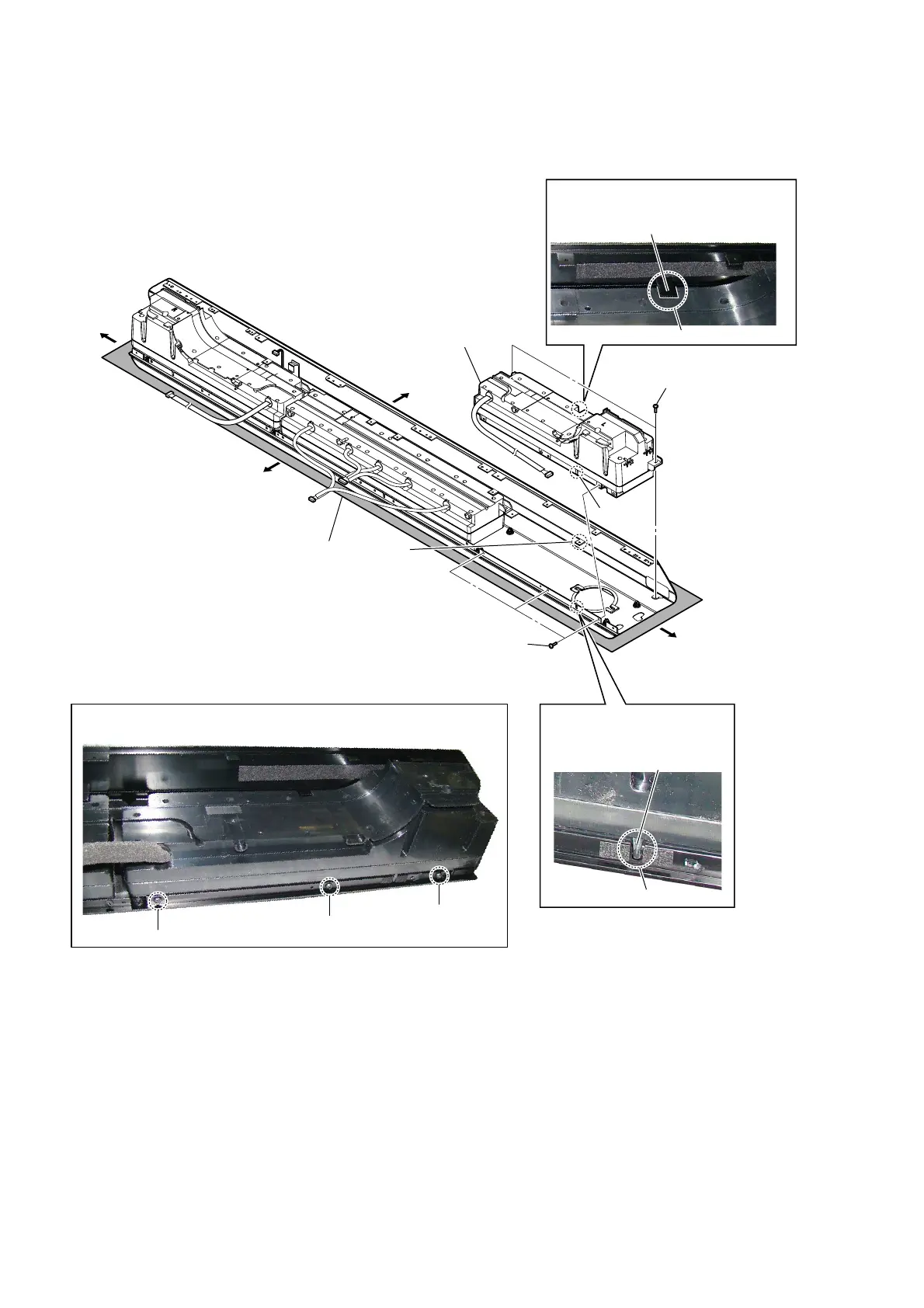

2-23. FRONT SPEAKER (L) BLOCK
– Rear view –
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
1 two step screws
(B3 u 6)
2 three screws
(BVTP3 u 8)
3 front speaker (L) block
guide pin
guide
groove
guide pin
Note 2:
When installing the front
speaker (L) block, align
the guide pin and groove.
Right side
Top side
Left side
Bottom side
groove
guide
Note 2:
When installing the front speaker (L)
block, align the guide and groove.
Note 3:
When installing screws (BVTP3 × 8), follow the installing procedure
in the numerical order given.
1
2
3
To Next Page
