HT-ST9
26
2-17. RF MODULATOR BLOCK-3
86%ERDUGFDEOHVHWWLQJ
–5HDUYLHZ–
Note 4:
When installing the USB board
cable, pressed into the groove.
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.

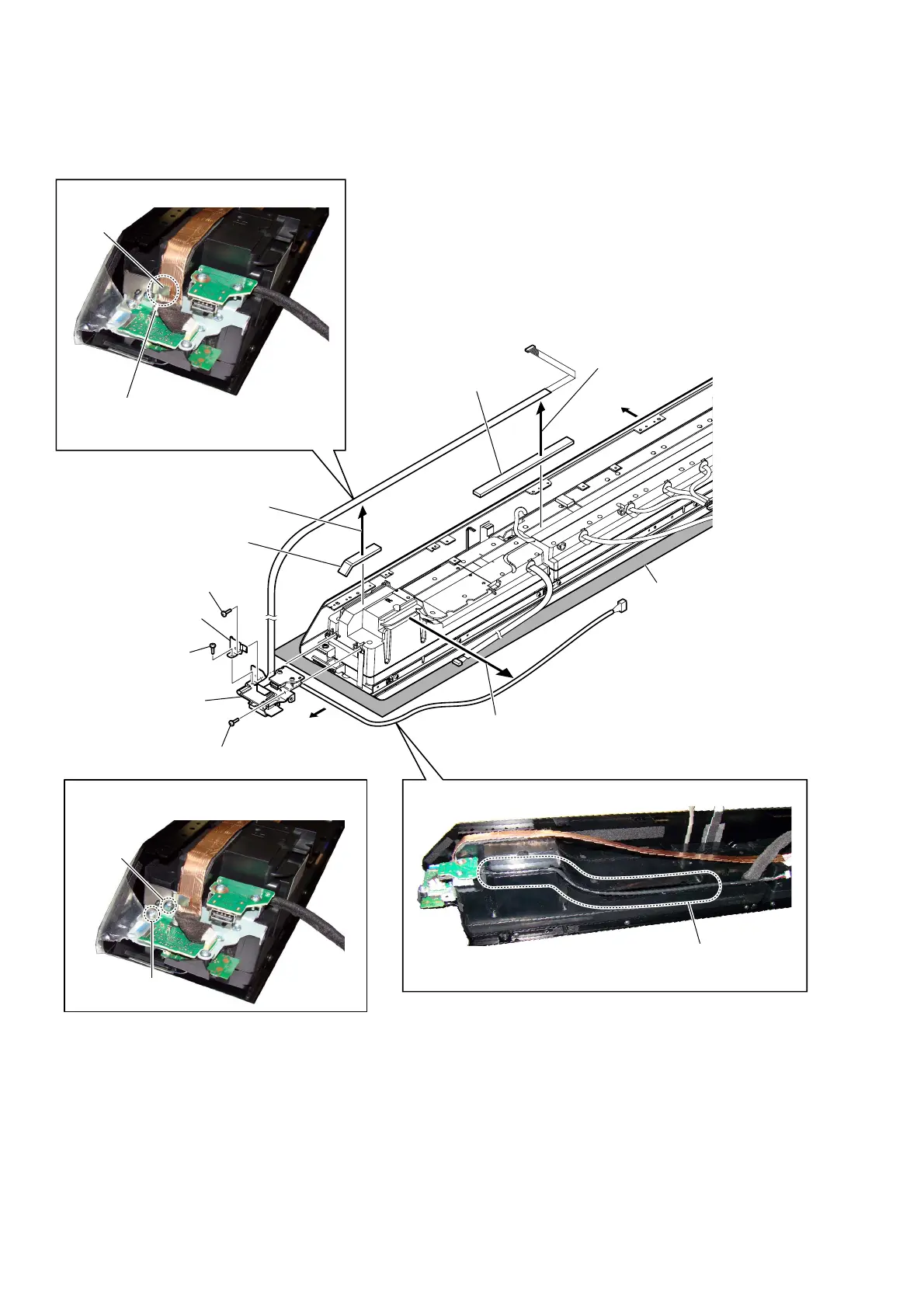

1 Draw the USB board cable
out of the groove.
2 Peel off the wire (WS) from
the cushion (wire WS1).
4 Peel off the wire (WS) from
the cushion (wire WS2).
6 screw
(BVTP3 u 8)
3 cushion
(wire WS1)
5 cushion
(wire WS2)
6 screw
(BVTP3 u 8)
8 screw
(BVTP3 u 8)
9 RF modulator block
7 leaf spring (cable)
+RZWRLQVWDOOWKHOHDIVSULQJFDEOH
Note 3:
When installing the leaf spring (cable),
install so that it does touch the copper
foil part of the wire.
–5LJKWYLHZ–
leaf spring
(cable)
Note 2:
When installing screws (BVTP3 × 8), follow the
installing procedure in the numerical order given.
1
2
Right side
Top side
