Sony SA-WST9 User Manual

HT-ST9
35

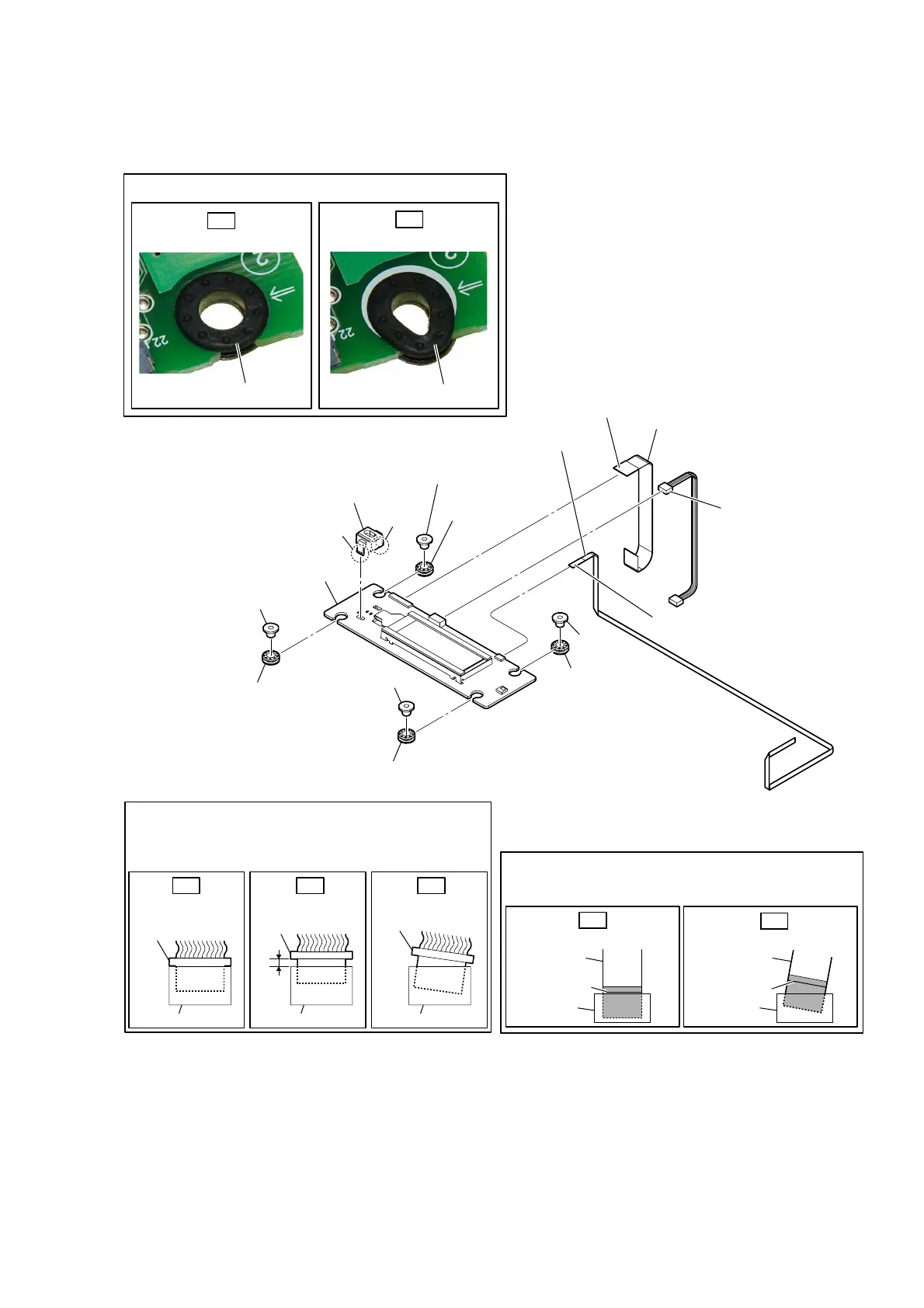

2-27. DISPLAY BOARD BLOCK-2
Insert only part way.Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
 How to install the connector
Insert the connector straight into the interior.
There is a possibility that using this unit without
the connector correctly installed will damage it.
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
 How to install the flexible flat cable
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
OK
NG
– DISPLAY board block front bottom view –
1 connector
(CN1303)
2 FFC (6P) (FFC5)
(CN1305)
3 FFC (22P) (FFC4)
(CN1304)
4 collar (damper)
7 holder (EL) block
The lower side is
the terminal side.
The lower side is
the terminal side.
5 bushing
(damper)
6 claw
8 DISPLAY board block
6 claw
4 collar
(damper)
5 bushing
(damper)
4 collar
(damper)
5 bushing
(damper)
4 collar
(damper)
5 bushing
(damper)
 How to install the bXshinJ damSer
Shape is round. Shape is not round.
bushing (damper)
bushing (damper)
