79
HT-ST9

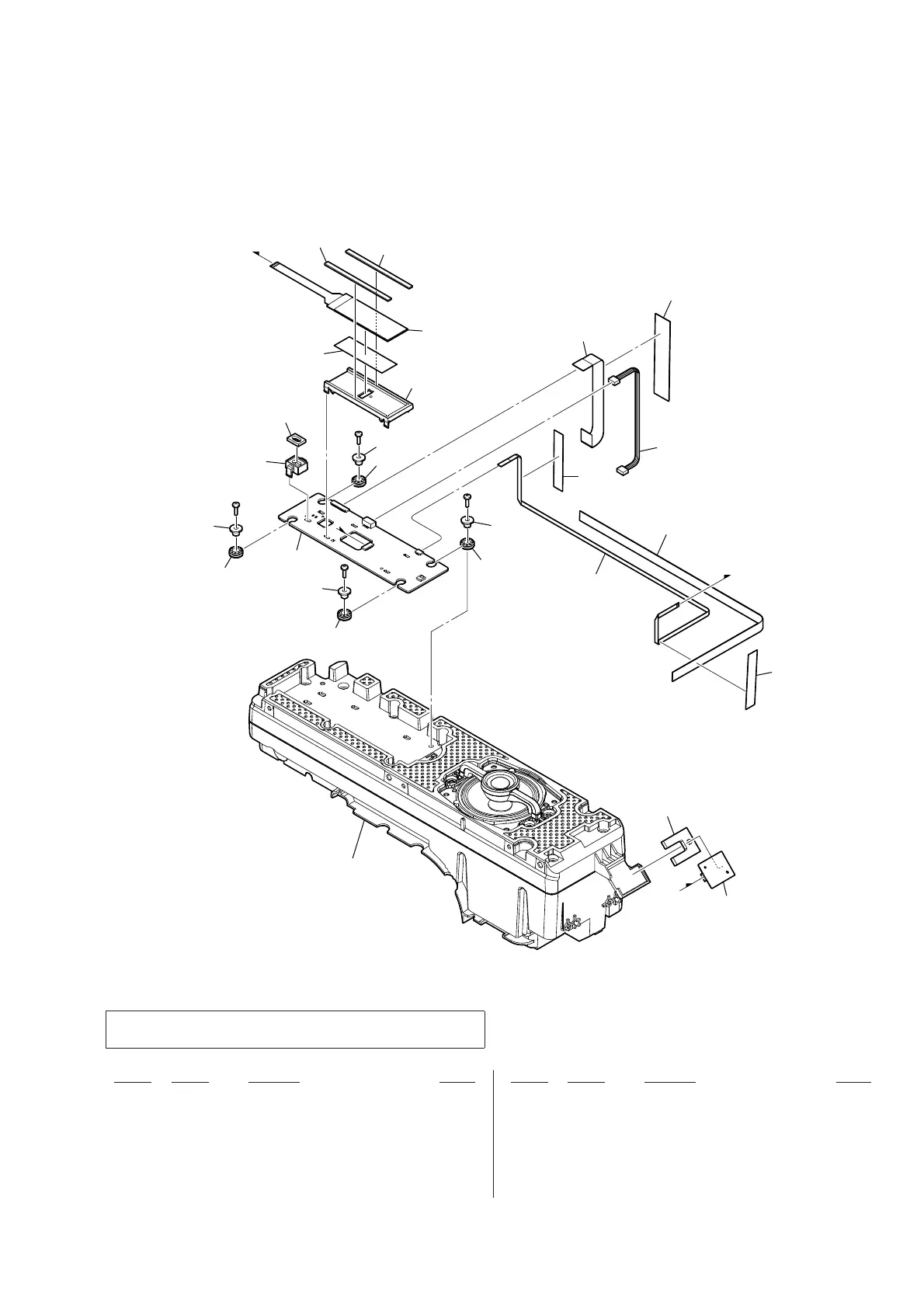

6-7. DISPLAY BOARD SECTION
• Front bottom view
* 301 3-378-109-01 CUSHION, SARANET
302 4-546-431-01 CUSHION (NFC)
303 A-2054-813-A DISPLAY BOARD, COMPLETE
304 4-453-877-01 BUSHING (DAMPER)
305 4-453-878-01 COLLAR (DAMPER)
306 4-559-873-01 CUSHION (WINDOW)
FFC4 9-833-606-99 WIRE KIT (FFC/SA-ST9) (22P) (See Note)
FFC5 9-833-606-99 WIRE KIT (FFC/SA-ST9) (6P) (See Note)
NFC1 8-989-602-00 RC-S730 (NFC module)
OLED1 1-812-047-11 OLED DISPLAY
#4 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301
301
306
306
303
304
304
304
304
305
302
speaker (R-ch) section
NFC1
#4
#4
#4
#4
not supplied
not supplied
not supplied
not supplied
not supplied
FFC4
(22 pin)
FFC5
(6 pin)
U
U
T
T
305
305
not supplied
not supplied
OLED1
305
Note: As for WIRE KIT (FFC/SA-ST9), all fl at fl exible cables (Ref. No.
FFC1, FFC2, FFC3, FFC4, FFC5) will be 1 set.
To Next Page
