HT-ST9

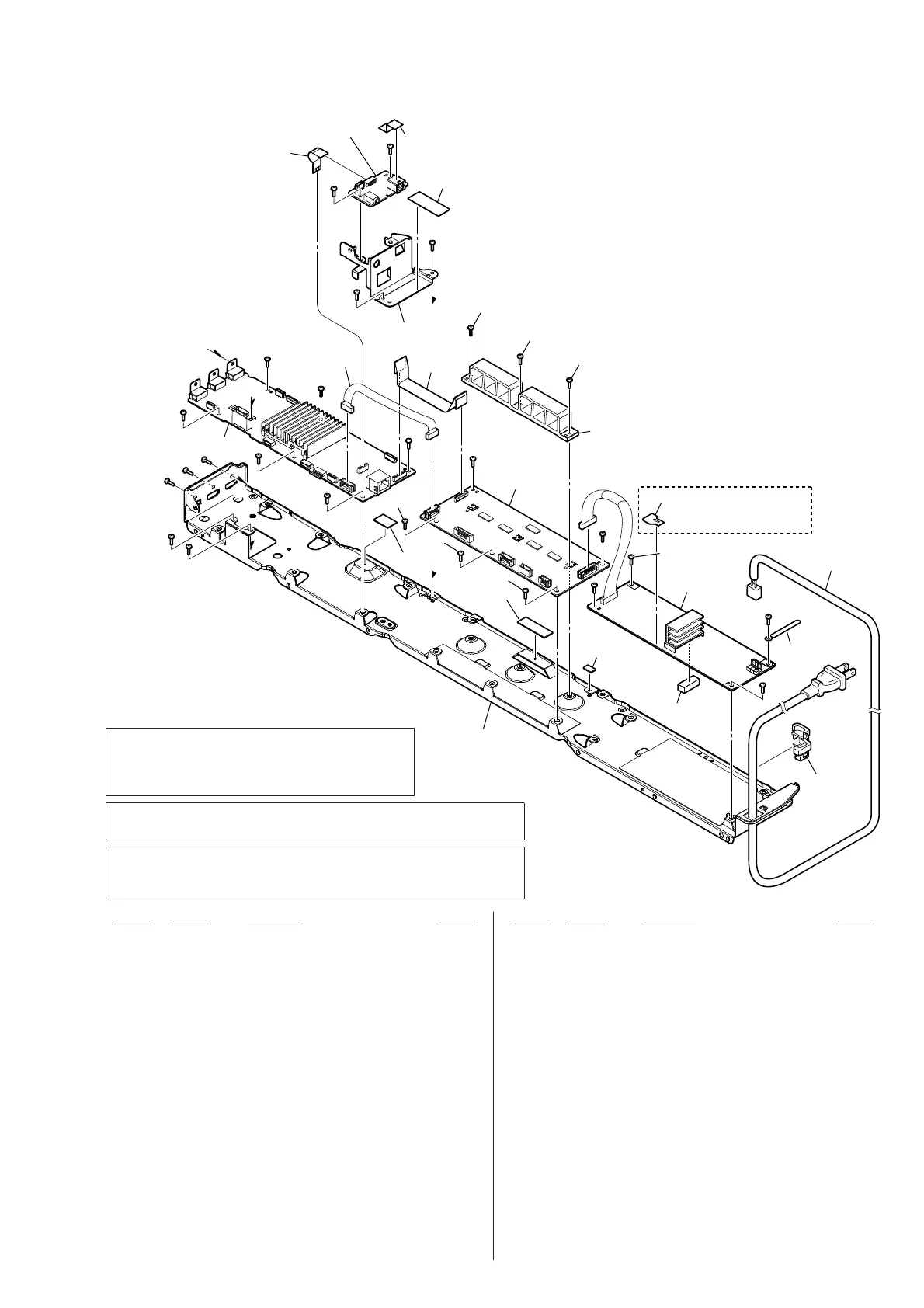

6-3. CHASSIS SECTION
• Rear bottom view
101 4-974-510-11 SCREW (+BV 3X8 CU)
102 A-2054-809-A AMP BOARD, COMPLETE (Except LA)
(See Note 3)
102 A-2080-753-A AMP BOARD, COMPLETE (LA) (See Note 3)
9 103 A-2071-285-A MB1406 BOARD, COMPLETE (SV) (US, CND)
(See Note 1)
9 103 A-2071-287-A MB1406 BOARD, COMPLETE (SV) (AEP)
(See Note 1)
9 103 A-2071-288-A MB1406 BOARD, COMPLETE (SV) (UK)
(See Note 1)
9 103 A-2071-289-A MB1406 BOARD, COMPLETE (SV) (RU)
(See Note 1)
9 103 A-2071-290-A MB1406 BOARD, COMPLETE (SV) (SP)
(See Note 1)
9 103 A-2071-291-A MB1406 BOARD, COMPLETE (SV) (AUS)
(See Note 1)
9 103 A-2071-293-A MB1406 BOARD, COMPLETE (SV) (CH)
(See Note 1)
9 103 A-2071-294-A MB1406 BOARD, COMPLETE (SV) (TW)
(See Note 1)
9 103 A-2071-298-A MB1406 BOARD, COMPLETE (SV) (LA)
(See Note 1)
104 3-905-609-13 SCREW (TRANSISTOR)
105 A-2054-811-A POWER BOARD, COMPLETE
(AEP, RU, UK, AUS, CH, SP)
105 A-2059-212-A POWER BOARD, COMPLETE (US, CND, TW)
105 A-2075-345-A POWER BOARD, COMPLETE (LA)
0 106 4-966-267-12 BUSHING (FBS001), CORD
0 AC1 1-834-966-42 POWER-SUPPLY CORD (AEP, RU, LA, SP)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-837-345-11 CORD, POWER-SUPPLY (TW)
0 AC1 1-837-822-21 CORD, POWER-SUPPLY (CH)
0 AC1 1-839-999-21 POWER-SUPPLY CORD (UK)
FFC1 9-833-606-99 WIRE KIT (FFC/SA-ST9) (28P) (See Note 2)
FFC2 9-833-606-99 WIRE KIT (FFC/SA-ST9) (9P) (See Note 2)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-547-09 SCREW +B 3X6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
FFC1
(28 pin)
FFC2
(9 pin)
#2
#2
#3
#3
#3
#3
#3
101
101
101
101
105
102
103
104
104
104
106
(Except US, CND, TW)
not supplied
not supplied
AC1
E
E
C
C
D
D
not supplied
not supplied
(IO board)
Note 3: When the complete AMP board is replaced, refer to “NOTE OF RE-
PLACING THE IC7004, IC7005, IC7007 AND IC7008 ON THE AMP
BOARD AND THE COMPLETE AMP BOARD” on page 6.
Note 2: As for WIRE KIT (FFC/SA-ST9), all fl at fl exible cables (Ref. No.
FFC1, FFC2, FFC3, FFC4, FFC5) will be 1 set.
Note 1: When the complete MB1406 board is replaced,
refer to “NOTE OF REPLACING THE COM-
PLETE MB1406 BOARD OR CARD WLAN/
BT COMBO” on page 6.
Ver. 1.1
