1A-23 Engine General Information and Diagnosis:
Component Location

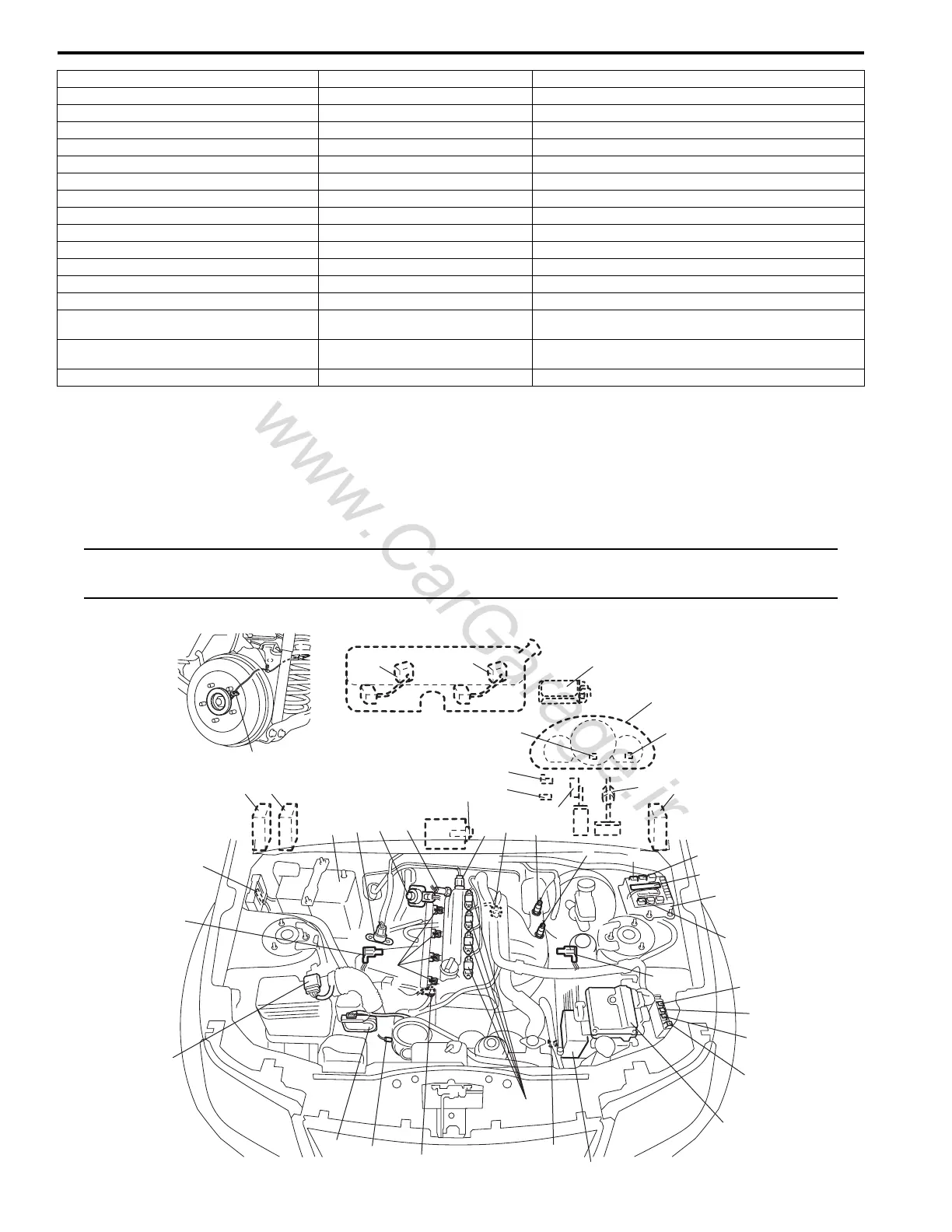

Electronic Control System Components Location
S5JB0A1103001
For J20 Engine
NOTE
The figure shows left-hand steering vehicle. For right-hand steering vehicle, parts with (*) are installed
at the opposite side.
1. Air cleaner 18. Radiator cooling fan motor 35. Immobilizer coil antenna (if equipped)
2. EVAP canister purge valve 19. Combination meter 36. Main relay
3. MAF and IAT sensor 20. BCM 37. Wheel speed sensor (VSS)
4. TP sensor 21. Ignition switch 38. Oil control valve (for M16 engine)
5. IMT valve (for J20 engine) 22. Starter magnetic switch 39. TCM (for A/T or model)
6. MAP sensor 23. Heated oxygen sensor (HO2S)-2 40. Starting motor control relay
7. EGR valve 24. DLC 41. A/C refrigerant pressure sensor (if equipped with A/C)
8. EVAP canister 25. Electric load 42. Accelerator pedal position (APP) sensor
9. Tank pressure control valve (built-in fuel pump) 26. Fuel level sensor 43. Throttle actuator control relay
10. Fuel pump 27. Stop lamp 44. Throttle actuator
11. Ignition coil assembly 28. Stop lamp switch 45. IMT vacuum solenoid valve (for J20 engine)
12. Fuel injector 29. ECM 46. Keyless start control module (if equipped)
13. A/F sensor 30. Barometric pressure sensor 47. 4WD control module (for J20 engine)
14. Knock sensor 31. Battery 48. ABS hydraulic unit / control module assembly
15. ECT sensor 32. A/C compressor relay (if equipped
with A/C)
49. For J20 engine
16. CMP sensor 33. Power steering pump pressure
switch
17. CKP sensor 34. Generator
I*
E*
11
F* G*
D
H*
B*
e
n
3*
14*
C
A
15
h
1
2
12
J*
L
16*
7*
a
9
d
4
8
10
6
5
j
m
i
c
g
k
l
f
o
K
13
b
11-1
I5JB0A110016-04
To Next Page
