Engine Mechanical: For J20 Engine 1D-87
NOTE
Be sure to use the following bolts instead of
pins in order to fix crank pulley by special
tool.
Bolt size: M8, P1.25 L = 25 mm (0.98 in.)
Strength: 7T
Tightening torque
Crankshaft pulley bolt (a): 150 N·m (15.0 kgf-m,
108.5 lb-ft)
11) Install engine assembly to vehicle referring to
“Engine Assembly Removal and Installation: For J20
Engine”.
Timing Chain Cover Cleaning and Inspection
S5JB0A1426022
Clean
Clean sealing surface on timing chain cover, crank case,
cylinder block and cylinder head.
Remove oil, old sealant, and dust from sealing surface.
Inspection
Check oil seal lip for fault or other damage. Replace as
necessary.

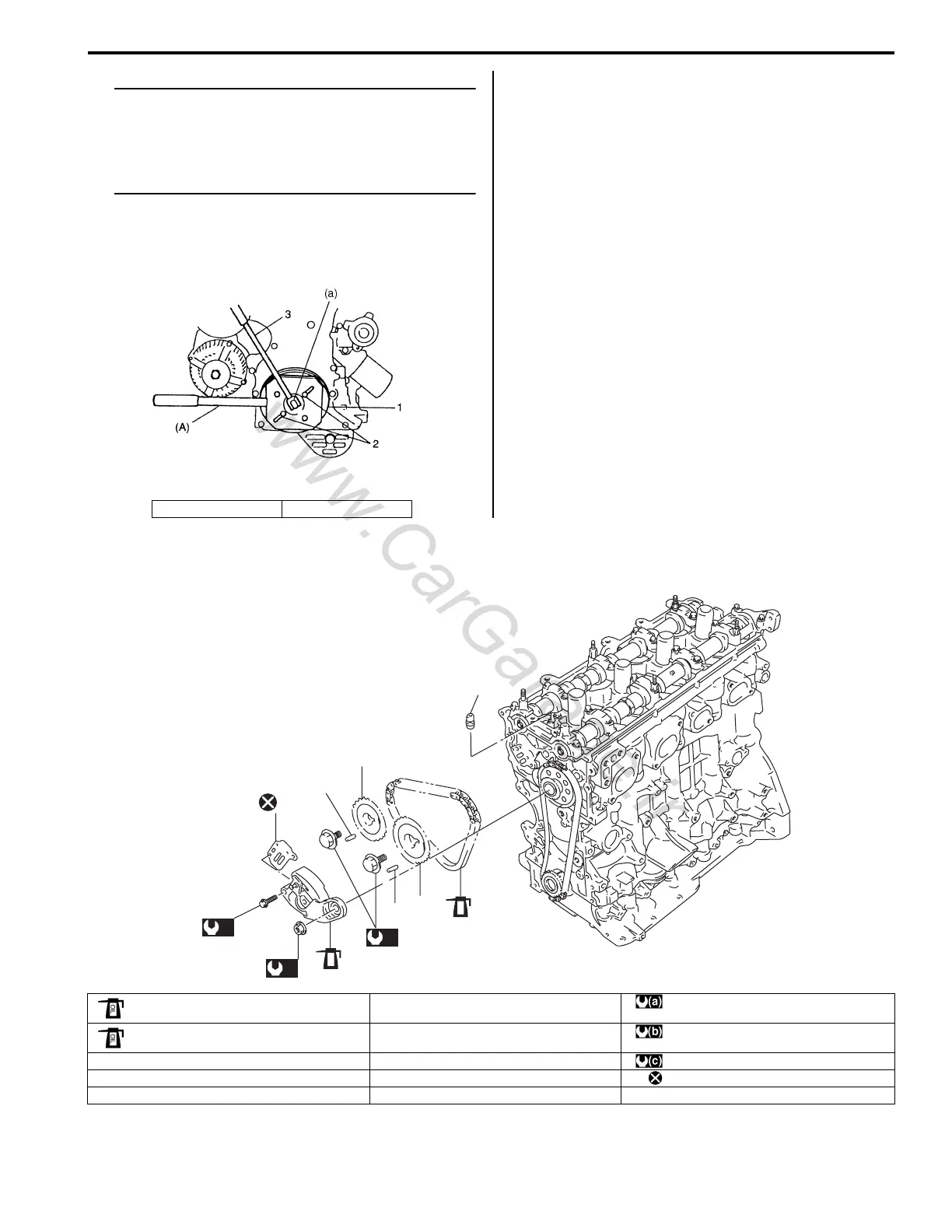

2nd Timing Chain and Chain Tensioner Components
S5JB0A1426023
2. Bolt 3. Wrench
I2RH01140060-01
10
4
9
5
1
9
OIL
2
OIL
3
8
(a)
7
(c)
6
(b)
I5JB0A142023-02
1. 2nd timing chain
: Apply engine oil
6. Camshaft timing sprocket bolt : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
2. Timing chain tensioner adjuster No.2
: Apply engine oil to sliding surface.
7. Timing chain tensioner adjuster No.2 nut : 80 N⋅m (8.0 kgf-m, 58.0 lb-ft)
3. Tensioner adjuster No.2 gasket 8. Timing chain tensioner adjuster No.2 bolt : 45 N⋅m (4.5 kgf-m, 32.5 lb-ft)
4. Intake camshaft timing sprocket 9. Pin : Do not reuse.
5. Exhaust camshaft timing sprocket 10. Oil relief valve
