Engine Mechanical: For J20 Engine 1D-91
Camshaft Sprocket
Check teeth of sprocket for wear or damage.
Timing Chain
Check timing chain for wear or damage.
Tensioner Adjuster No.2
Check shoe (1) for wear or damage and latch functions
properly.

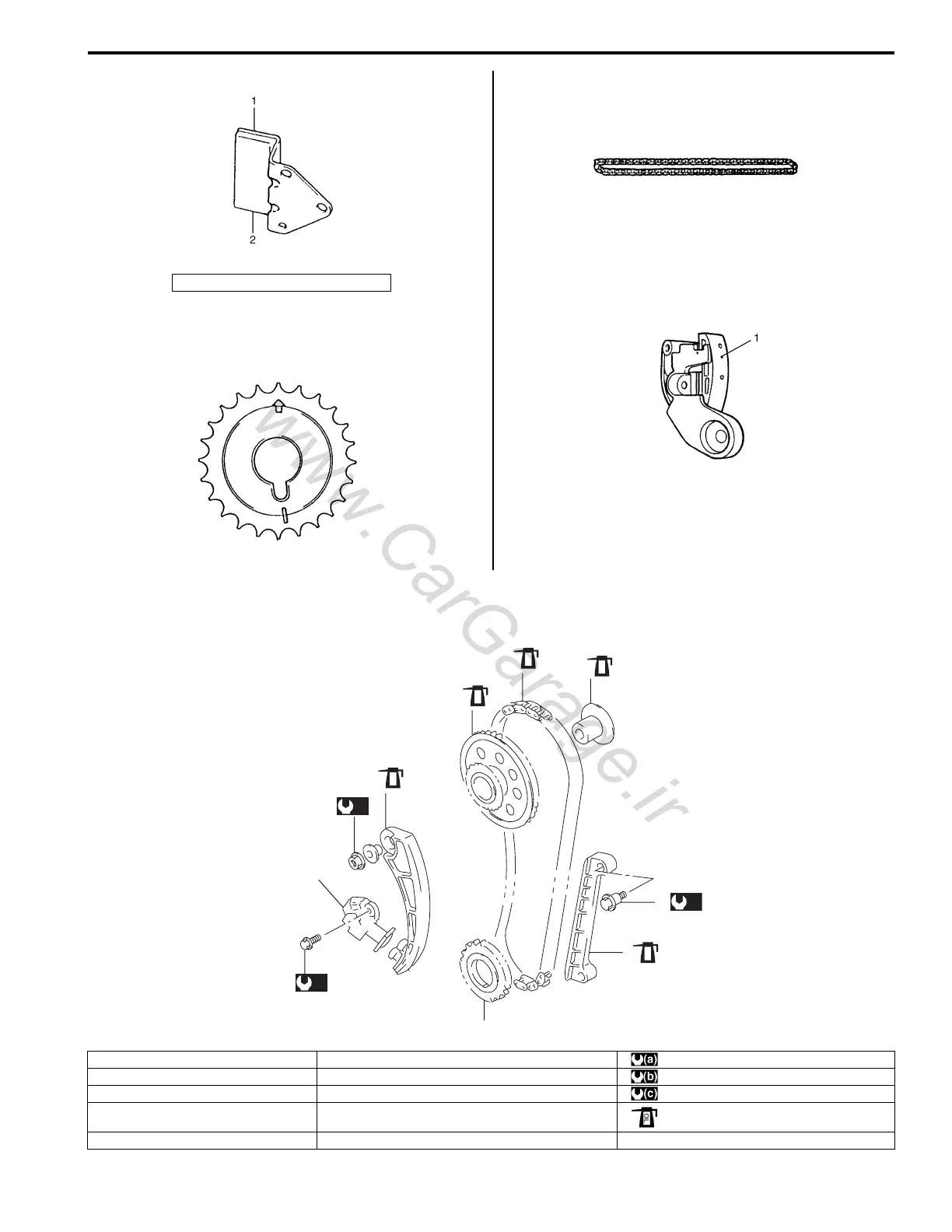

1st Timing Chain and Chain Tensioner Components
S5JB0A1426026
1. Timing chain guide No.2
I2RH01140075-01
I2RH01140076-01
I2RH01140077-01
I2RH01140078-01
OIL
(c)
10
(b)
9
(a)
8
4
7
OIL
3
OIL
1
OIL
2
OIL
5
6
I5JB0A142027-01
1. 1st timing chain 6. Timing chain tensioner adjuster No.1 : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
2. Idler sprocket 7. Timing chain guide No.1 : 9 N⋅m (0.9 kgf-m, 6.5 lb-ft)
3. Idler sprocket shaft 8. Timing chain tensioner nut : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
4. Crankshaft timing sprocket 9. Timing chain guide No.1 bolt : Apply engine oil to sliding surface.
5. Timing chain tensioner 10. Timing chain tensioner adjuster No.1 bolt
