1J-12 Charging System:
Dismounting
1) Disconnect negative (–) cable at battery.
2) Disconnect MAF sensor coupler (For J20 Engine).
3) Remove air cleaner case and air cleaner outlet hose (For J20 Engine).
4) Disconnect generator lead wire (“B” terminal wire) and coupler from generator.
5) Remove generator belt. Refer to “Water Pump and Generator Drive Belt Removal and Installation (For M16
Engine): ” or “Water Pump and Generator Drive Belt Removal and Installation (For J20 Engine): ”.
6) Remove generator drive belt adjusting bolt (For M16 Engine) and generator mounting bolt (For J20 Engine) and
generator pivot bolt.
7) Remove generator.
Remounting
1) Mount generator on the generator bracket.
2) Tighten generator mounting bolts and generator pivot bolt as specified torque (For J20 Engine).
3) Install generator belt. Refer to “Water Pump and Generator Drive Belt Removal and Installation (For M16 Engine):
” or “Water Pump and Generator Drive Belt Removal and Installation (For J20 Engine): ”.
4) Connect “B” terminal wire and coupler to generator.
5) Install air cleaner case and air cleaner outlet hose (For J20 Engine).
6) Connect MAF sensor coupler (For J20 Engine).
7) Connect negative (–) cable at battery.

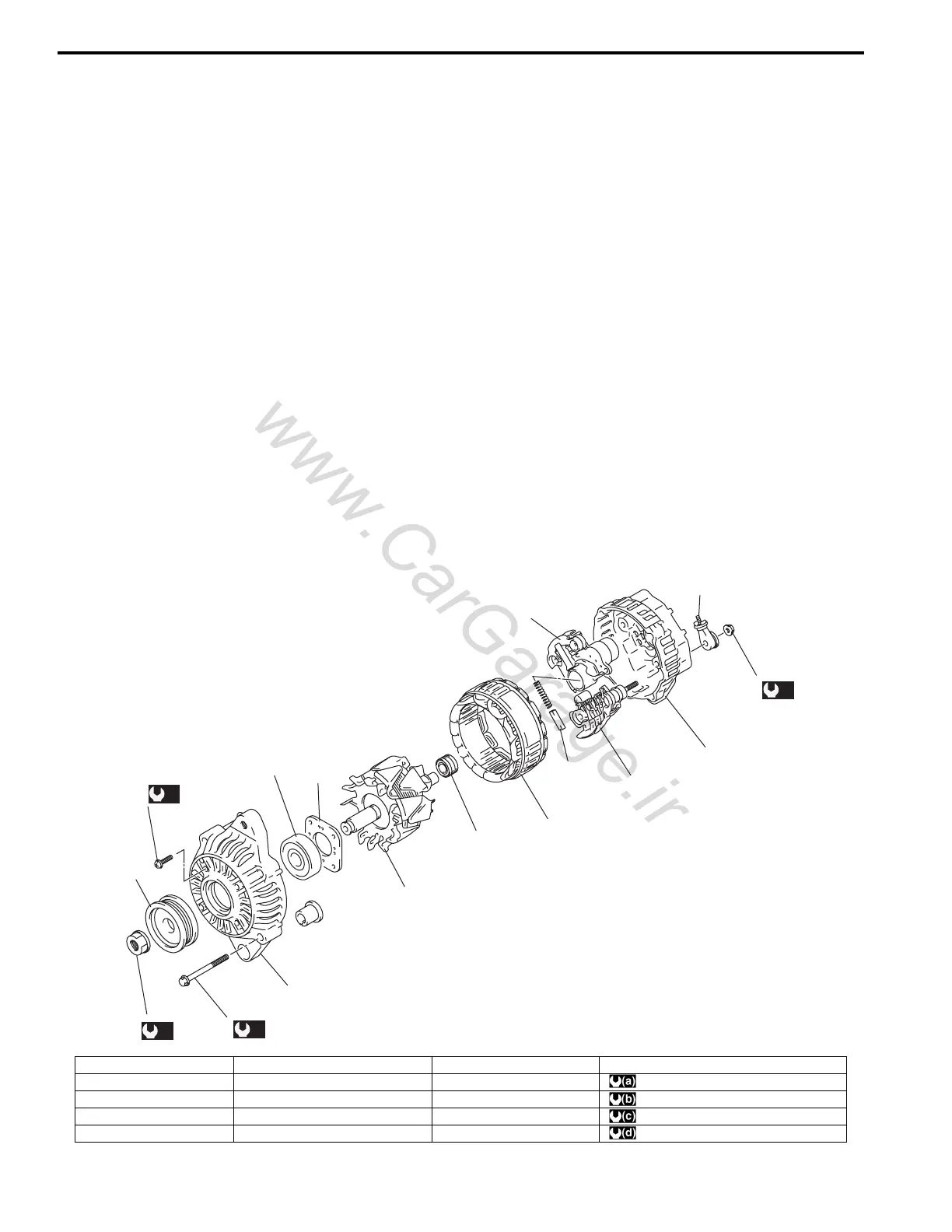

Generator Components
S5JB0A1A06007
12
11
13
14
(a)
(b)
(c)
(d)
1
2
3
4
5
6
7
8
9
10
15
16
I4RS0B1A0007-01
1. Pulley nut 6. Drive end bearing 11. Rear housing 16. “B” terminal nut
2. Pulley 7. Bearing retainer 12. Rectifier : 118 N⋅m (11.8 kgf-m, 85.5 lb-ft)
3. Front housing 8. Rotor 13. Regulator : 4.5 N⋅m (0.45 kgf-m, 3.5 lb-ft)
4. Stator 9. Rear end bearing 14. Brush : 3.5 N⋅m (0.35 kgf-m, 2.5 lb-ft)
5. Frame bolt 10. Retainer screw 15. “B” terminal : 8.0 N⋅m (0.8 kgf-m, 6.0 lb-ft)
