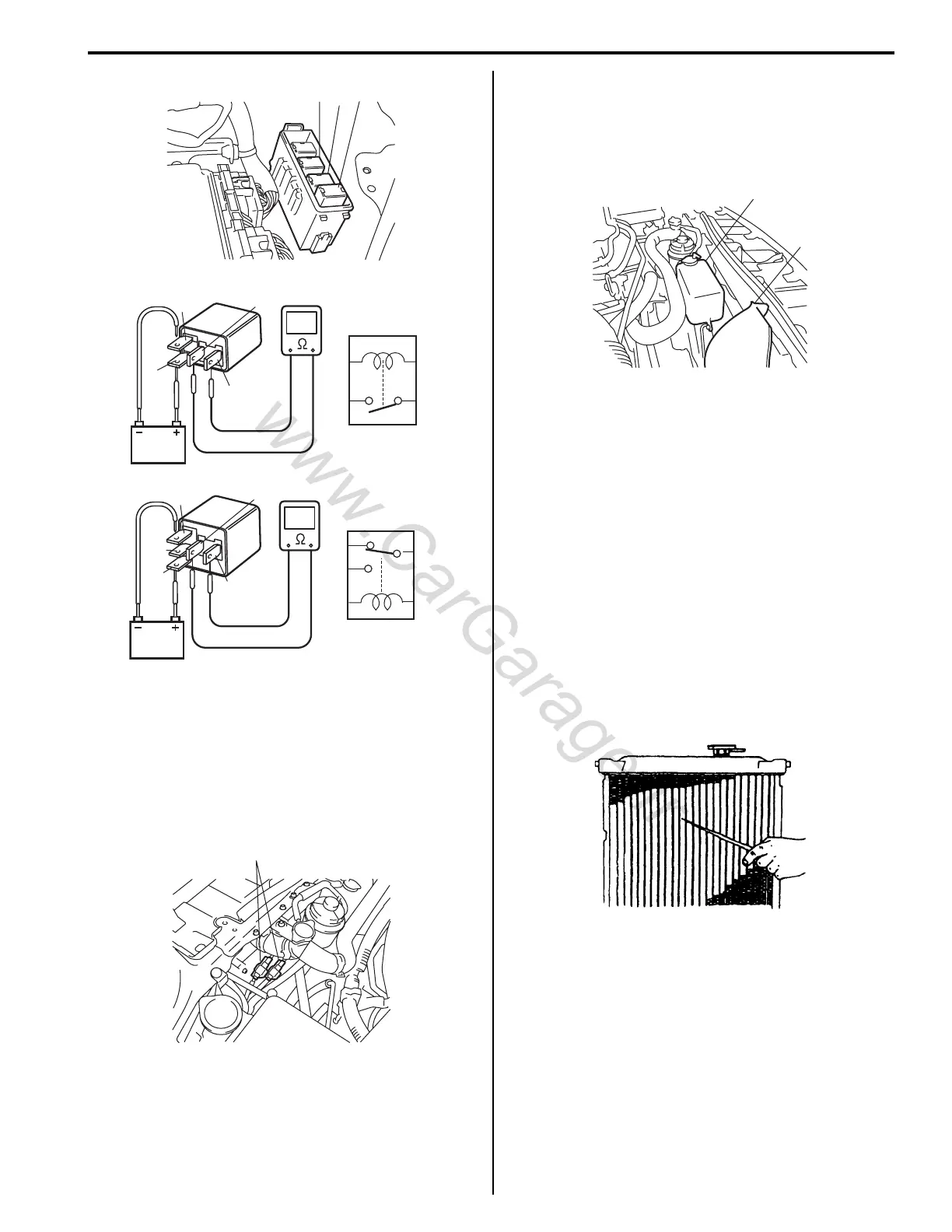

Engine Cooling System: 1F-11
Radiator Cooling Fan Assembly Removal and
Installation
S5JB0A1606021
Removal
1) Disconnect negative (–) cable at battery.
2) Disconnect connectors (1) of cooling fan motors.
3) With hose connected, detach P/S fluid reservoir with
reservoir bracket.
4) Remove air cleaner case and air cleaner suction
pipe (2).
5) Remove reservoir (1) from radiator.
6) Remove cooling fan assembly.
Installation
Reverse removal procedure for installation noting the
following.
• Refill cooling system referring to Step 7) to 17) of
“Cooling System Flush and Refill: ”.
• After installation, verify there is no coolant leakage at
each connection.
Radiator On-Vehicle Inspection and Cleaning
S5JB0A1606013
Inspection
Check radiator for leakage or damage. Straighten bent
fins, if any.
Cleaning
Clean frontal area of radiator cores.
1
2
3
“D”
“B”
“A”
“C”
“A”“B”
“D”
“C”
“H”
“F”
“E”
“G”
“I”
“F”
“E”
“H”
“I”
“G”
I5JB0A161017-01
1
I5JB0A161014-01
1
2
I5JB0A161015-01
I2RH01160014-01
