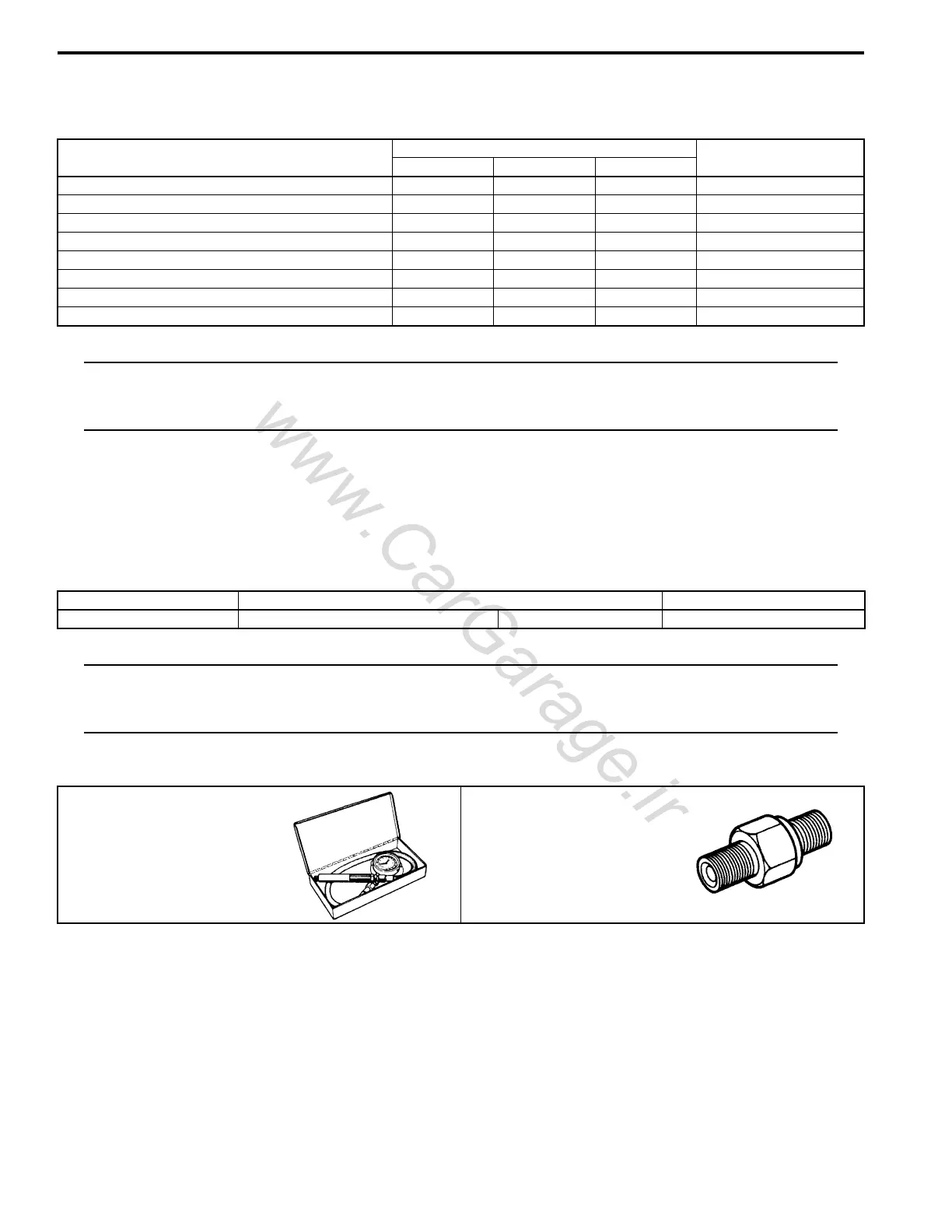

1E-10 Engine Lubrication System: For M16A Engine with VVT
Specifications
Tightening Torque Specifications
S5JB0A1517001
NOTE
The specified tightening torque is also described in the following.
“Oil Pan and Oil Pump Strainer Components: For M16A Engine with VVT”
“Oil Pump Components: For M16A Engine with VVT”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information: in Section 0A”.
Special Tools and Equipment
Recommended Service Material
S5JB0A1518001
NOTE
Required service material is also described in the following.
“Oil Pan and Oil Pump Strainer Components: For M16A Engine with VVT”
“Oil Pump Components: For M16A Engine with VVT”
Special Tool
S5JB0A1518002
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Oil pressure switch 13 1.3 9.5 )
Oil pump strainer bolt 11 1.1 8.0 )
Oil pan bolt and nut 11 1.1 8.0 )
Oil pan drain plug 35 3.5 25.5 )
Transmission to engine bolt 85 8.5 61.5 )
Clutch housing lower plate No.1 bolt 11 1.1 8.0 )
Clutch housing lower plate No.2 bolt 11 1.1 8.0 )
Oil pump rotor plate bolt 11 1.1 8.0 )
Material SUZUKI recommended product or Specification Note
Sealant SUZUKI Bond No.1217G P/No.: 99000–31260 )
09915–77310 09915–78211
Oil pressure gauge (0-10kg/
cm2)
Oil pressure gauge
attachment
))
