1D-18 Engine Mechanical: For M16A Engine with VVT

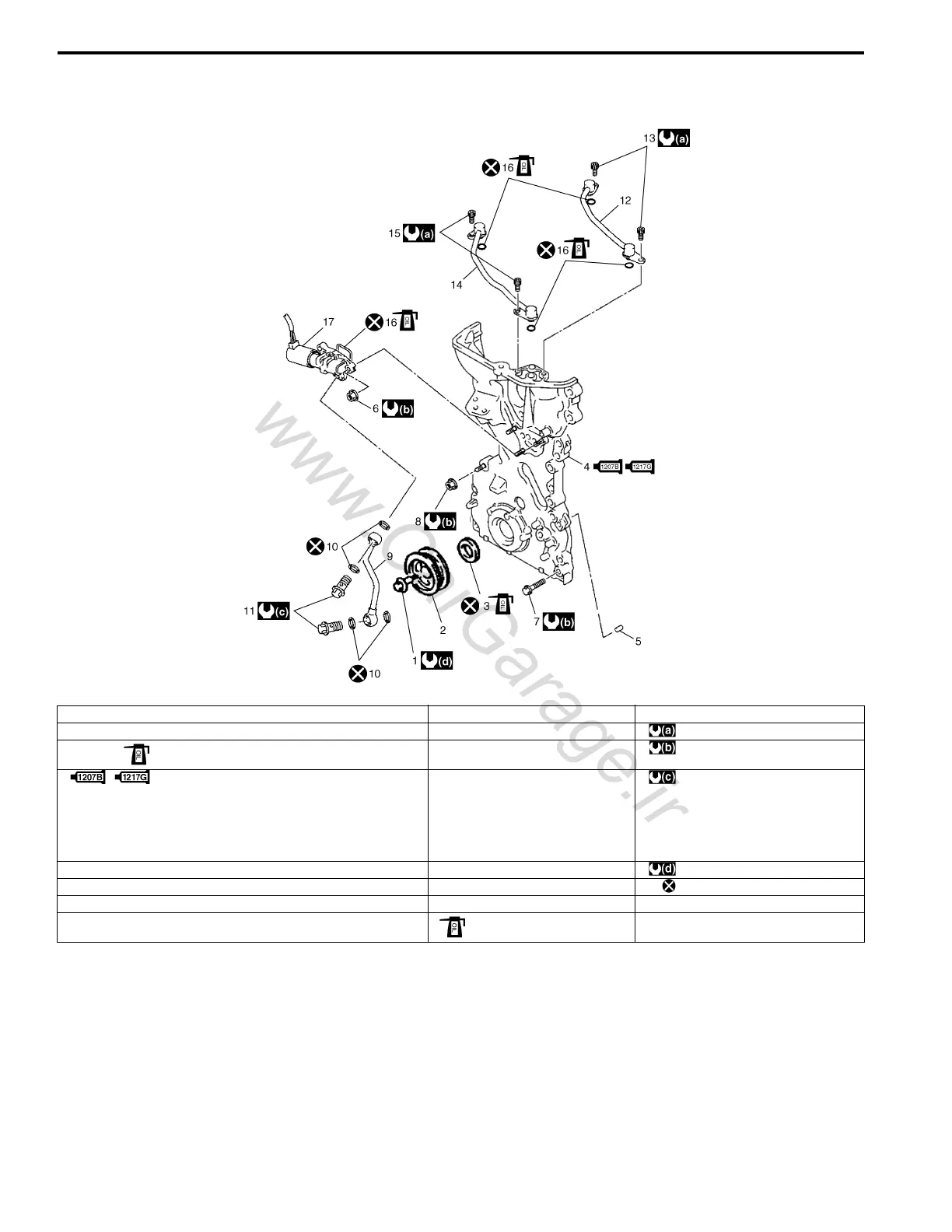

Timing Chain Cover Components
S5JB0A1416014
I5JB0A141020-01
1. Crankshaft pulley bolt 9. Oil gallery pipe No.1 17. Oil control valve
2. Crankshaft pulley 10. Copper washer : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
3. Oil seal
: Apply engine oil to oil seal lip.
11. Oil gallery pipe No.1 bolt : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
4. Timing chain cover
: Apply sealant 99000-31140 to the mating surface
of cylinder and cylinder head.
: Apply sealant 99000-31260 to the mating surface
of timing chain cover referring to the figure of Step 5)
of “Installation” under “Timing Chain Cover Removal
and Installation: For M16A Engine with VVT”.
12. Oil gallery pipe No.2 : 30 N⋅m (3.0 kgf-m, 22.0 lb-ft)
5. Pin 13. Oil gallery pipe No.2 bolt : 150 N⋅m (15.0 kgf-m, 108.5 lb-ft)
6. Oil control valve mounting nut 14. Oil gallery pipe No.3 : Do not reuse.
7. Timing chain cover mounting bolts 15. Oil gallery pipe No.3 bolt
8. Timing chain cover mounting nut 16. O-ring
: Apply engine oil.
To Next Page
