1I-6 Starting System:
Starting Motor Components
S5JB0A1906005

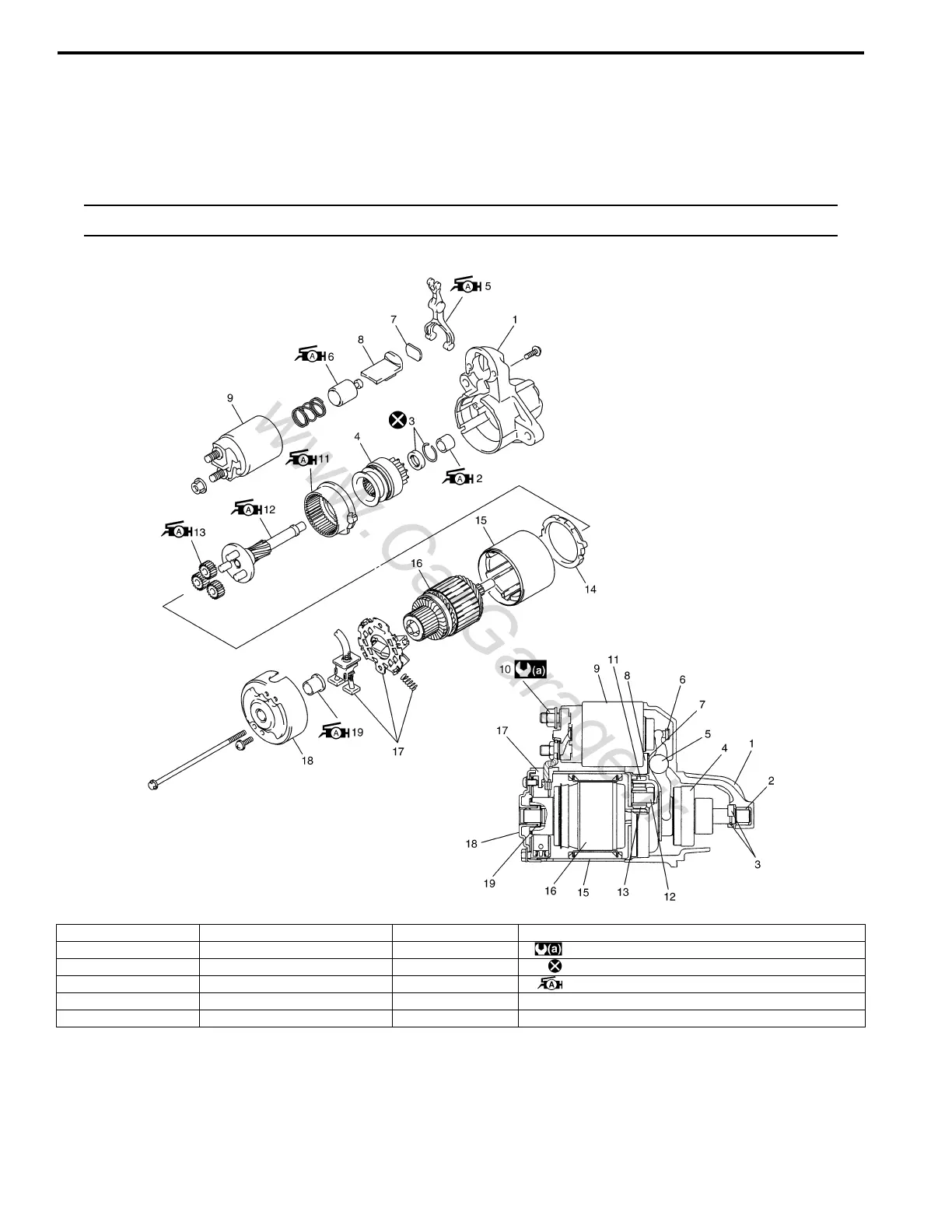

The starting motor consists of parts shown in below and has permanent magnets mounted in starting motor yoke
(frame).
The magnetic switch assembly and parts in the starting motor are enclosed in the housings so that they will be
protected against possible dirt and water splash.
NOTE
Spare parts have been lubricated.
I5JB0A190002-01
1. Front housing 7. Plate 13. Planetary gear 19. Rear bush
2. Bush 8. Seal rubber 14. Packing : 11 Nâ‹…m (1.1 kgf-m, 8.0 lb-ft)
3. Pinion stop ring 9. Magnetic switch 15. Yoke : Do not reuse.
4. Over-running clutch 10. Starting motor battery cable nut 16. Armature : Apply grease 99000-25010 to sliding surface of each part.
5. Lever 11. Internal gear 17. Brush assembly
6. Plunger 12. Planetary carrier shaft 18. Rear bracket
To Next Page
