Suzuki GRAND VITARA Service Manual

Starting System: 1I-5
Repair Instructions
Starting Motor Dismounting and Remounting
S5JB0A1906001
Dismounting
1) Disconnect negative (–) battery lead at battery.
2) Hoist vehicle
3) Disconnect magnetic switch lead wire (1) and battery cable (2) from starting motor terminals.
4) Remove starting motor mount bolts (3).
5) Remove starting motor (4).
Remounting
Reverse the dismounting procedure noting the following.
• Tighten battery cable nut (5) to specified torque.
Tightening torque
Starting motor battery cable nut (a): 11 N·m (1.1 kgf-m, 8.0 lb-ft)

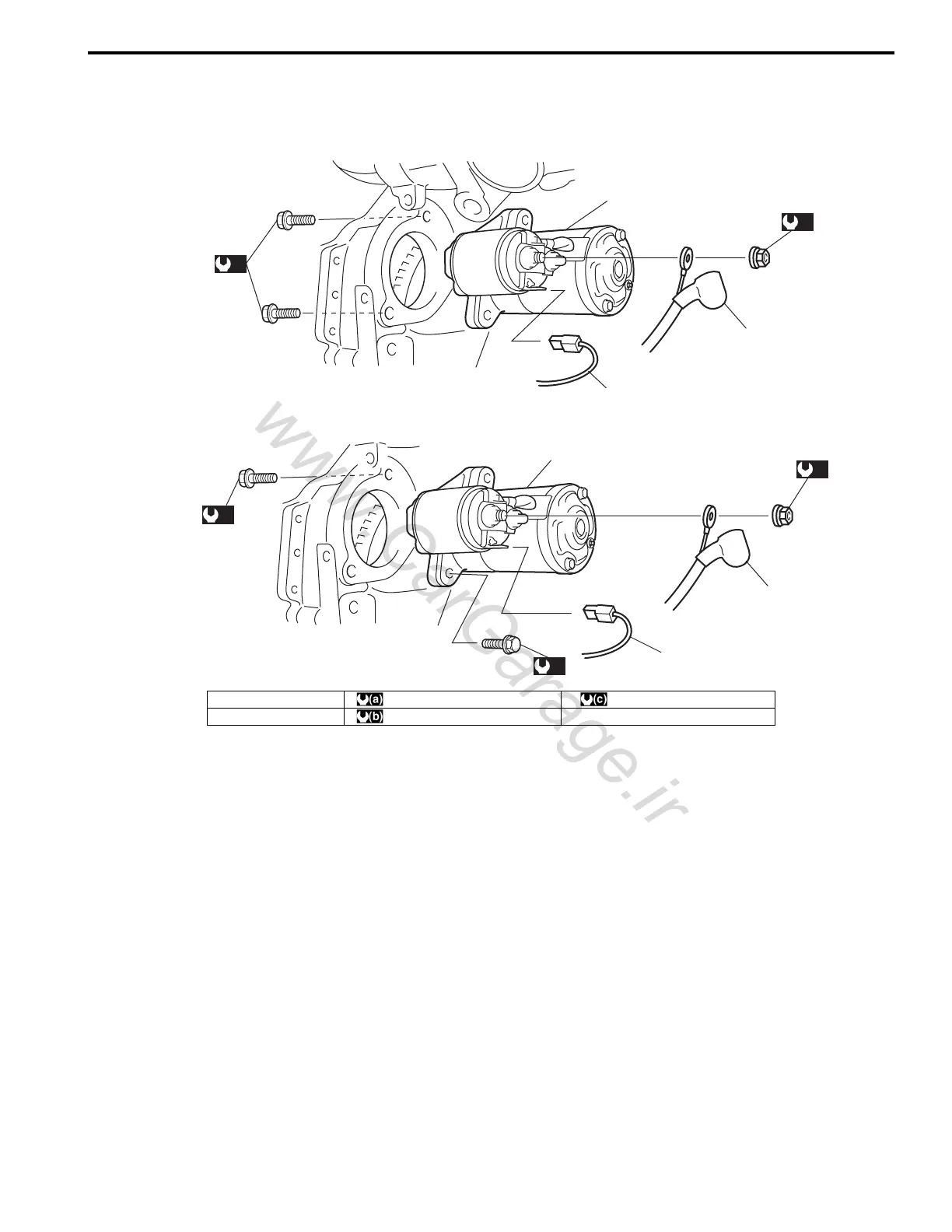

(a)
(c)
(a)
(b)
(b)
[A]
[B]
3
3
4
5
4
5
2
1
3
1
2
I5JB0A190001-02
[A]: For M16 Engine : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft) : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
[B]: For J20 Engine : 25 N⋅m (2.5 kgf-m, 18.5 lb-ft)
