Engine Lubrication System: For J20 Engine 1E-19

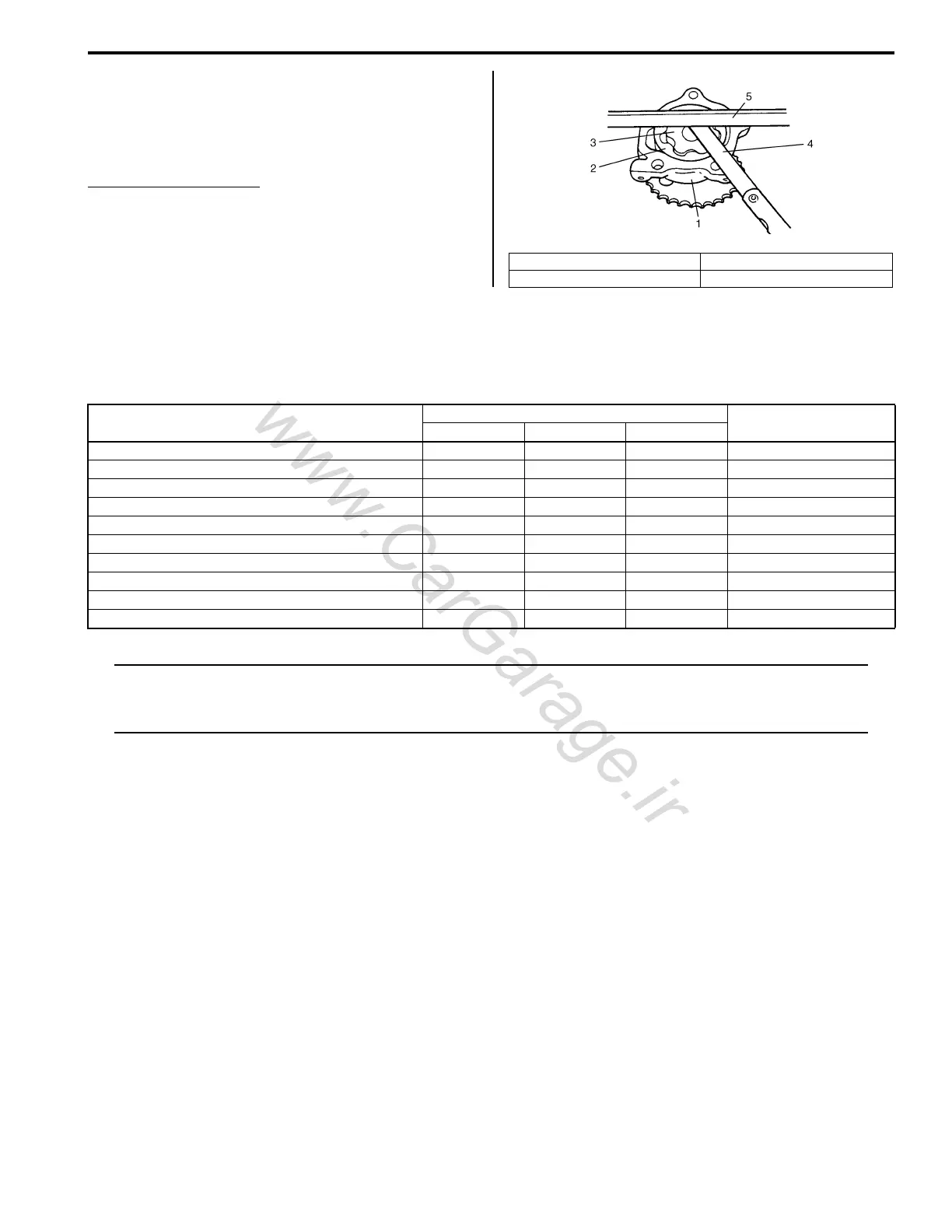

Side Clearance
Using straightedge (5) and thickness gauge (4),
measure side clearance.
If side clearance exceeds its limit, replace oil pump
assembly.
Limit on side clearance
0.11 mm (0.0043 in.)
Specifications
Tightening Torque Specifications
S5JB0A1527001
NOTE
The specified tightening torque is also described in the following.
“Oil Pan and Oil Pump Strainer Components: For J20 Engine”
“Oil Pump Components: For J20 Engine”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information: in Section 0A”.
1. Oil pump case No.1 3. Inner rotor
2. Outer rotor
I2RH01150025-01
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Oil pressure switch 13 1.3 9.5 )
Oil pump strainer bolt 11 1.1 8.0 )
Oil pan bolt and nut 11 1.1 8.0 )
Transmission case No.1 bolt 85 8.5 61.5 )
Oil drain plug 35 3.5 25.5 )
Oil pump mounting bolt (M8 bolt) 25 2.5 18.0 )
Baffle plate bolt (M6 bolt) 11 1.1 8.0 )
Oil pump chain guide nut 11 1.1 8.0 )
Oil pump relief valve retainer 28 2.8 20.5 )
Oil pump case bolt 12 1.2 9.0 )
