3-98 ENGINE
PAIR (AIR SUPPLY) SYSTEM
PAIR SYSTEM REMOVAL

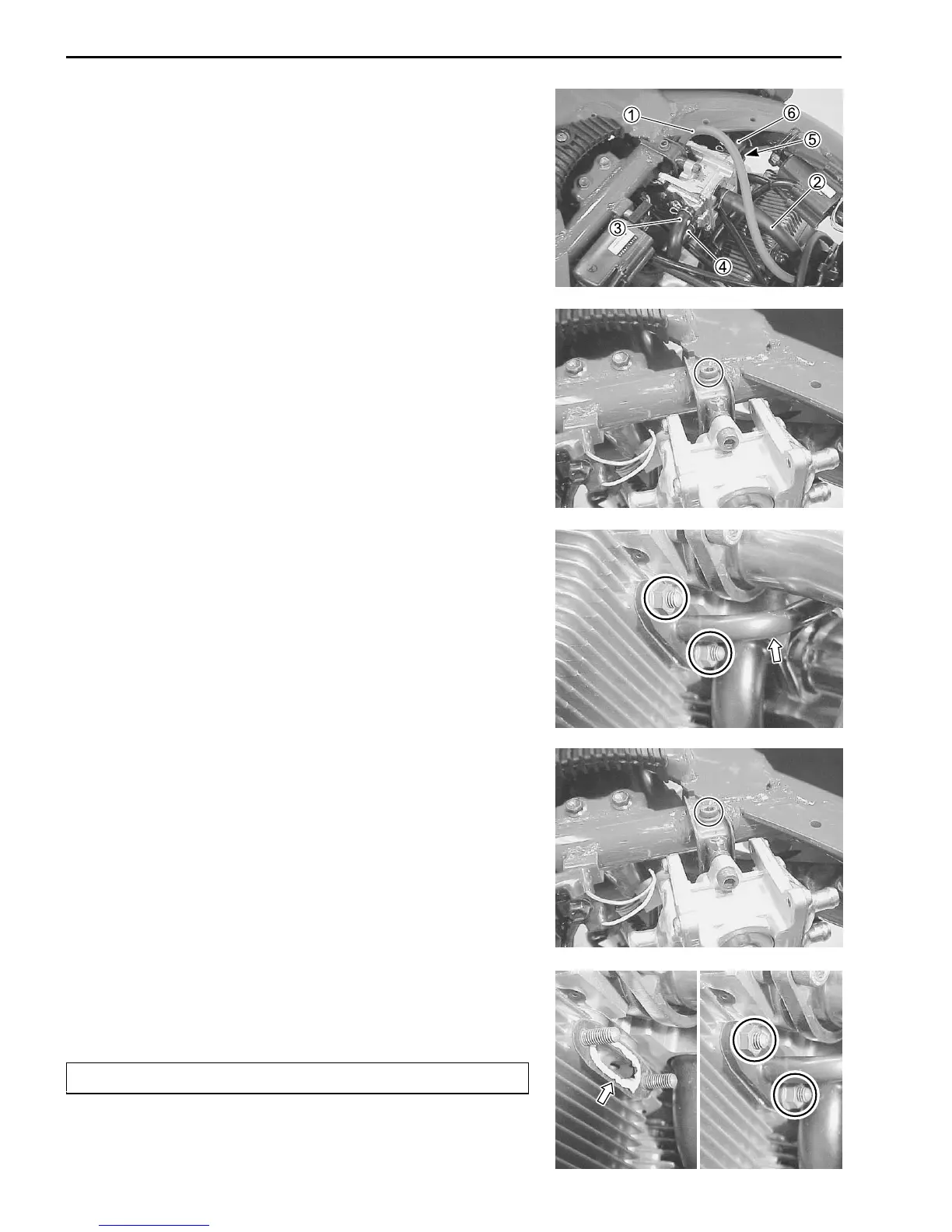

• Remove the fuel tank. ($4-3)
• Disconnect all of the PAIR valve hoses.
1 Vacuum hose
2 Air cleaner hose
3 PAIR hose No. 1
4 PAIR hose No. 2
5 PAIR hose No. 3
6 PAIR hose No. 4
• Remove the PAIR valve.
• Remove the PAIR pipes from each cylinder.
PAIR SYSTEM INSTALLATION
Installation is in the reverse order of removal. ($3-100)
• Tighten the PAIR valve mounting bolt to the specified torque.
% PAIR valve mounting bolt: 10 N
.
m (1.0 kgf
.
m, 7.0 lb-ft)
• Tighten the PAIR pipe mounting nuts to the specified torque.
% PAIR pipe mounting nut: 10 N
.
m (1.0 kgf
.
m, 7.0 lb-ft)
!
Use a new gasket to prevent exhaust gas leakage.
