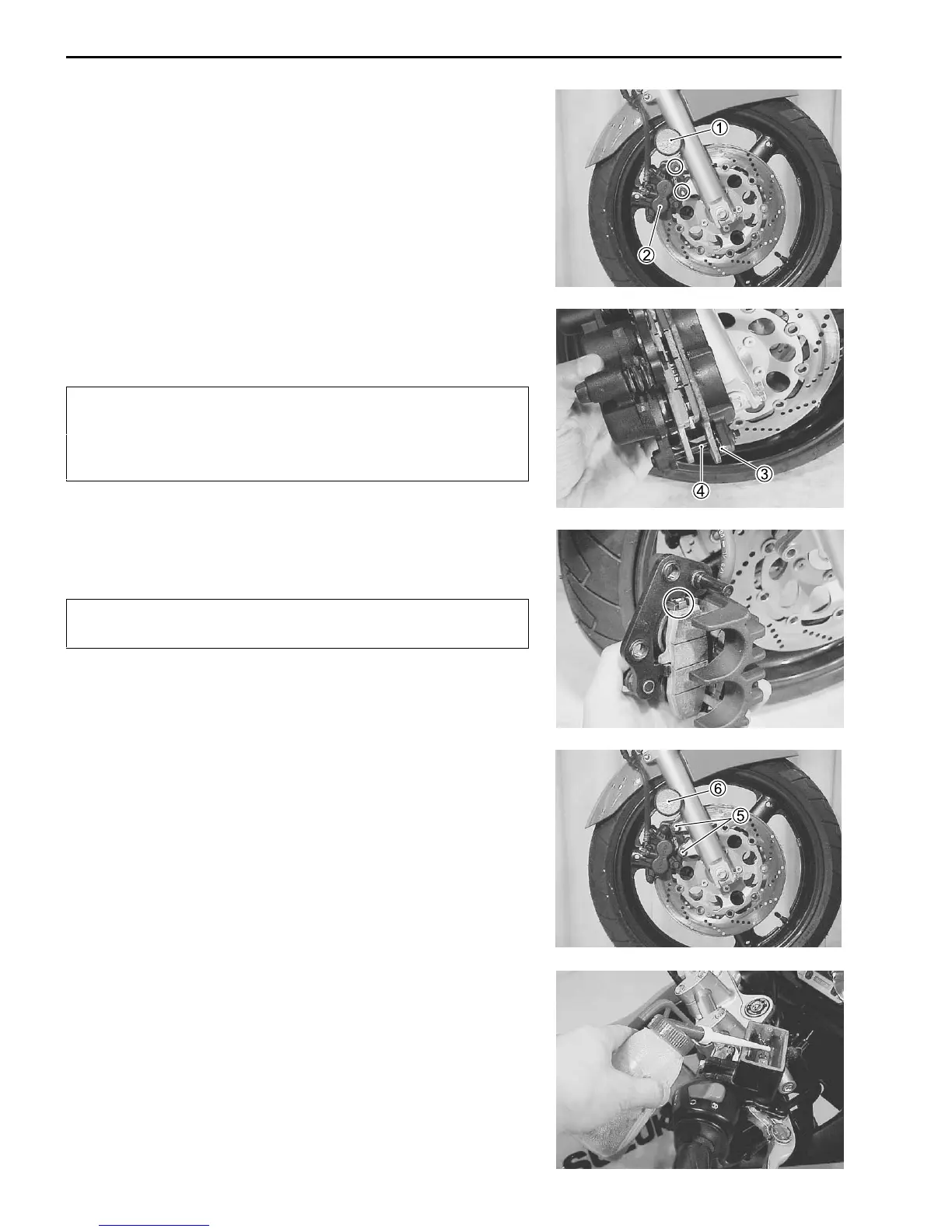

5-42 CHASSIS
BRAKE PAD REPLACEMENT
• Remove the reflector 1. (For E-03, E-28, E-33)
• Remove the brake caliper 2.
• Remove the brake pads by removing the clip 3 and brake pad
mounting pin 4.
#
* Do not operate the brake lever during or after brake
pad removal.
* Replace the brake pads as a set, otherwise braking
performance will be adversely affected.
• Install the new brake pads.
'
Make sure that the brake pad is properly engaged with
the guide plate as shown in the photograph.
• Remount the reflector 6. (For E-03, E-28, E-33)
• Tighten the brake caliper mounting bolts 5 to the specified
torque.
" Brake caliper mounting bolt: 39 N
.
m (3.9 kgf
.
m, 28.0 lb-ft)
NOTE:
After replacing the brake pads, pump the brake lever a few times
to check for proper brake operation and then check the brake
fluid level.
BRAKE FLUID REPLACEMENT
• Place the motorcycle on a level surface and keep the handlebar
straight.
• Remove the master cylinder reservoir cap and diaphragm.
• Suck up the old brake fluid as much as possible.
• Fill the reservoir with new brake fluid.
++
++
+ Specification and classification: DOT 4
To Next Page
