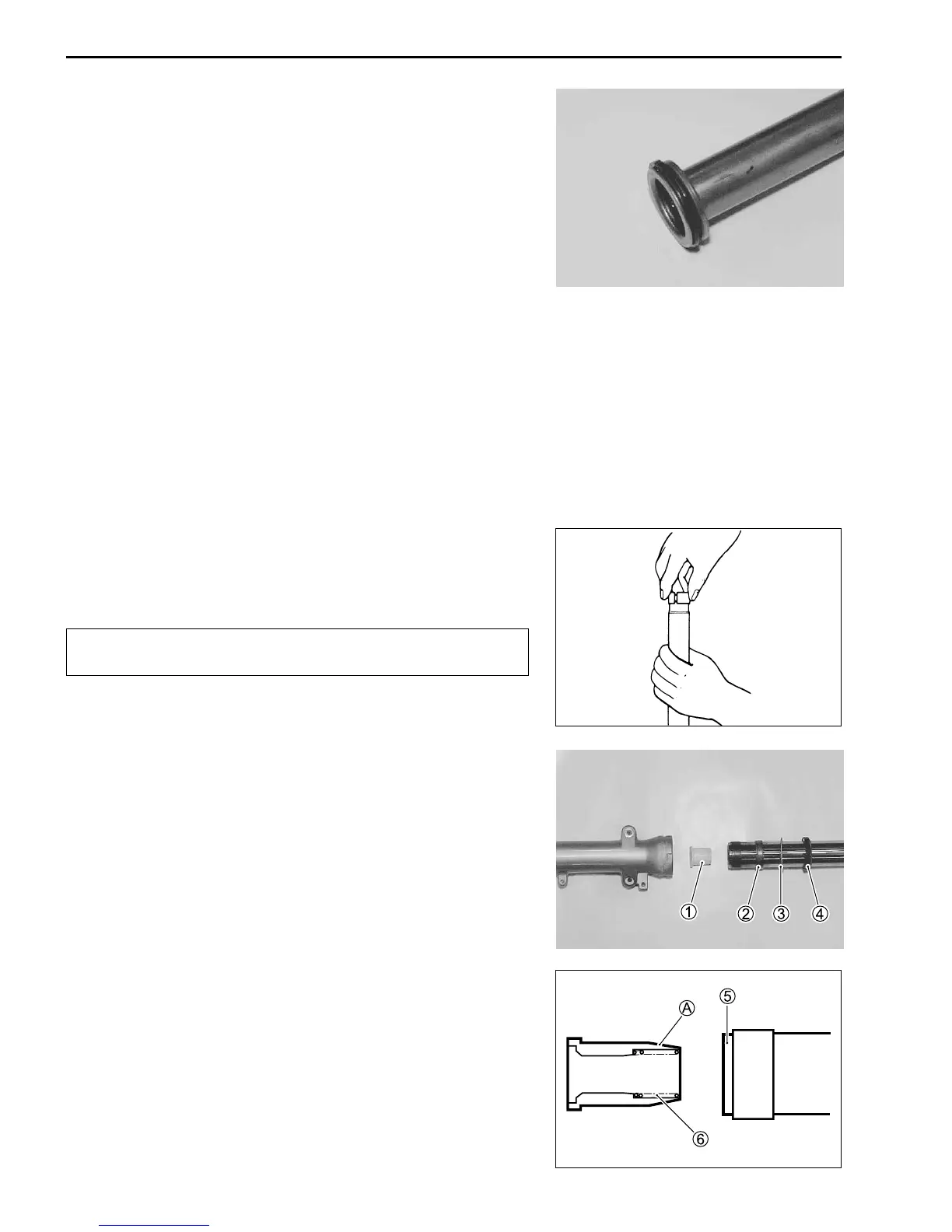

5-16 CHASSIS
CYLINDER RING
Inspect the cylinder ring for wear or damage. If it is worn or
damaged, replace it with a new one.
REASSEMBLY AND REMOUNTING
Reassemble and remount the front fork in the reverse order of
removal and disassembly. Pay attention to the following points:
SLIDE METALS AND OIL SEAL
• Hold the inner tube vertically, clean the metal groove and
install the inner tube slide metal by hand.
#
Do not damage the Teflon coated surface of the inner
tube’s slide metal when mounting it.
• Install the oil lock piece 1, outer tube slide metal 2, oil seal
retainer 3 and oil seal 4 onto the inner tube.
NOTE:
When installing the oil lock piece, insert the tapered end
A
of the
oil lock piece into the inner tube
5
.
Check the installation of the spring
6
when reassemble the oil
lock piece.
