3-12 ENGINE
ENGINE DISASSEMBLY AND
REASSEMBLY
$

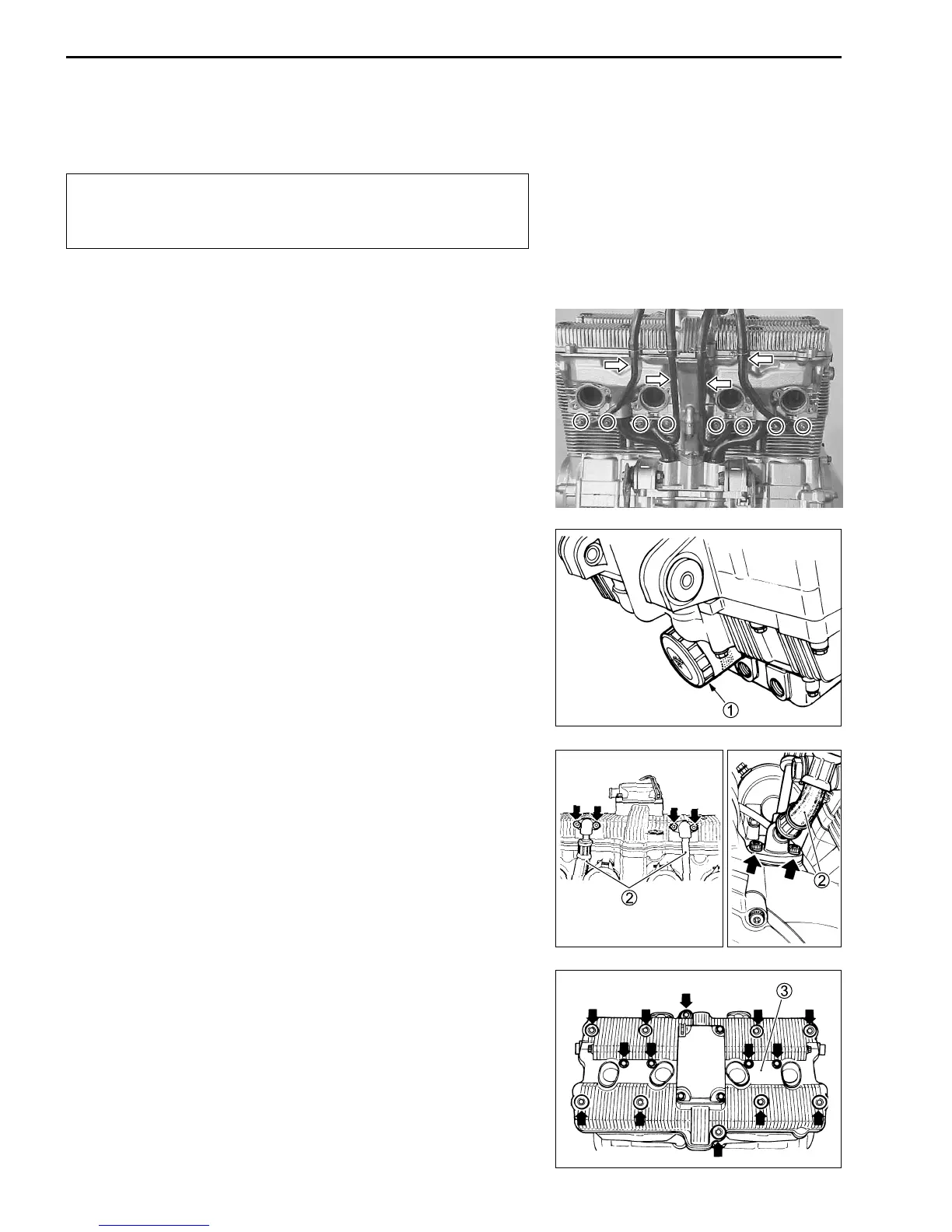

Identify the position of each removed part. Organize the
parts in their respective groups (e.g., intake, exhaust) so
that they can be reinstalled in their original positions.
ENGINE DISASSEMBLY
• Remove each PAIR valve pipe and hose.
• Remove the oil filter 1 using the special tool.
( 09915-40610: Oil filter wrench
NOTE:
Refer to page 2-10 for installation procedures.
• Remove the left and right oil hoses 2.
( 09911-73730: 5 mm “T” type hexagon wrench
• Remove the cylinder head cover 3.
( 09914-25811: 6 mm “T” type hexagon wrench
