PAIR (AIR SUPPLY) SYSTEM
Inspect every 12 000 km (7 500 miles, 12 months).
($3-98)
CLUTCH CABLE PLAY
Inspect every 6 000 km (4 000 miles, 6 months).

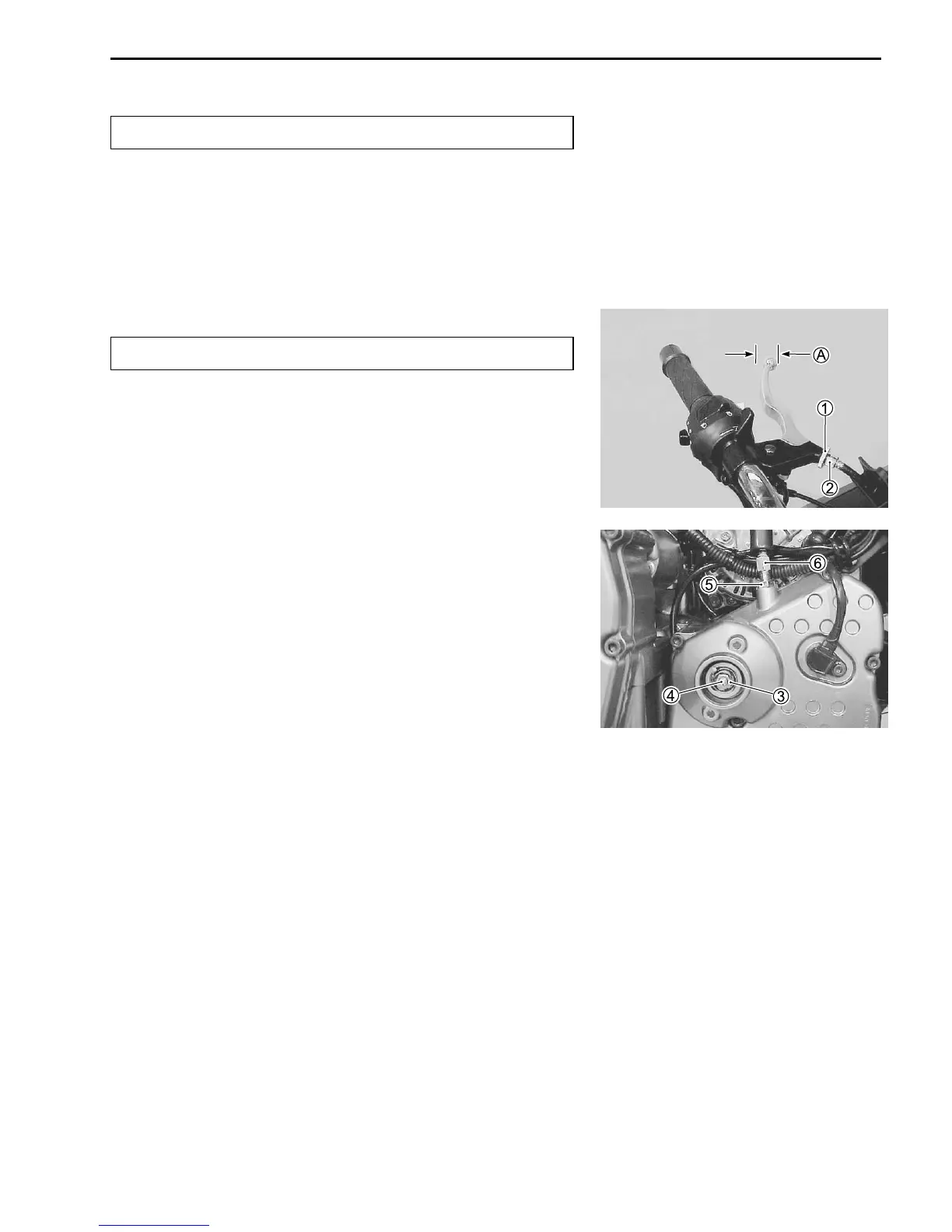

• Loosen the locknut 1 and turn the adjuster 2 all the way into
the clutch lever assembly.
• Remove the clutch release cover.
• Loosen the locknut 3, and turn out the adjusting screw 4 two
or three rotations.
• Then, slowly turn in the adjusting screw 4 until resistance is
felt.
• Then, turn out the adjusting screw 4 ¼ of a turn, and tighten
the locknut 3.
• Loosen the locknut 5, and turn the cable adjuster 6 to obtain
10 – 15 mm (0.4 – 0.6 in) of free play A at the clutch lever end.
• Tighten the locknut 5.
% Clutch cable play A: 10 – 15 mm (0.4 – 0.6 in)
