ELECTRICAL SYSTEM 6-33

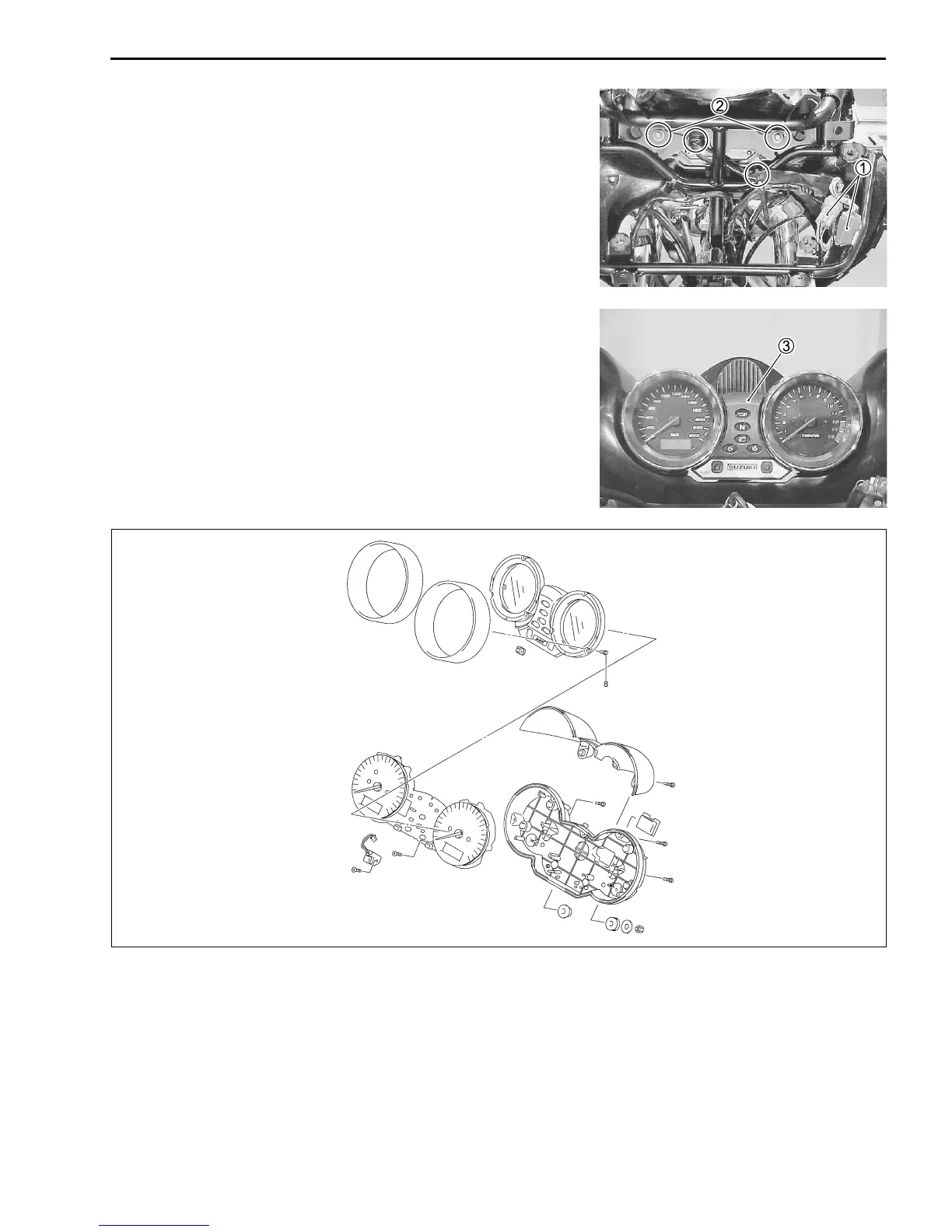

COMBINATION METER
REMOVAL
• Remove the cowling. (!5-3)
• Remove the headlight assy. (!5-4)
• Disconnect the combination meter coupler 1 and clamps.
• Remove the combination meter mounting nuts 2.
• Remove the combination meter 3.
DISASSEMBLY
• Disassemble the combination meter as follows.
INSPECTION
Measure the continuity between the lead wires in the diagram on
the next page using a tester.
If there is no continuity, replace the combination meter assy.
NOTE:
When performing this test, it is not necessary to remove the com-
bination meter.
To Next Page
