FUEL SYSTEM 4-7

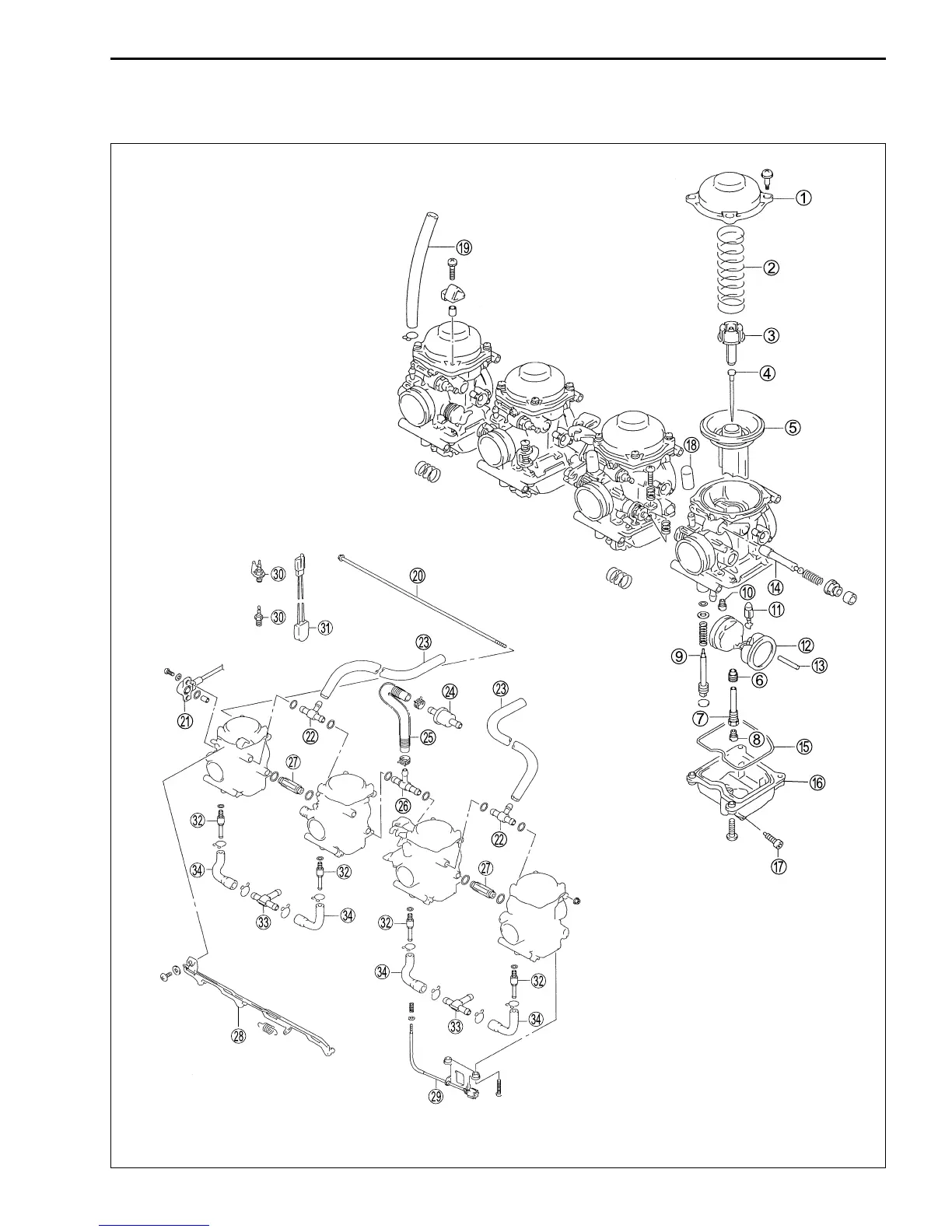

CARBURETOR
CONSTRUCTION
1 Top cap
2 Spring
3 Jet needle stopper
4 Jet needle
5 Diaphragm/Piston valve
6 Needle jet
7 Needle jet holder
8 Main jet
9 Pilot screw
0 Pilot jet
A Needle valve assy
B Float
C Float pin
D Starter (enricher) plunger
E Gasket (O-ring)
F Float chamber
G Drain screw
H Vacuum inlet cap
I Vacuum hose (for fuel valve)
J Carburetor set shaft (Upper and Lower)
K TPS (Throttle position sensor)
L Air vent joint pipe
M Air vent hose
N Fuel filter
O Fuel hose
P Fuel joint pipe No. 1
Q Fuel joint pipe No. 2
R Starter (enricher) plate
S Throttle stop screw
T Carburetor heater (For E-02)
U Thermo-switch (For E-02)
V Purge hose inlet pipe (For E-33)
W Purge hose joint pipe (For E-33)
X Purge hose (For E-33)
