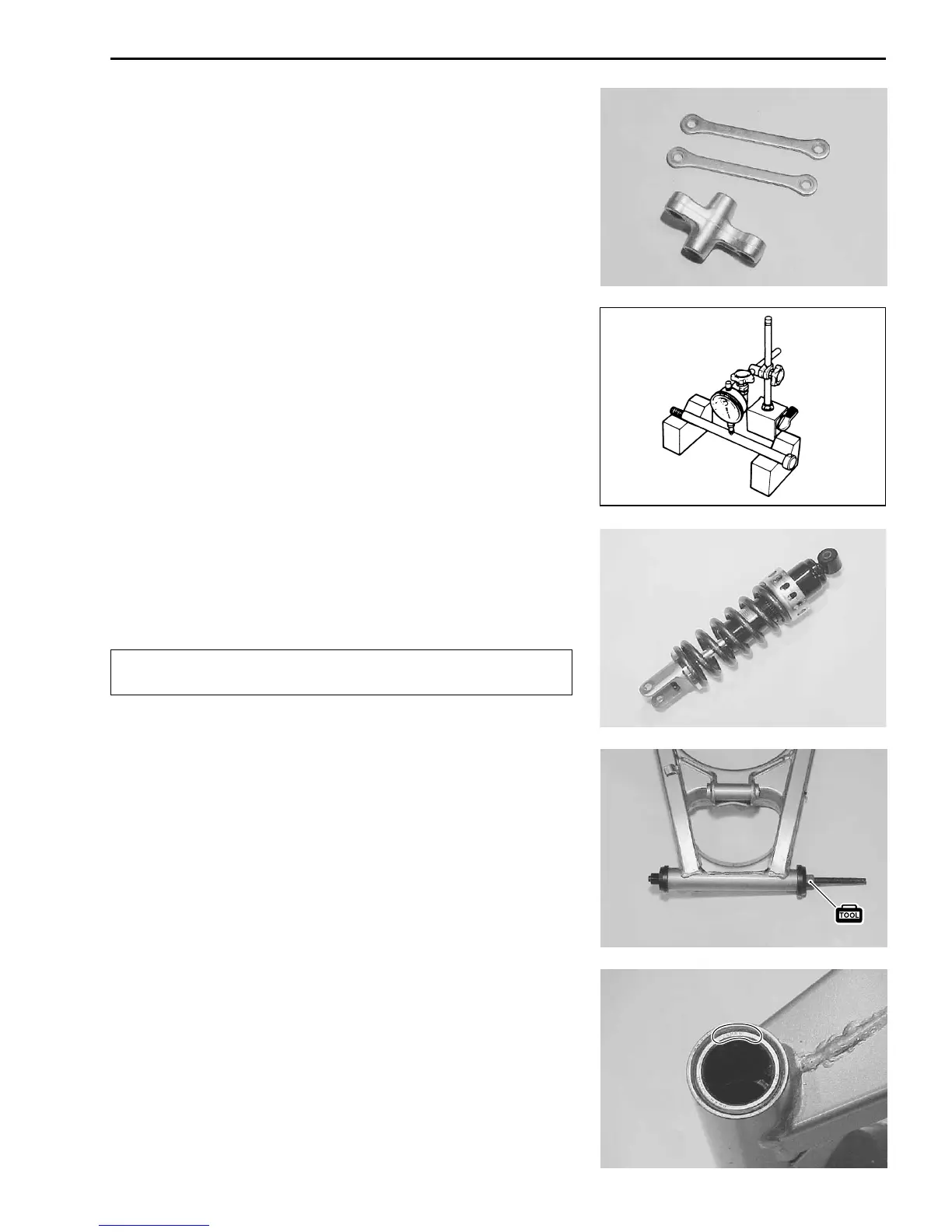

CHASSIS 5-37
PIVOT SHAFT
Measure the pivot shaft runout using the dial gauge. If the runout
exceeds the service limit, replace the pivot shaft.
% 09900-20606: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
$ Swingarm pivot shaft runout
Service Limit: 0.3 mm (0.01 in)
REAR SHOCK ABSORBER
Inspect the rear shock absorber for damage and oil leakage. If
any defects are found, replace the rear shock absorber with a
new one.
#
Do not attempt to disassemble the rear shock absorber.
It is unserviceable.
REASSEMBLY
SWINGARM NEEDLE BEARINGS
• Before installing the needle bearings, install the spacer.
• Press the needle bearings into the swingarm pivot using the
special tool.
% 09941-34513: Steering outer race installer
NOTE:
Install the needle bearings with the stamped mark facing out.
• Apply SUZUKI SUPER GREASE “A” to the spacers, dust seals
and needle bearings.
For USA
& 99000-25030: SUZUKI SUPER GREASE “A”
For the other countries
& 99000-25010: SUZUKI SUPER GREASE “A”
CUSHION LEVER AND CUSHION LEVER RODS
Inspect the cushion lever and cushion lever rods for damage.
To Next Page
