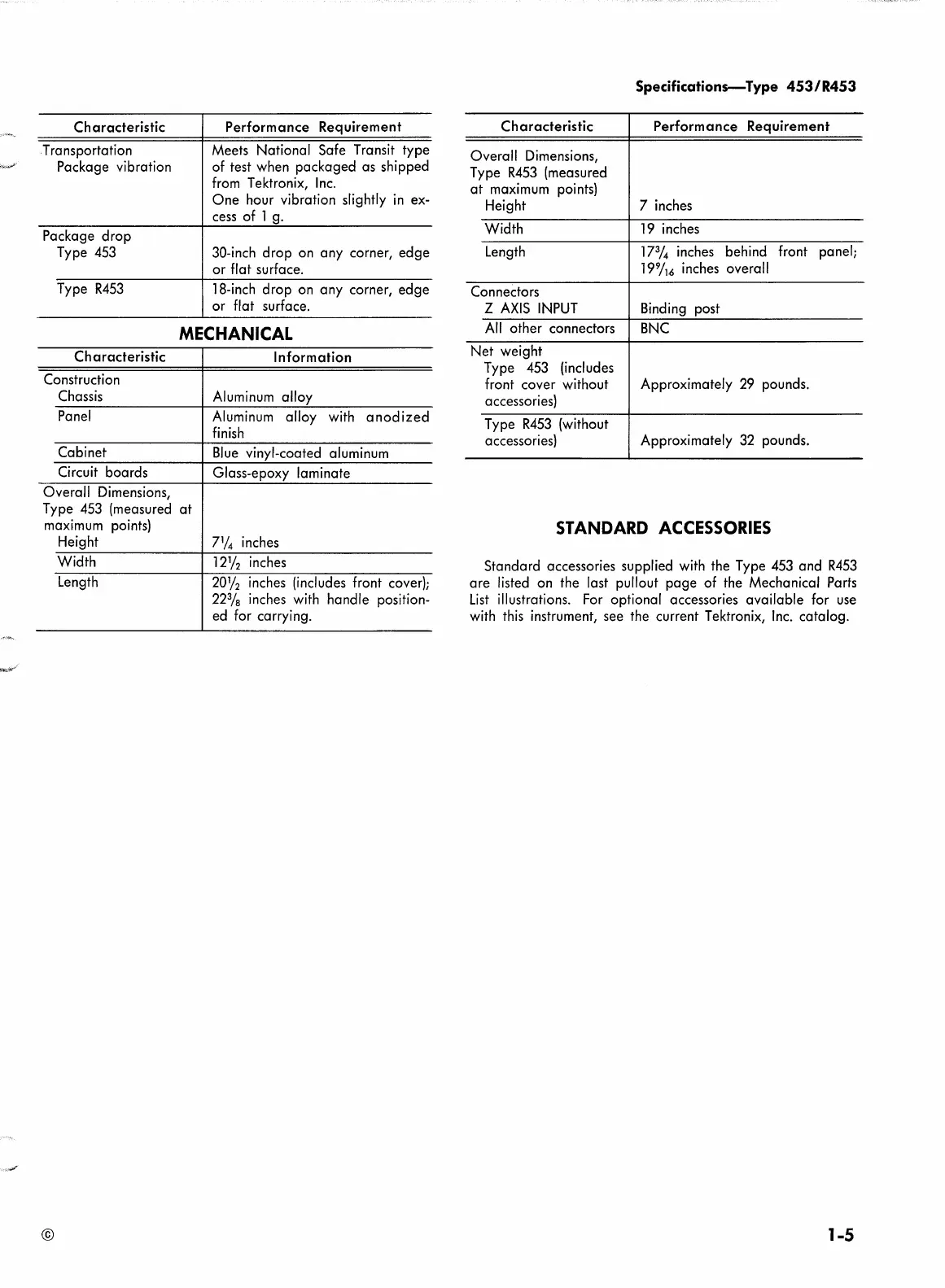

Tektronix 453 User Manual

Characteristic
Transportation
Package vibration
Package drop
Type
453
Type R453
Characteristic
Construction
Chassis
Panel
Cabinet
Circuit boards
Overall Dimensions,
Type
453 (measured
maximum points)
Height
Width
Length
©
Performance Requirement
Meets National Safe Transit type
of test when packaged as shipped
from Tektronix, Inc.
One hour vibration slightly in ex-
cess of 1
g.
30-inch drop on any corner, edge
or flat surface.
18-inch drop on any corner, edge
or flat surface.
MECHANICAL
Information
Aluminum alloy
Aluminum
alloy with anodized
finish
Blue vinyl-coated aluminum
Glass-epoxy laminate
at
7
1
/
4
inches
12
1
/2
inches
20
1
/
2
inches (includes front cover);
22% inches
with handle position-
ed for carrying.
Specifications-Type 453 / R453
Characteristic Performance Requirement
Overall Dimensions,
Type
R453 (measured
at maximum points)
Height
7 inches
Width
19 inches
Length
17% inches
behind front
panel;
19
9
/
16
inches overall
Connectors
Z
AXIS INPUT Binding
post
All other connectors
BNC
Net weight
Type
453
(includes
front cover without Approximately
29 pounds.
accessories)
Type
R453 (without
accessories)
Approximately 32 pounds.
STANDARD ACCESSORIES
Standard accessories supplied with the Type 453 and R453
are listed on the last pullout page of the Mechanical Parts
List illustrations. For optional accessories available for use
with this instrument, see the current Tektronix, Inc. catalog.
1-5
