Adjustment Procedures
5-10 AFG3000 Series Arbitrary/Function Generators Service Manual
Trigger Delay Adjustment
This procedure adjusts trigger timing of two channels. This adjustment is not
necessary in the AFG3011, AFG3021B, AFG3101, and AFG3251.

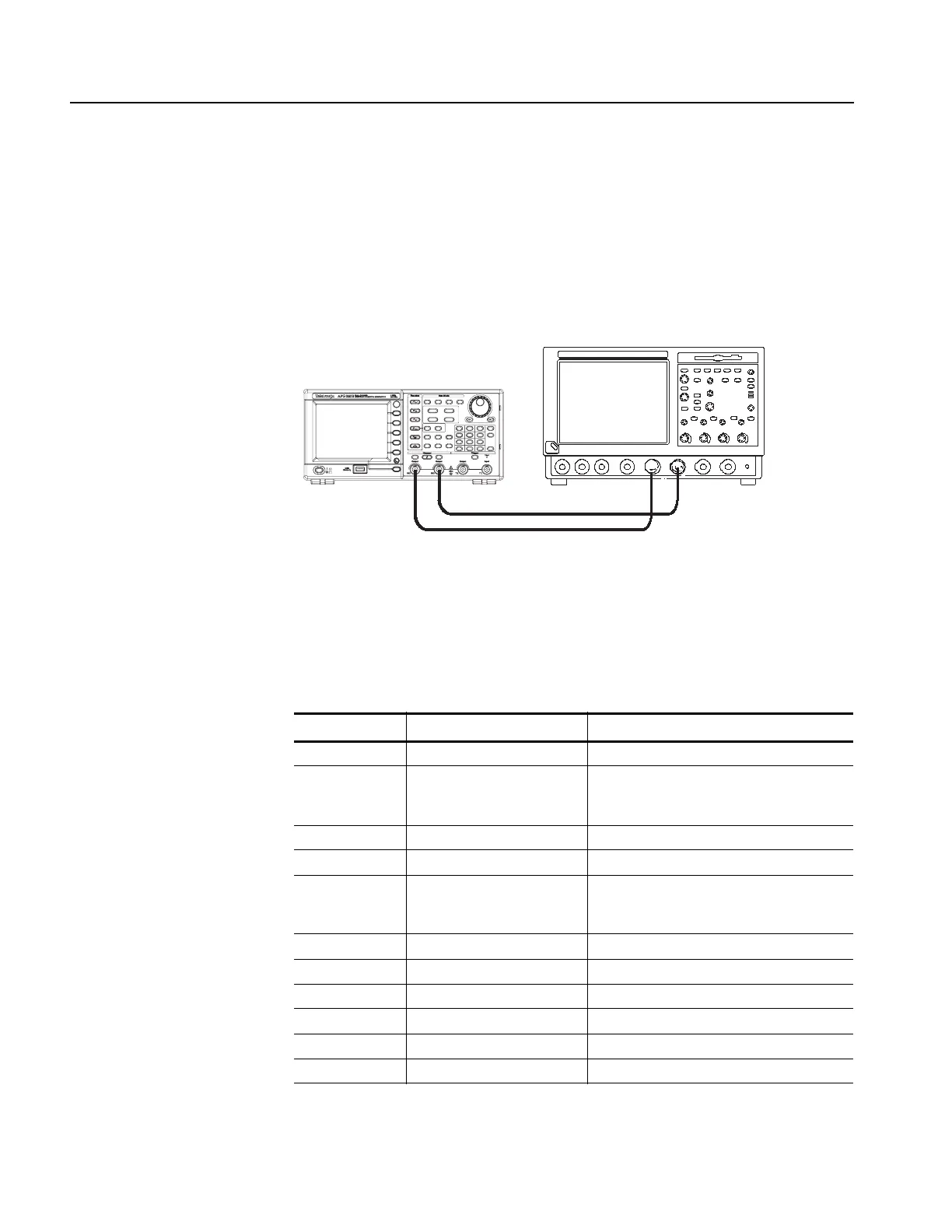

1. Connect the arbitrary/function generator to the oscilloscope as shown in
Figure 5-5.
Figure 5-5: Trigger delay adjustment
2. Push the Default front-panel button and OK menu button to recall the
arbitrary/function generator default setup.
3. Set up the arbitrary/function generator using the following steps:
Select menu Setting Operation
Function (CH1) Pulse Pulse (front)
Leading (CH1) AFG3022B: 18 ns
AFG3102: 5 ns
AFG3252: 2.5 ns
Pulse Parameter Menu (menu) > Leading
Edge
Delay (CH1) 0.00 ns Delay (front)
Function (CH2) Pulse CH1/CH2 > Pulse (front)
Leading (CH2) AFG3022B: 18 ns
AFG3102: 5 ns
AFG3252: 2.5 ns
Pulse Parameter Menu (menu) > Leading
Edge
Delay (CH2) 0.00 ns Delay (front)
Run Mode (CH2) Burst Burst (front)
Trigger Delay 0.0 ns more (menu) > Delay
Run Mode (CH2) Continuous Continuous (front)
Channel 1 Output On On (front)
Channel 2 Output On On (front)
Oscilloscope
50 Ω BNC coaxial cables
CH1 Output
AFG3000 series
CH1 Input
CH2 Output
CH2 Input
To Next Page
