Operating Basics
AFG3000 Series Arbitrary/Function Generators Service Manual 2-3
Protect Your Instrument from Misuse
Check Input and Output
Connectors

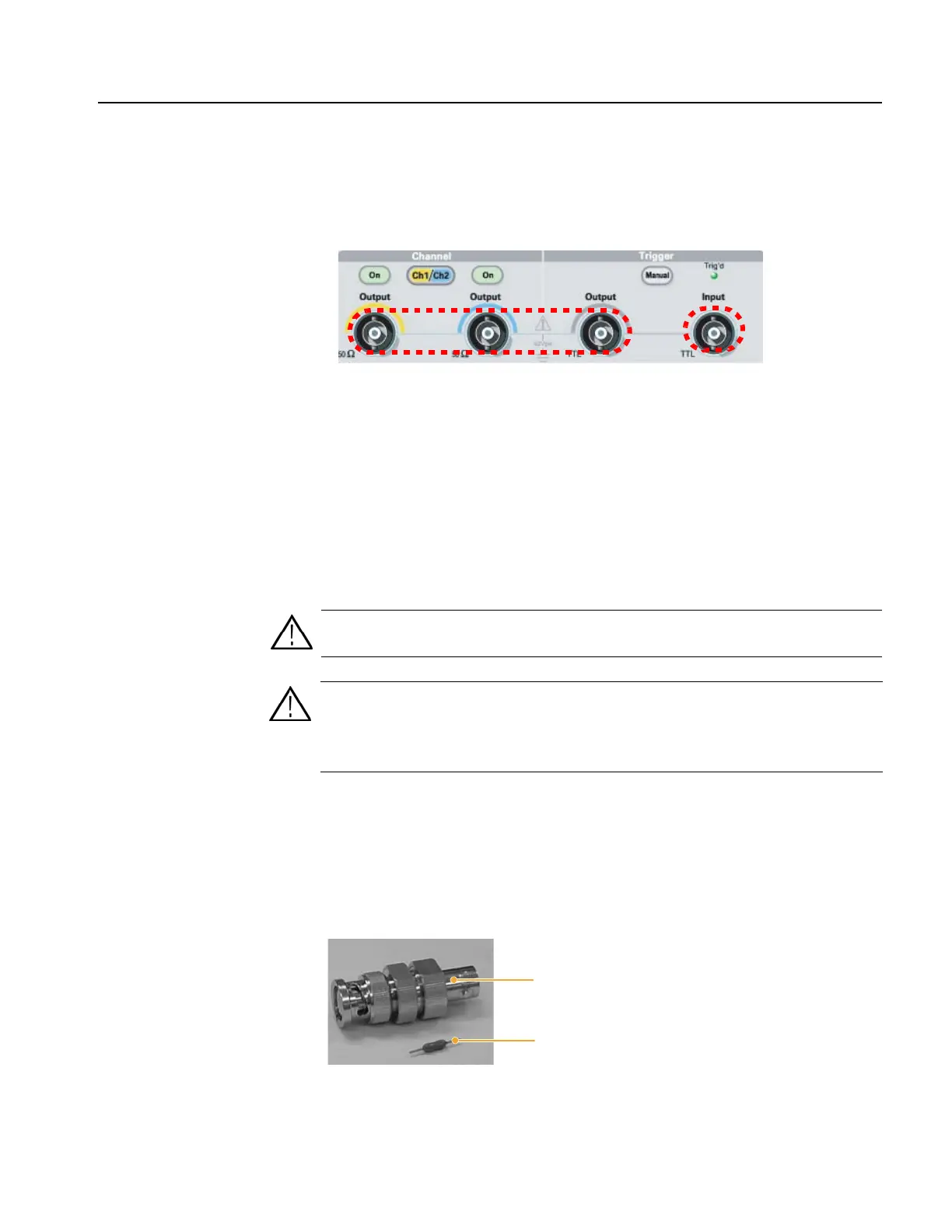

Figure 2-2: Output and Input connectors
1. The instrument has both input and output connectors on the front panel.
When connecting a cable, be sure to distinguish the input connector from the
output connectors.
The arbitrary/function generator input and output connectors are floating
inputs/outputs.
Avoid Instrument Damage
The instrument will be damaged if a large DC or AC voltage is applied to the output
or input connectors. To protect the output circuits, a fuse adapter is provided as an
optional accessory. When the instrument is used by students or other inexperienced
users, always attach the fuse adapter to the output connectors to avoid damage.
Tektronix part numbers for the fuse adapter are as follows:
Figure 2-3: Fuse adapter
Do not mistake Output connectors for Input.
Output
Input
WARNING. To prevent electrical shocks, do not apply voltages in excess of 42 Vpk
to any BNC connector ground or to the chassis ground.
CAUTION. Do not short output pins or apply external voltages to Output
connectors. The instrument may be damaged.
Do not apply excessive inputs over +5 V to Trigger Input connector. The instrument
may be damaged.
Adapter (P/N: 013-0345-00)
0.125 A fuse (P/N: 159-0454-00 (3 each))
