Removal and Installation Procedures
6-14 AFG3000 Series Arbitrary/Function Generators Service Manual
Display Module
You will need a torque-limiting Torx T-15 screwdriver and tweezers.
Removal. To remove the display module, refer to Figure 6-8 and follow these steps:
1. Use tweezers or needle-nose pliers to disconnect the backlight cable at the
Inverter unit located near the fan unit.
2. Remove the four screws attaching the display module to the main chassis.
3. Disconnect the display cable at on the back side of the display module.

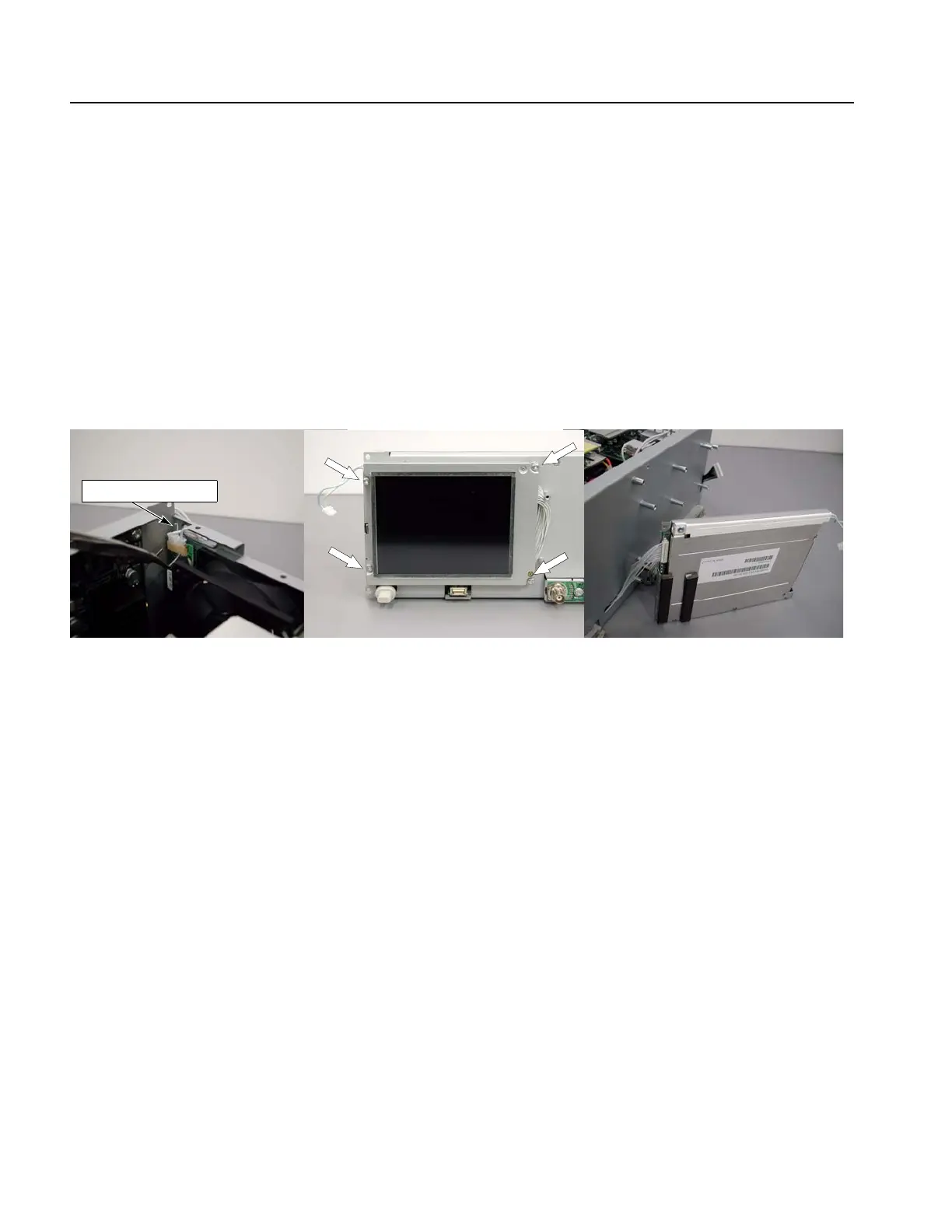

Figure 6-8: Display module removal
Installation. To install, reverse this procedure.
Output Board (AFG310x, AFG325x)
You will need a torque-limiting Torx T-15 screwdriver.
Removal. To remove the output board, refer to Figure 6-9 and follow these steps:
1. Disconnect the two peltola cables at J100 (CH1; from J380, CH2; from J780)
and J170 (CH1; from J390, CH2; from J790) on the output board.
2. Remove the two screws attaching the output module to the rear sub-panel.
3. Gently pull out the output board toward the rear according to the guide.
