Removal and Installation Procedures
AFG3000 Series Arbitrary/Function Generators Service Manual 6-23
A81 BNC Insulator Board, BNC Bracket
You will need a torque-limiting Torx T-15 screwdriver, a torque wrench, a 16 mm
(5/8 inch) deep socket.
Removal. To remove the A81 BNC Insulator and BNC bracket, refer to Figure 6-19
and follow these steps:
1. Remove the Generator board using the procedures on page 6-22.
2. Use the 16 mm (5/8 inch) deep socket to remove the nuts and the wave washers
from the BNC connectors (CHx Output, Trigger Input, and Trigger Output).
3. Remove the three screws that attach the A81 BNC Insulator board to the
Generator board.
4. Remove the A81 BNC Insulator board and BNC bracket.

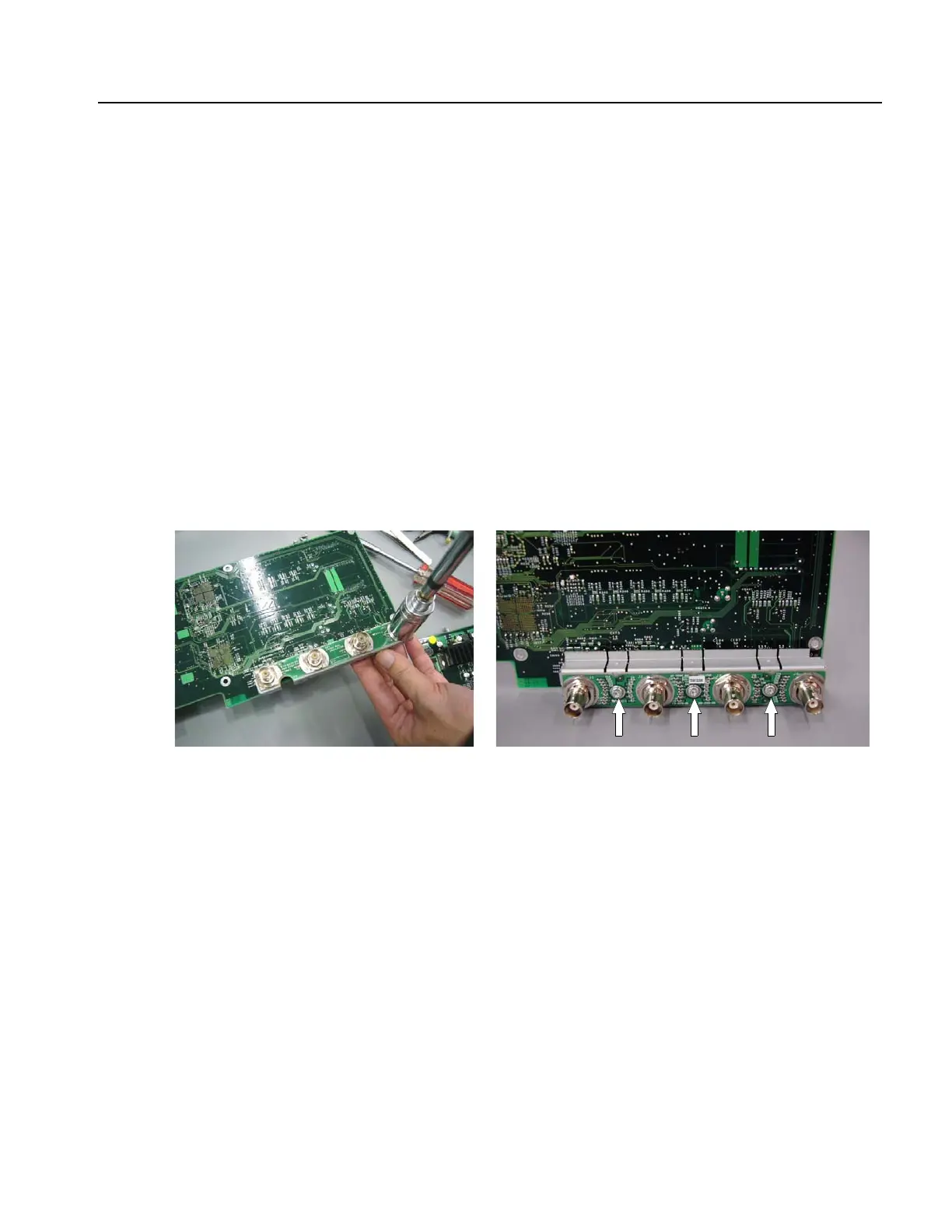

Figure 6-19: A81 BNC Insulator board and BNC bracket removal
Installation. To install, reverse this procedure.
