Removal and Installation Procedures
AFG3000 Series Arbitrary/Function Generators Service Manual 6-13

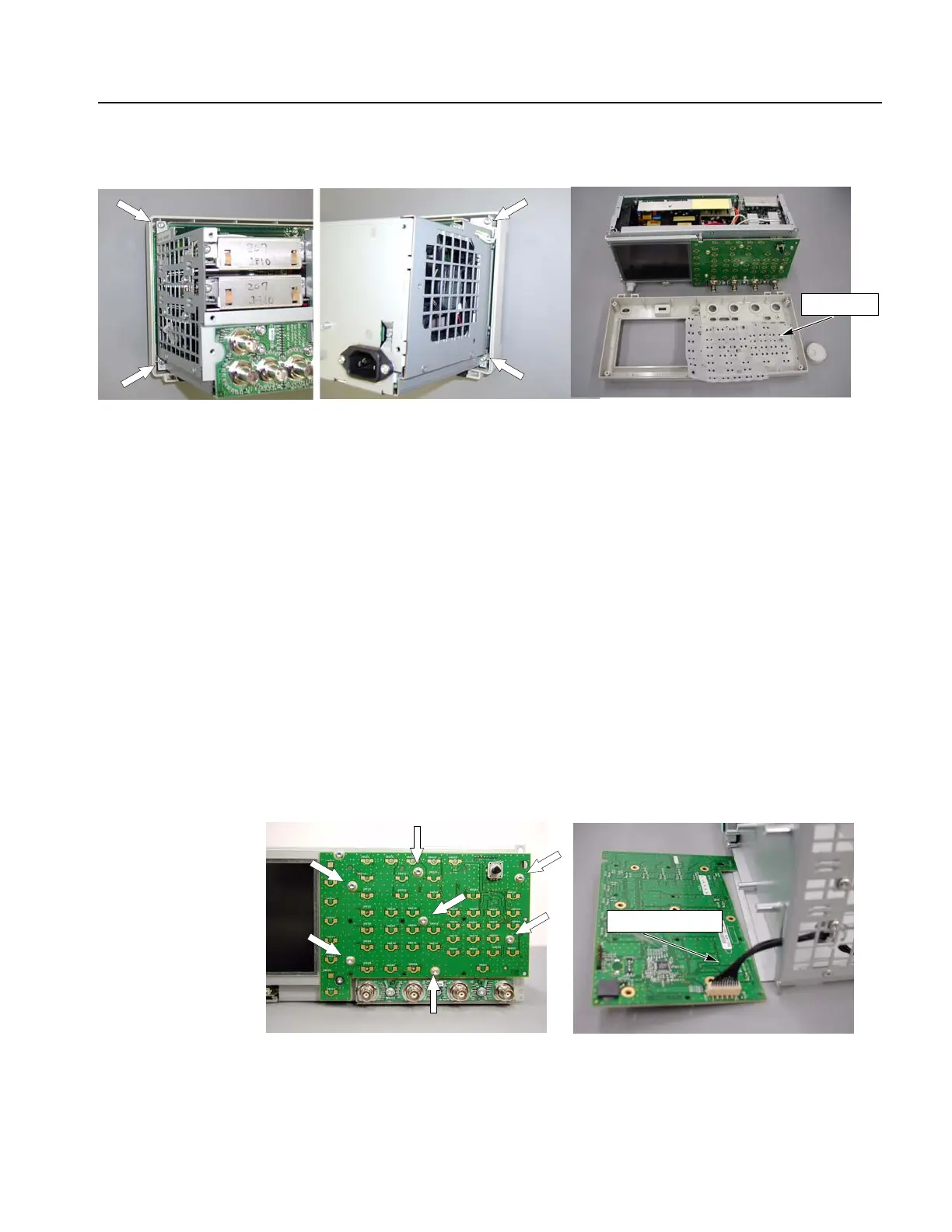

Figure 6-6: Front case removal
Installation. To install, reverse this procedure. Remember to attach the rubber front
feet to the front case.
A75 Front-Panel Board
You will need a torque-limiting Torx T-15 screwdriver.
Removal. To remove the A75 front-panel board, refer to Figure 6-7 and follow
these steps:
1. Remove the front case using the procedures on page 6-12.
2. Remove the seven screws attaching the A75 front-panel board to the main
chassis.
3. Disconnect the front-panel board cable.
Figure 6-7: A75 front-panel board removal
Installation. To install, reverse this procedure.
Rubber switch
Front panel board cable
