Removal and Installation Procedures
6-10 AFG3000 Series Arbitrary/Function Generators Service Manual
Front-Panel knob
Remove: Firmly grasp the knob and pull it away from the shaft.
Install: Align the keyed knob with the shaft and press the knob onto the shaft.
Rear Case
You will need a torque-limiting Torx T-15 screwdriver for this procedure.
Removal. To remove the rear case, refer to Figure 6-3 and follow these steps:
1. Place the arbitrary/function generator face down on a soft surface such as an
anti-static mat.
2. Remove the four screws located on the rear case. Tilt the handle to gain better
access to the top two screws.
3. Use a Phillips head screwdriver to remove the chassis ground screw.
4. Lift the rear case off of the arbitrary/function generator.

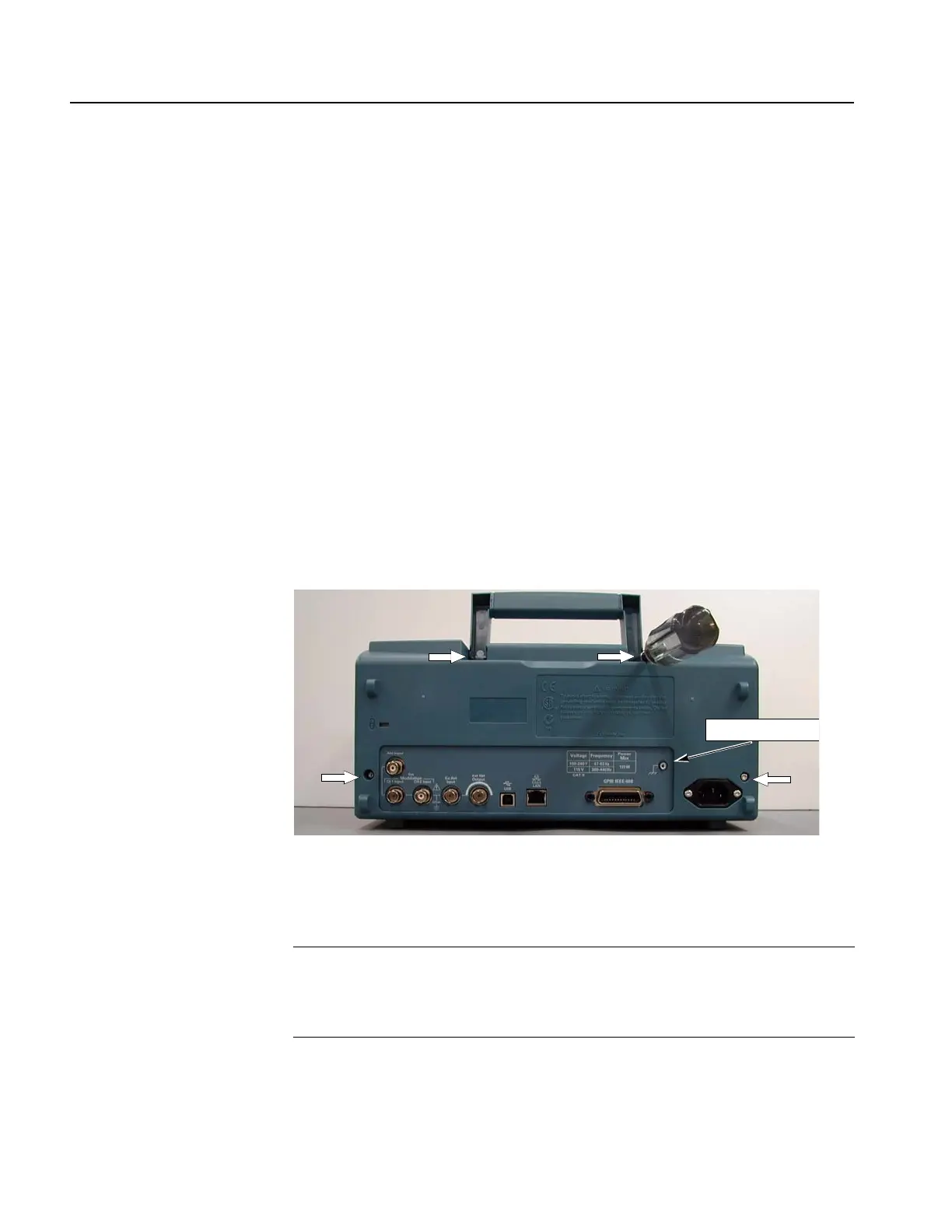

Figure 6-3: Rear case removal
Installation. To install, reverse this procedure.
Chassis ground screw
NOTE. When you remove the rear case, the front rubber feet (attached to the front
case) come off. Before you reinstall the rear case, reattach the front feet to the front
case. Confirm that they are in place before reassembling the case.
Remember to attach the chassis ground screw.
