Tektronix DPO70000 Series Technical Reference

Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
c. Hook up the test
-signal source:
Connect the signal output of the generator to a power splitter. Connect
one output of t
he power splitter to Ch 1 as shown in the following
figure. Connect the other output of the power splitter to the Aux Input
as in the following figure.

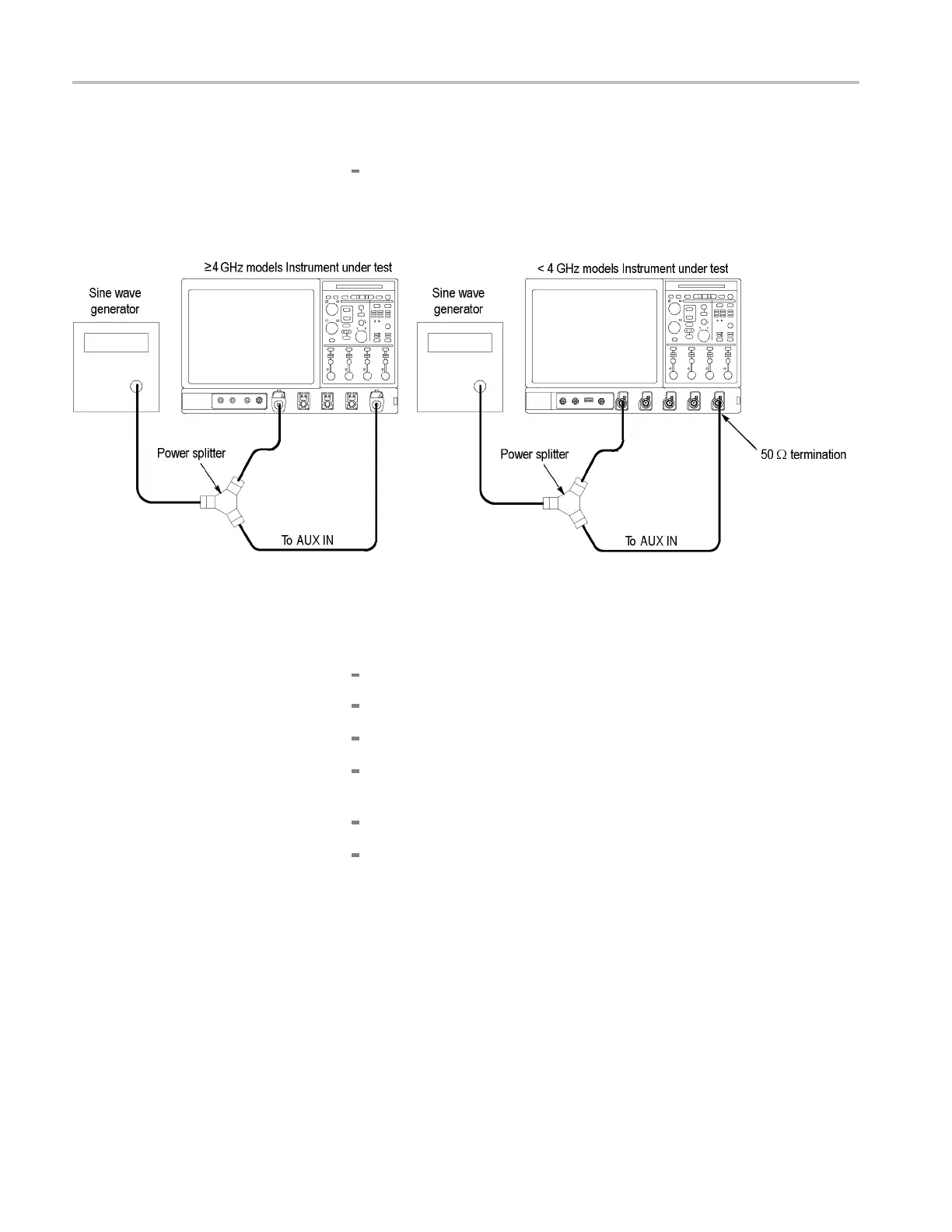

Figure 3-25: Initial test hookup
2. Confirm the trigger system is within sensitivity limits (50 MHz):
a. Displ
ay the test signal:
Set the generator frequen cy to 50 MHz.
From the button bar, touch Measure.
Touch Setup Ref Levs;thentouchtheMin-Max button.
Touch the Setup button and select the Ampl tab; then touch the
Amplitude button.
Touch the X (close) button.
Press Push-Set 50%.
3–90 MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
