Tektronix DPO70000 Series Technical Reference

Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
Sine Wave Gene
rator Leveling Procedure
Some procedures in this manual require a sine wave generator to produce the
necessary test signals. If you do not have a leveled sine wave generator, use
one of the fol
lowing procedures to level the output amplitude of your sine wave
generator.
Equipment required Prerequisites
Sine wave generator (Item 9)
Meter, power and sensor (Item 10)
Power splitter ( Item 11)
50 Ω precision cable 2.92 mm male-to-female
(Item 12)
One K male-to-male adapter (Item 13)
(See page 3-18, Prerequisites.)

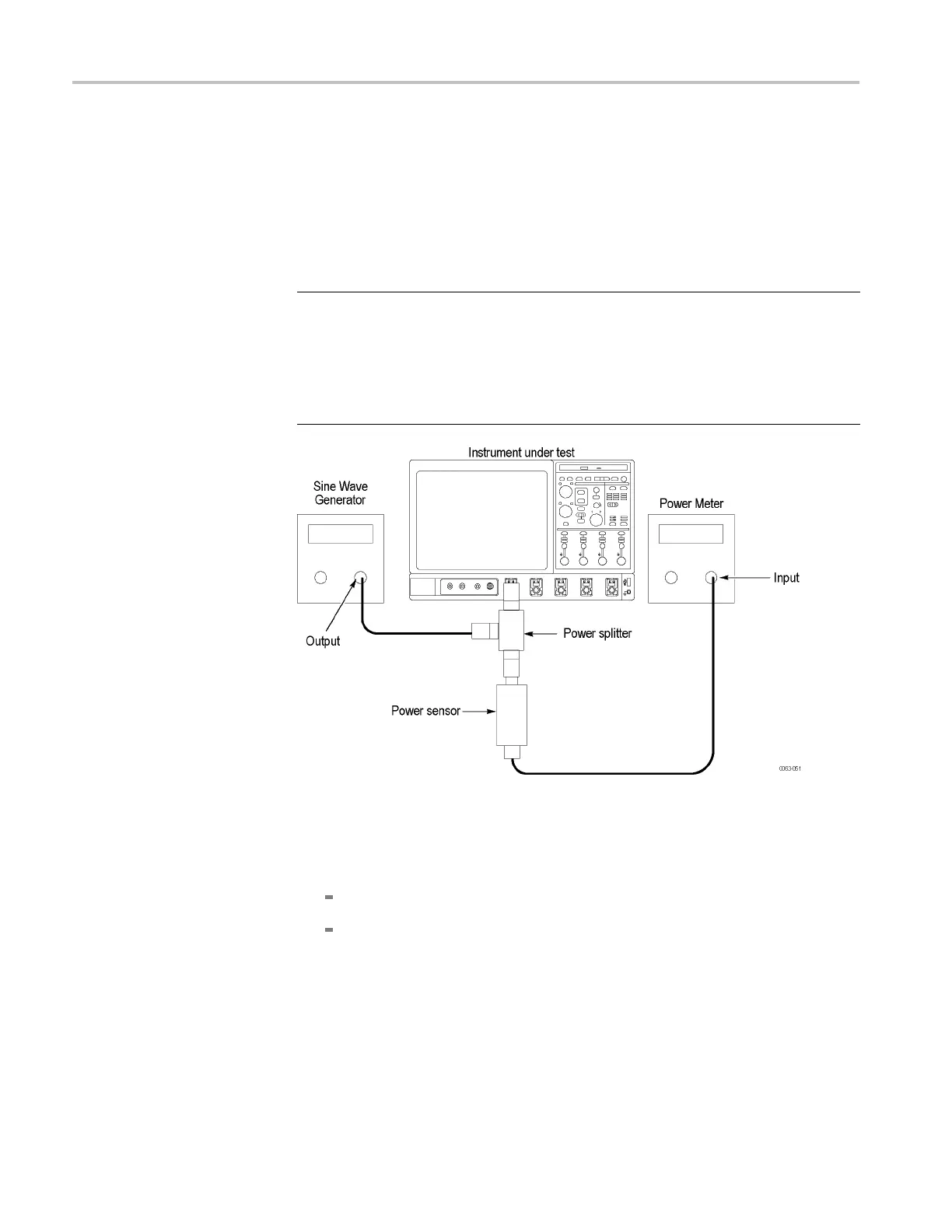

Figu
re 3-38: Sine wave generator leveling equipment setup
1. Ins
tall the test hookup: Connect the equipment as shown in the above figure.
2. Set the Generator:
Set the sine wave generator to a reference frequency of 10 MHz.
Adjust the sine wave generator amplitude to the required n umber of
divisions as measured by the instrument.
3–114 MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
