Tektronix TDS3000 Series User Manual

Application Examples
TDS3000 Series User Manual
2–17
4. Push the Trigger On screen button.
5. Select Odd.

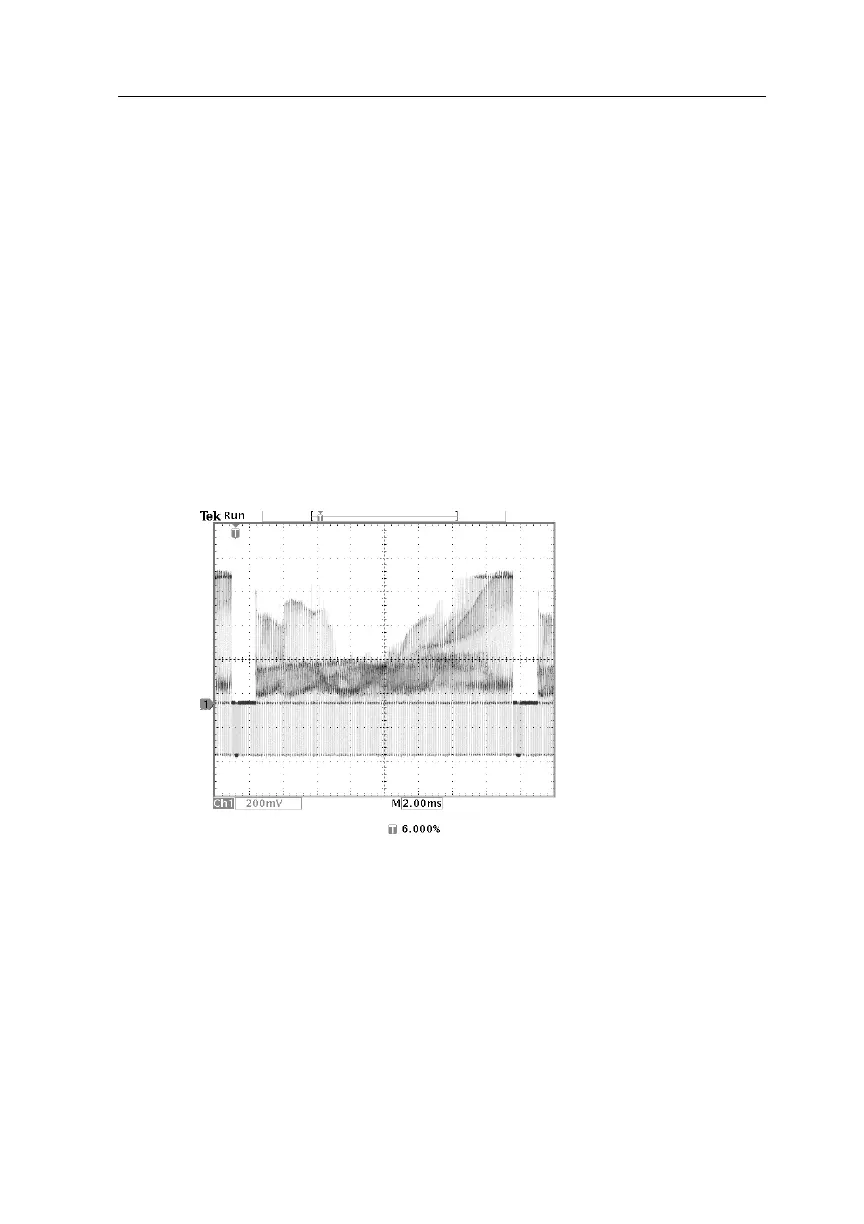

6. Adjust the horizontal SCALE to see a complete field across the
screen.
7. Push the acquire MENU button.
8. Push the Resolution screen button.
9. Select Normal acquisition resolution.
Normal acquisition resolution is the best choice to acquire a video
field signal because the signal contains a great amount of horizontal
detail.
If the signal had been noninterlaced, you could choose to trigger on
All Fields.
