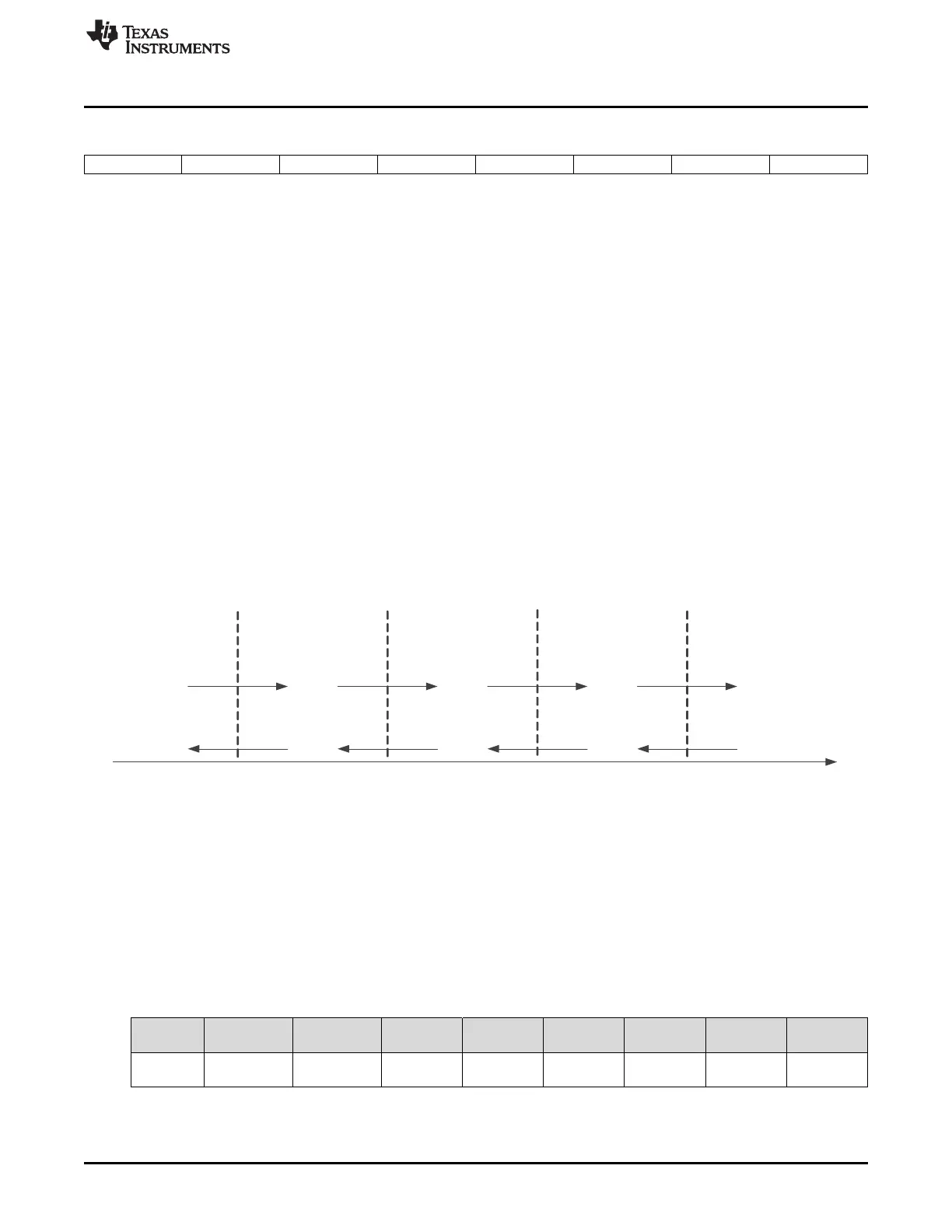

Texas Instruments bq78350-R1 Technical Reference

T1
Temperature()
Under Temp
TempRange() [UT]=1
Low Temp
TempRange() [LT]=1
Standard Temp
TempRange() [ST]=1
High Temp
TempRange() [HT]=1
Over Temp
TempRange() [OT]=1
T2
T3 T4
Temperature() > Charge
Inhibit / Suspend Low Temp
+ Hysteresis Temp
Temperature() < Charge
Inhibit / Suspend Low Temp
Temperature() > Pre Charge
Temp + Hysteresis Temp
Temperature() < Pre Charge
Temp
Temperature() > Charge
Inhibit High Temp+
Hysteresis Temp
Temperature() > Charge
Suspend High Temp+
Hysteresis Temp
Temperature() < Charge
Inhibit High Temp
Temperature() < Charge
Suspend High Temp
www.ti.com Temperature Ranges
13
SLUUBD3D–September 2015–Revised September 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Basic Measurement System
Figure 2-1. Temperature Mode
7 6 5 4 3 2 1 0
RSVD RSVD RSVD RSVD RSVD TSMode3 TSMode2 TSMode1
RSVD (Bits 7–3): Reserved
TSMode3 (Bit 2): Select TS3 sensor for Cell or FET Temperature Protection
0 = Use for Cell (default)
1 = Use for FETTemperature()
TSMode2 (Bit 1): Select TS2 sensor for Cell or FET Temperature Protection
0 = Use for Cell (default)
1 = Use for FETTemperature()
TSMode1 (Bit 0): Select TS1 sensor for Cell or FET Temperature Protection
0 = Use for Cell (default)
1 = Use for FETTemperature()
2.5 Temperature Ranges
The measured temperature is segmented into several temperature ranges. The bq78350-R1 uses these
as indication, and, for Lifetime Data Logging, the time spent in each range. The temperature ranges set in
data flash should adhere to the following format:
T1 ≤ T2 ≤ T3 ≤ T4
Figure 2-2. Data Flash Temperature Range Format
See the Temperature Ranges data flash subclass for details on the specific data flash variables.
2.6 Basic Configuration Options
There are a variety of options available in the bq78350-R1 and the companion AFE that influence the
startup conditions, system configuration, and the data measurement system.
2.6.1 DA Configuration
This register is used to configure the setup of various measurement features of the bq78350-R1.
Class Subclass Name Format
Size in
Bytes
Min Max Default Unit
Settings Configuration
DA
Configuration
hex 1 0x00 0xFF 0x11 —
