Texas Instruments bq78350-R1 Technical Reference

Quit Current
(–)Quit Current
Current
Time
RELAX Mode
CHARGE Mode DISCHARGE Mode
RELAX Mode
CHARGE Mode DISCHARGE Mode
RELAX Mode
Chg Relax Time
Dsg Relax Time
1 10 1 1 10
[
DSG
]
www.ti.com Introduction
61
SLUUBD3D–September 2015–Revised September 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
CEDV Gas Gauging

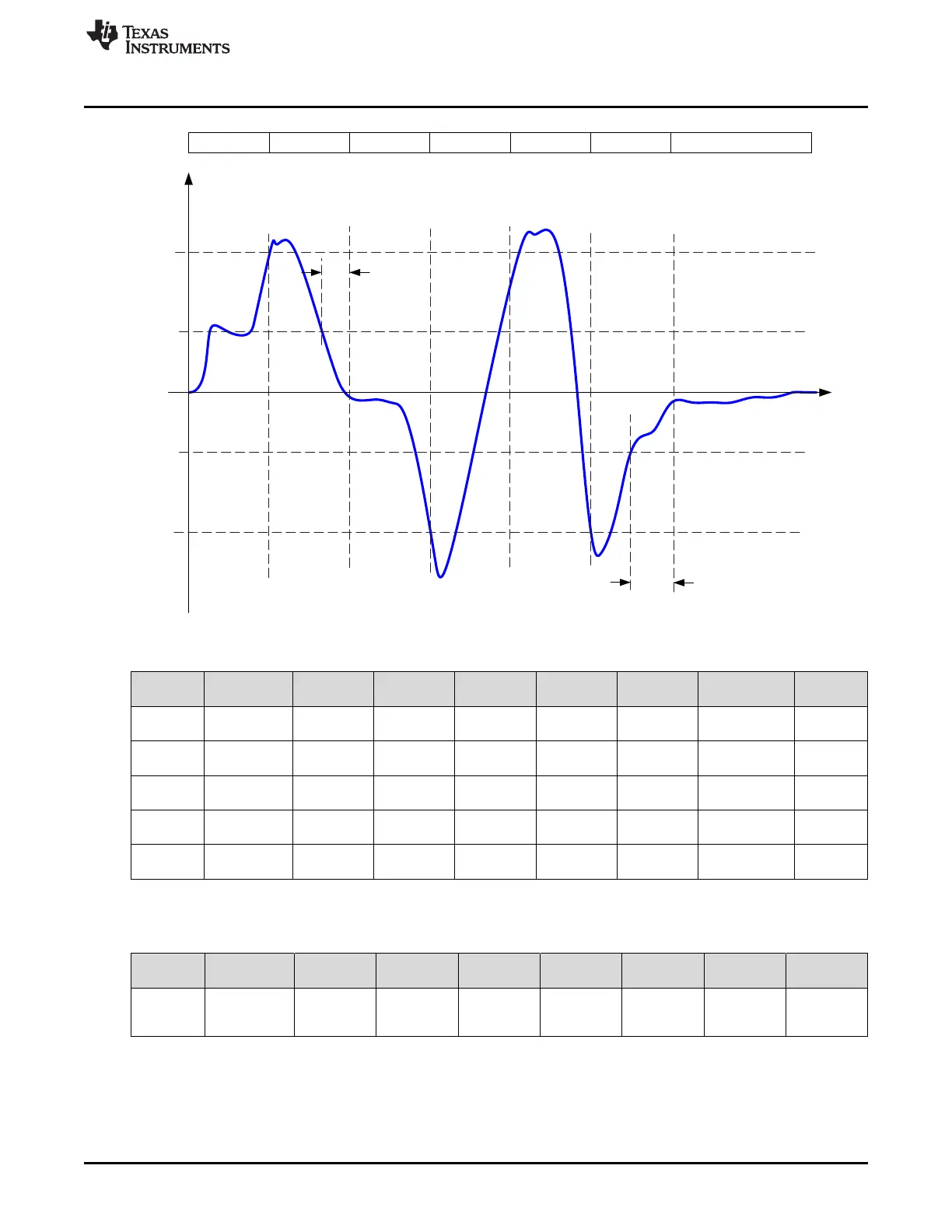

Figure 9-2. Fuel Gauge Operating Mode Example
Class Subclass Name Format
Size in
Bytes
Min Max Default Unit
Fuel
Gauging
Current
Thresholds
Dsg Current
Threshold
Unsigned
Integer
2 0 2000 100 mA
Fuel
Gauging
Current
Thresholds
Dsg Relax
Time
Unsigned
Integer
1 0 255 1 s
Fuel
Gauging
Current
Thresholds
Chg Current
Threshold
Unsigned
Integer
2 0 2000 50 mA
Fuel
Gauging
Current
Thresholds
Chg Relax
Time
Unsigned
Integer
1 0 255 60 s
Fuel
Gauging
Current
Thresholds
Quit Current
Unsigned
Integer
2 0 1000 10 mA
9.1.3 Full Charge Capacity
Class Subclass Name Format
Size in
Bytes
Min Max Default Unit
Fuel
Gauging
State
Learned Full
Charge
Capacity
Unsigned
Integer
2 0 65535 4400
mAh or 10
mWh
