CEDV Gas Gauging
Chapter 9
SLUUBD3D–September 2015–Revised September 2018
CEDV Gas Gauging
9.1 Introduction
The bq78350-R1 features the Compensated End-of-Discharge Voltage (CEDV) gauging algorithm,
capable of gauging a Li-Ion or LiFePO4 battery. The data from the gas gauge is in either mAh or mWh
units based on the 0 or 1 setting of [CapM] in BatteryMode(), and can be scaled per the [IPScale] setting
in SpecInfo().
The operational overview in Figure 9-1 illustrates the gas gauge operation of the bq78350-R1.

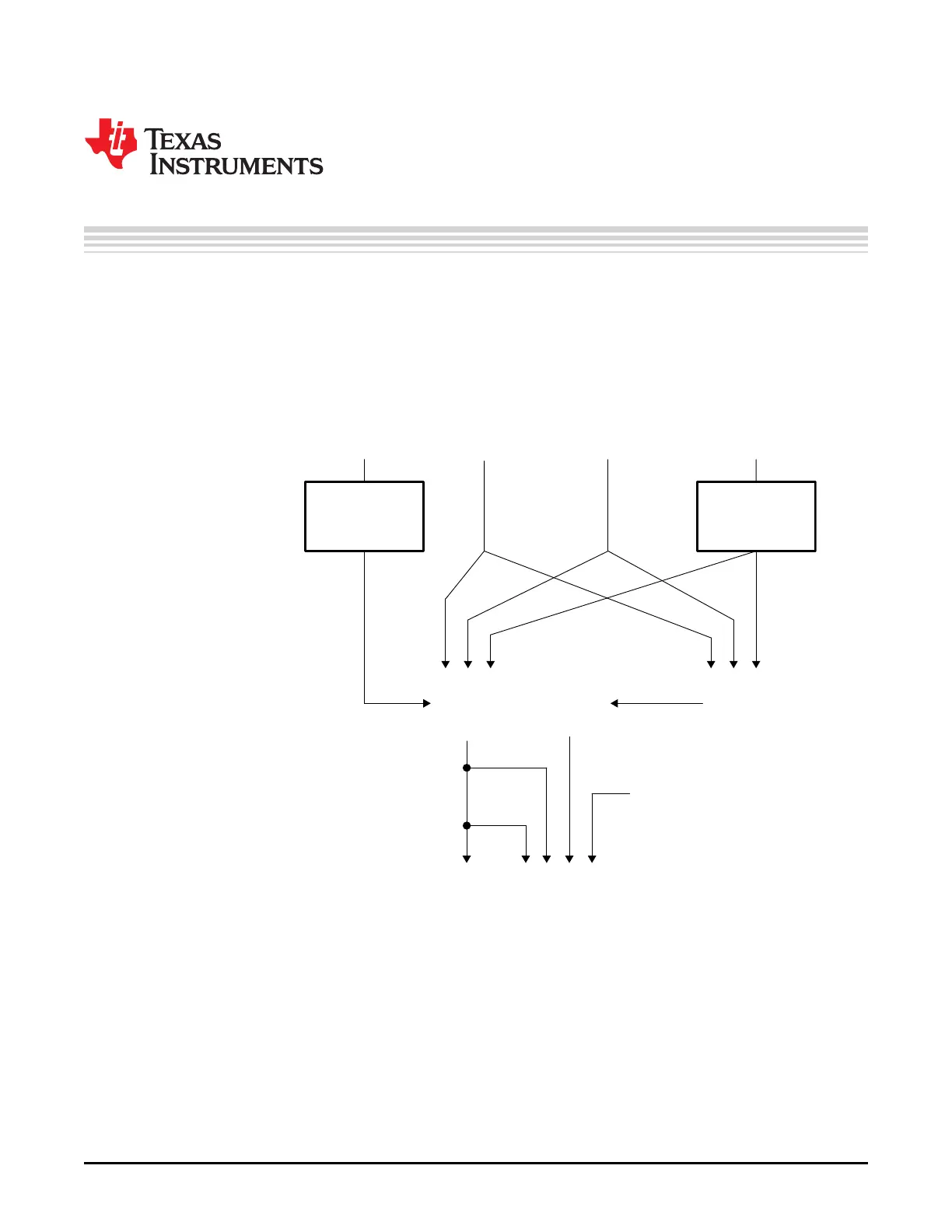

Figure 9-1. CEDV Operational Overview
The bq78350-R1 accumulates the measured quantities of charge and discharge and estimates self-
discharge of the battery. The bq78350-R1 compensates the charge current measurement for temperature
and state-of-charge of the battery. The bq78350-R1 also adjusts the self-discharge estimation based on
temperature.
9.1.1 Main Fuel Gauge Registers
The main charge counter, RemainingCapacity() (RC), represents the available capacity or energy in the
battery at any given time. The bq78350-R1 adjusts RC for charge, self-discharge, and other compensation
factors. The information in the RC register is accessible through the SMBus.
To Next Page
