Toshiba 46UX600U User Manual

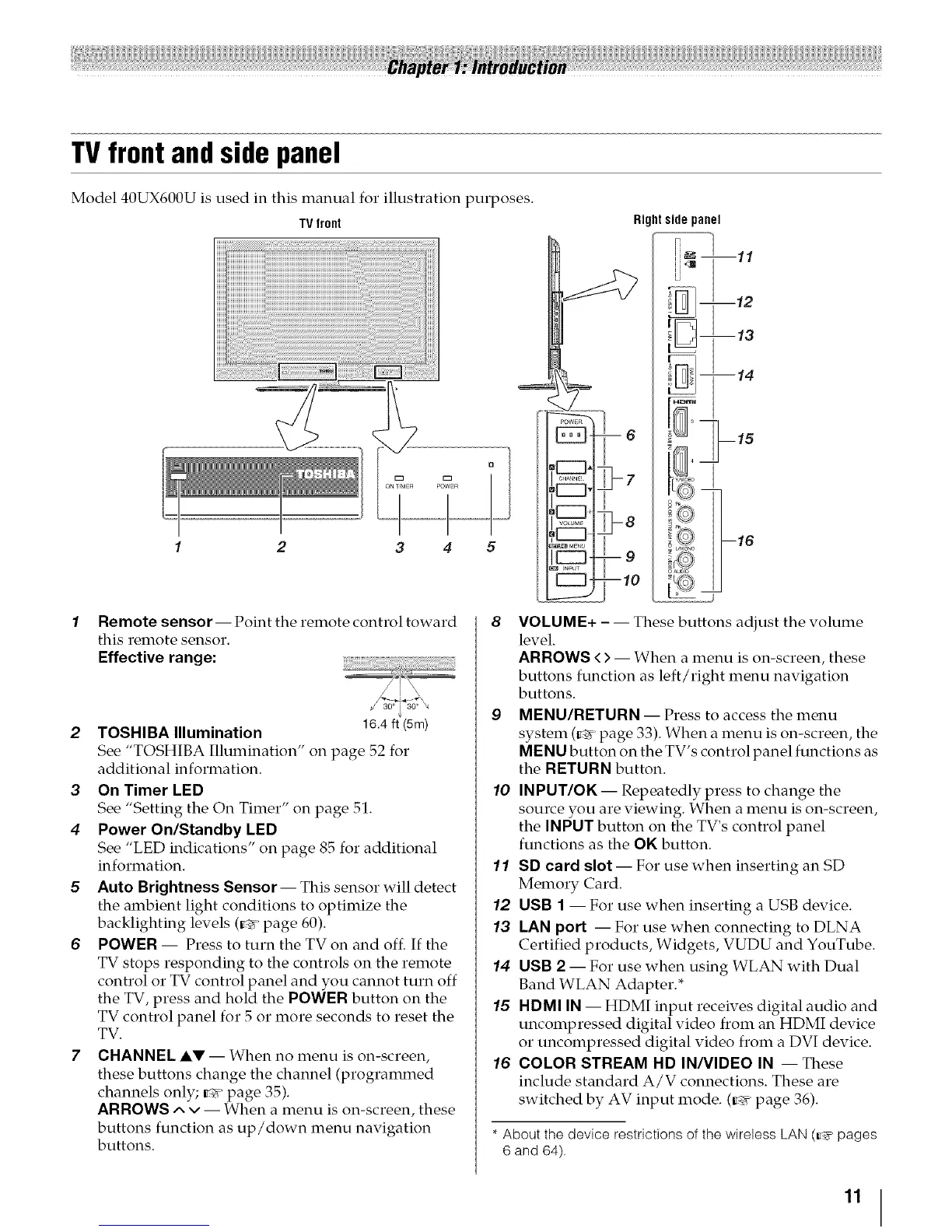

TV front and side panel
Model 40UX600U is used in this manual for illustration purposes.
TVfront
Rightside panel
2 3 4 5
Remote sensor-- Point the remote control toward
this remote sensor.
Effective range:
2 TOSHIBA Illumination 16.4 ft (5m)
See "TOSHIBA Illumination" on page 52 for
additional information.
3 On Timer LED
See "Setting the On Timer" on page 51.
4 Power On/Standby LED
See "LED indications" on page 85 for additional
information.
5 Auto Brightness Sensor-- This sensor will detect
the ambient light conditions to optimize the
backlighting levels (_ page 60).
6 POWER -- Press to turn the TV on and off. If the
TV stops responding to the controls on the remote
control or TV control panel and you cannot turn off
the TV, press and hold the POWER button on the
TV control panel for 5 or more seconds to reset the
TV.
7 CHANNEL AV-- When no menu is on-screen,
these buttons change the channel (programmed
channels only; m_ page 35).
ARROWS ^ v -- When a menu is on-screen, these
buttons function as up/down menu navigation
buttons.
[ 6
8 VOLUME+ --- These buttons adjust the volume
level.
ARROWS <> -- When a menu is on-screen, these
buttons function as left/right menu navigation
buttons.
9 MENU/RETURN -- Press to access the menu
system (_ page 33). When a menu is on-screen, the
MEN U button on the TV's control panel functions as
the RETURN button.
10 INPUT/OK- Repeatedly press to change the
source you are viewing. When a menu is on-screen,
the INPUT button on the TV's control panel
functions as the OK button.
11 SD card slot = For use when inserting an SD
Memory Card.
12 USB 1 -- For use when inserting a USB device.
13 LAN port -- For use when connecting to DLNA
Certified products, Widgets, VUDU and YouTube.
14 USB 2 -- For use when using WLAN with Dual
Band WLAN Adapter.*
15 HDMI IN -- HDMI input receives digital audio and
uncompressed digital video from an HDMI device
or uncompressed digital video from a DVI device.
16 COLOR STREAM HD IN/VIDEO IN -- These
include standard A/V connections. These are
switched by AV input mode. (_ page 36).
* About the device restrictions of the wireless LAN (_4_ pages
6 and 64).
11

Toshiba 46UX600U Specifications

General

Display diagonal	46 \
Contrast ratio (dynamic)	3000000:1
Product color	Black
Panel mounting interface	400 x 200 mm
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	1
Teletext function	-
Package weight	26489 g

Weight and Dimensions

Depth (with stand)	329 mm
Height (with stand)	761 mm
Weight (with stand)	21000 g
Depth (without stand)	49.7 mm
Width (without stand)	1140 mm
Height (without stand)	713 mm
Weight (without stand)	18098 g
