Toshiba 46UX600U User Manual

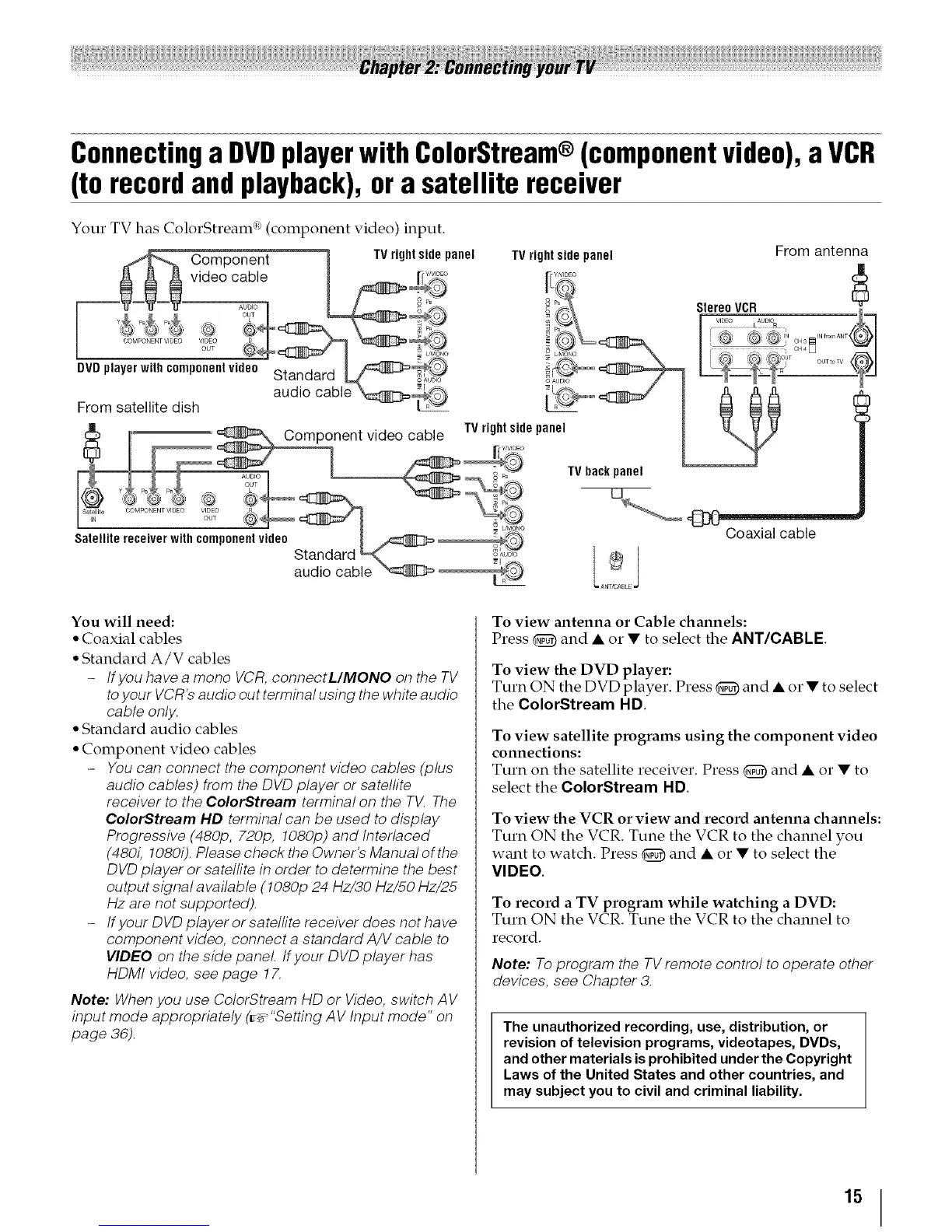

Connectinga DVDplayerwithColorStream®(componentvideo),aVCR
(torecordandplayback),ora satellite receiver
Your TV has ColorStream ¢'_(component video) input.
TV right side panel
Stereo VCR
From antenna
From satellite dish
o AUDIO
i_
TV back panel
You will need:
• Coaxial cables
• Standard A/V cables
- Ifyou have a mono VCR, connectL/MONO on the TV
toyour VCR'S audio out terminal using the white audio
cable only.
• Standard audio cables
° Component video cables
- You can connect the component video cables (plus
audio cables) from the DVD player or satelfite
receiver to the ColorStream terminal on the TV. The
ColorStream HD terminal can be used to display
Progressive (480p, 720p, 1080p) and Interlaced
(480L 1080i). Please check the Owner's Manual of the
DVD player or satelfite in order to determine the best
output signal available (1080p 24 Hz/30 Hz/50 Hz/25
Hz are not supported).
- Ifyour D VD player or sa telfite receiver does not ha ve
component video, connect a standard A/V cable to
VIDEO on the side panel If your DVD player has
HDMI video, see page 17.
Note: When you use ColorStream HD or Video, switch A V
input mode appropriately (_4;,"Setting A V Input mode" on
page 36).
Coaxial cable
To view antenna or Cable channels:
Press _) and • or • to select the ANT/CABLE
To view the DVD player:
Turn ON the DVD player. Press _) and • or • to select
the ColorStrearn HD.
To view satellite programs using the component video
connections:
Turn on the satellite receiver. Press _) and • or • to
select the ColorStream HD.
To view the VCR or view and record antenna channels:
Turn ON the VCR. Tune the VCR to the channel you
want to watch. Press _) and • or • to select the
VIDEO.
To record a TV program while watching a DVD:
Turn ON the VCR. Tune the VCR to the channel to
record.
Note: To program the TV remote control to operate other
devices, see Chapter 3.
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and
may subject you to civil and criminal liability.
15

Toshiba 46UX600U Specifications

General

Display diagonal	46 \
Contrast ratio (dynamic)	3000000:1
Product color	Black
Panel mounting interface	400 x 200 mm
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	1
Teletext function	-
Package weight	26489 g

Weight and Dimensions

Depth (with stand)	329 mm
Height (with stand)	761 mm
Weight (with stand)	21000 g
Depth (without stand)	49.7 mm
Width (without stand)	1140 mm
Height (without stand)	713 mm
Weight (without stand)	18098 g
