Arrow Manual Console Reference 126
Control Room Column
The control room column is where various options for the
monitor outputs are configured and selected.
Show Column
By default, the control room column is not visible. To show
the column, enable the CTRL ROOM switch in the SHOW
section of the monitor column.

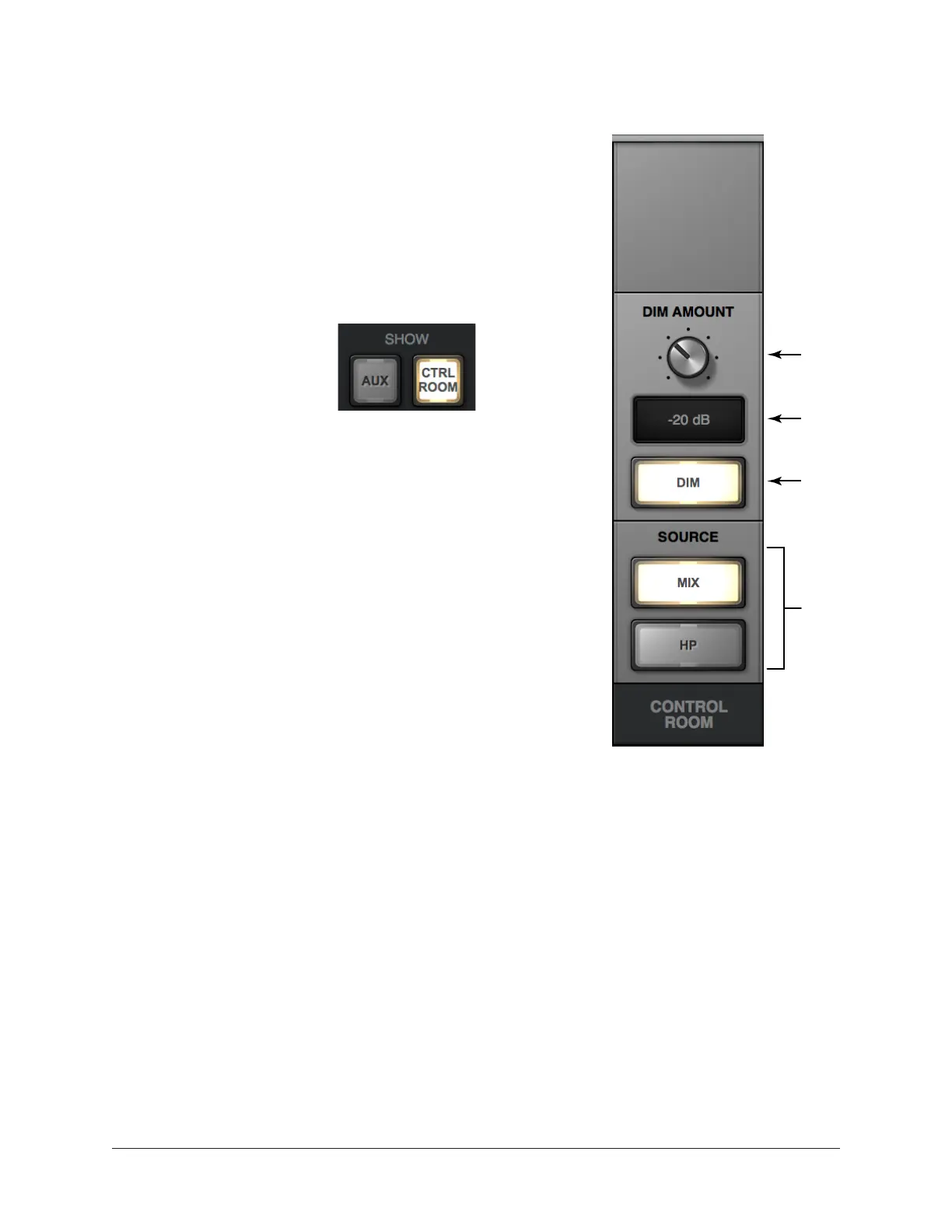

Show CTRL ROOM switch in monitor column
DIM Controls
DIM is used to quickly reduce the listening volume in the
control room by a set amount and quickly return to the prior
volume.
DIM Amount – This control adjusts the amount of
attenuation that is applied to the main monitor mix when
the DIM switch is engaged. The default value is -20 dB
with an available range of 0 dB to -60 dB. The DIM value is
displayed below the DIM knob.
Note: Although displayed DIM values are continuous,
the actual amount of available attenuation is stepped.
DIM Enable – When engaged (lit), the monitor outputs are attenuated by the DIM
Amount.
Tip: Press DIM quickly to latch the DIM function. Press and hold DIM for 0.5
seconds to momentarily engage the function and deactivate DIM when the button
is released.
Monitor Source Select
These switches select the mix bus (either main monitor mix or HP cue mix) that is sent
to Arrow’s monitor outputs. The output source is selected when its switch is lit.
Monitor
Source
Select
DIM
Enable
DIM
Value
DIM
Amount
