Universal Audio Arrow User Manual

Arrow Manual Hardware Block Diagram 252

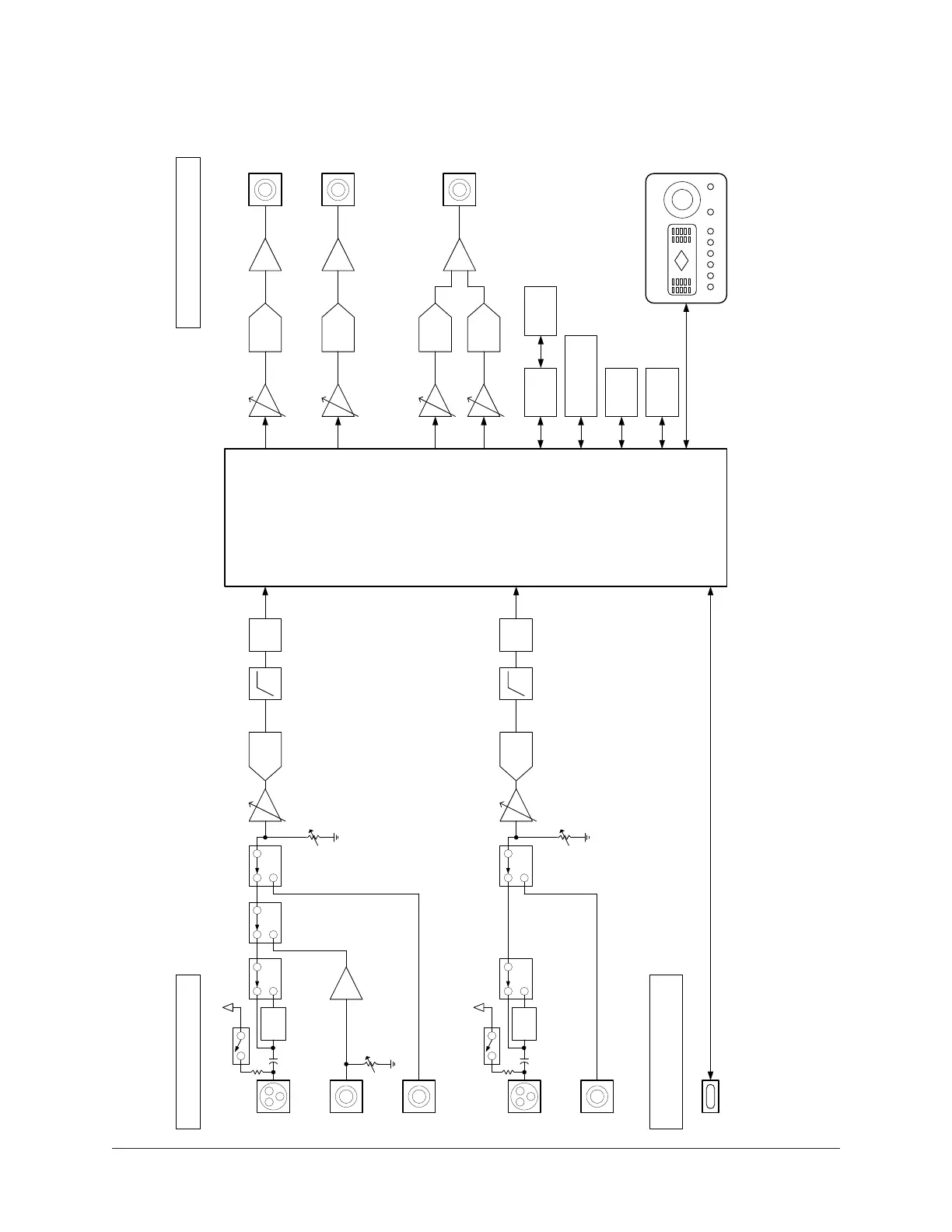

Hardware Block Diagram
Arrow Hardware Block Diagram
HI-Z IN
+48V
MIC IN 1
MIC PAD
IN/OUT
+48V ON/OFF
INPUT GAIN
10 – 65 dB
ANALOG INPUTS
PAD
HI-Z/MIC
SELECT
A/D
LINE IN 1
ANALOG OUTPUTS
D/A
MON OUT L
D/A HEADPHONES OUT
SHARC®
DSP
DRAM
ARM®
PROCESSOR
XLR FEMALE
1/4”
1/4” TRS
1/4” TRS 1/4” TRS
MIXER
CLOCKING / SYNC
SYSTEM CONTROL
ø
LOW-CUT
ON/OFF
POLARITY
CONTROL
HI-Z/MIC-LINE
SELECT
FRONT PANEL
THUNDERBOLT 3
TM
HOST INTERFACE
+48V
MIC IN 2
MIC PAD
IN/OUT
+48V ON/OFF
INPUT GAIN
10 – 65 dB
PAD
A/D
XLR FEMALE
LINE IN 2
1/4” TRS
ø
LOW-CUT
ON/OFF
POLARITY
CONTROL
MIC/LINE
SELECT
D/A
EEPROM
TYPE C
Unison™
VARIABLE
IMPEDANCE
Unison™
VARIABLE
IMPEDANCE
(MIC)
Unison™
VARIABLE
IMPEDANCE
(MIC)
OUTPUT
VOLUME
D/A
1/4” TRS
OUTPUT
VOLUME
MON OUT R
FLASH
