Global Window Elements
Some visual and control elements are always displayed in the Console window, while
others depend on the current selection(s) in the View Column and Monitor Column, as
illustrated below.
An brief overview of each global element is provided in this chapter. Detailed
descriptions of all functions are provided in a later chapter.
The following elements are always visible in the Console window:
View Column Meter Bridge
Monitor Column Current Bank
Info Bar Bank Bar (if channels out of view)

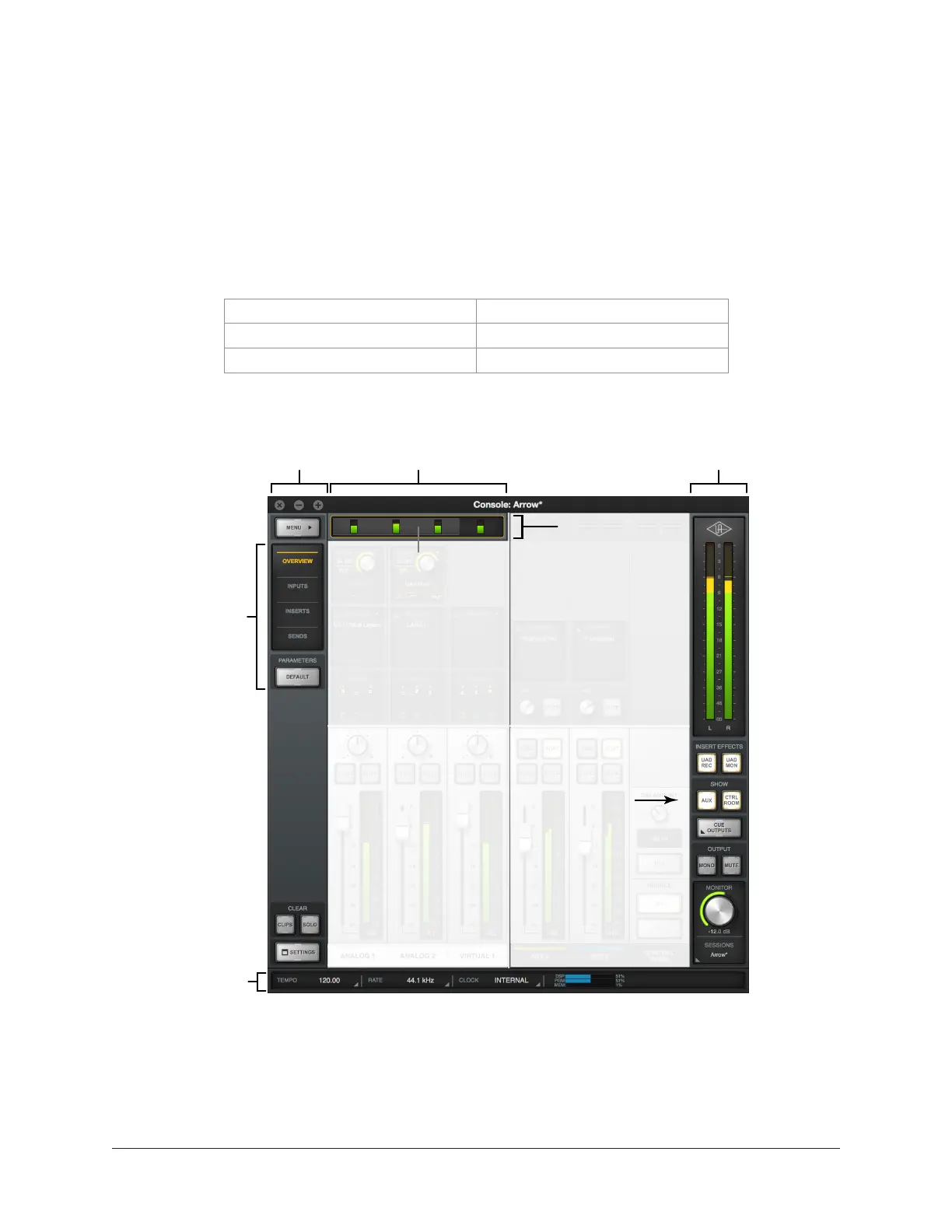

Console elements that are always visible
View
Column
Monitor
Column
Current Bank
(visible channels)
Meter Bridge
(all unhidden channels)
Info Bar
Elements in this area
depend on current VIEW
settings
VIEW
settings
Auxiliary &
Control Room
columns appear
here when SHOW
button(s) are
enabled
Bank Bar
(gray)
