2GM
1-6-22
(3) Removing the heat roller
W
ARNING
•
The heat roller is e
xtremely hot immediately after the machine was running.
Allow substantial period of time until it cools
down.
1.
Remove and split the fuser unit (see page 1-6-18).
2.
Remove the heater lamp (see page 1-6-22).
3.
Press the lamp A holder aw
ay from the heat roller
.
Pull up both heat R bush and heat L b
ush at the same time.

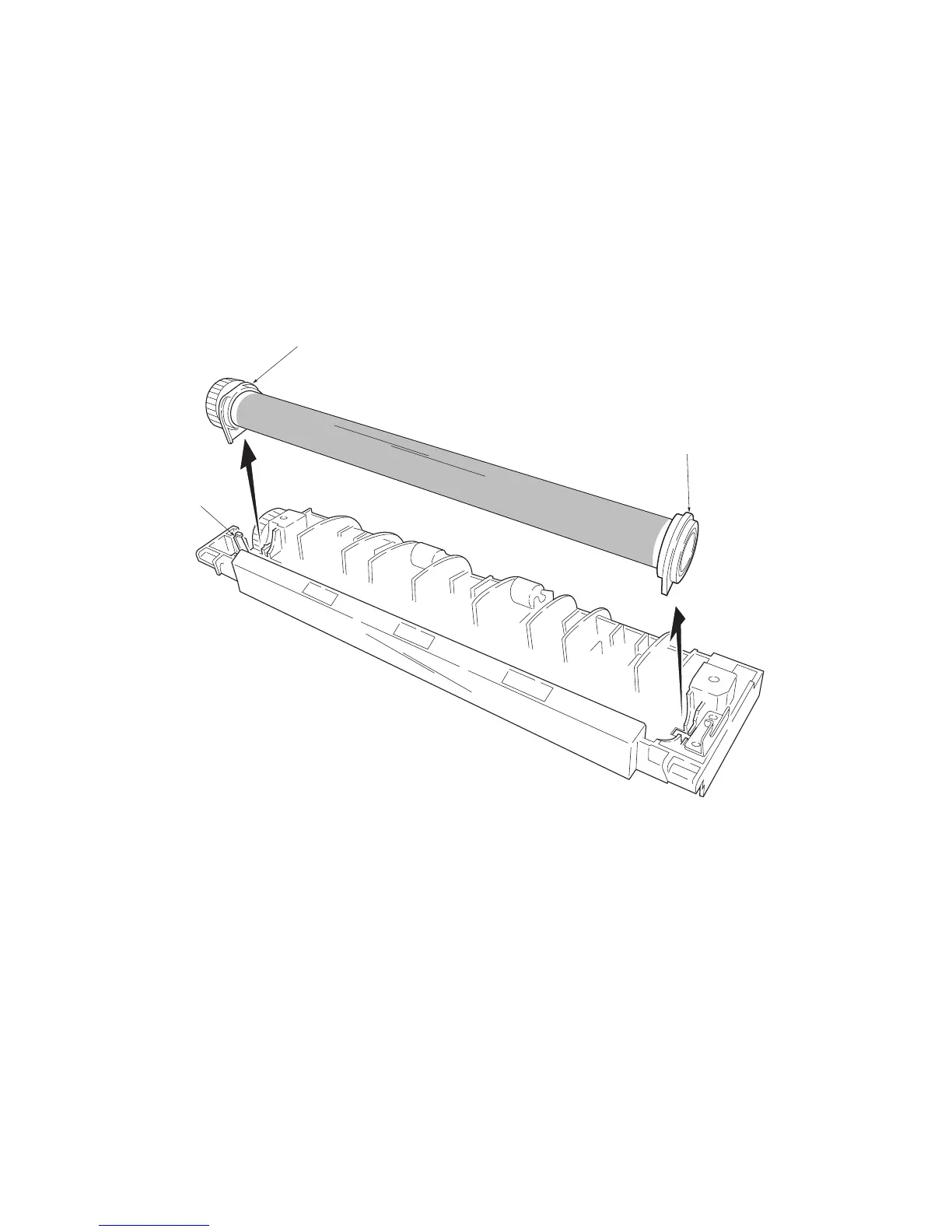

Figure 1-6-25 Removing the heat R b
ush and heat L bush
Lamp A
holder
Heat R bush
Heat L
bush
114
116
