1-3-21
2GM
1-3-4 Installing the expanding memory (option)
The main PWB of the machine is equipped with one
socket for memory expansion. Expansion memory is
available in the form of DIMM (Dual In-line Memory
Module).
CAUTION
Take precautions that no foreign substances such as
metal chips or liquid get inside the machine during the
installation process. Operation of the machine during
the presence of a foreign substance may lead to fire or
electric shock.
WARNING
Turn the power switch off. Disconnect the power cord.
Procedure
1. Remove the screw and then remove the memory
cover.
3. Open the clips on both ends of the DIMM socket.
4. Insert the DIMM into the DIMM socket so that the
notches on the DIMM align with the
corresponding protrusions in the slot.
5. Close the clips on the DIMM slot to secure the
DIMM.

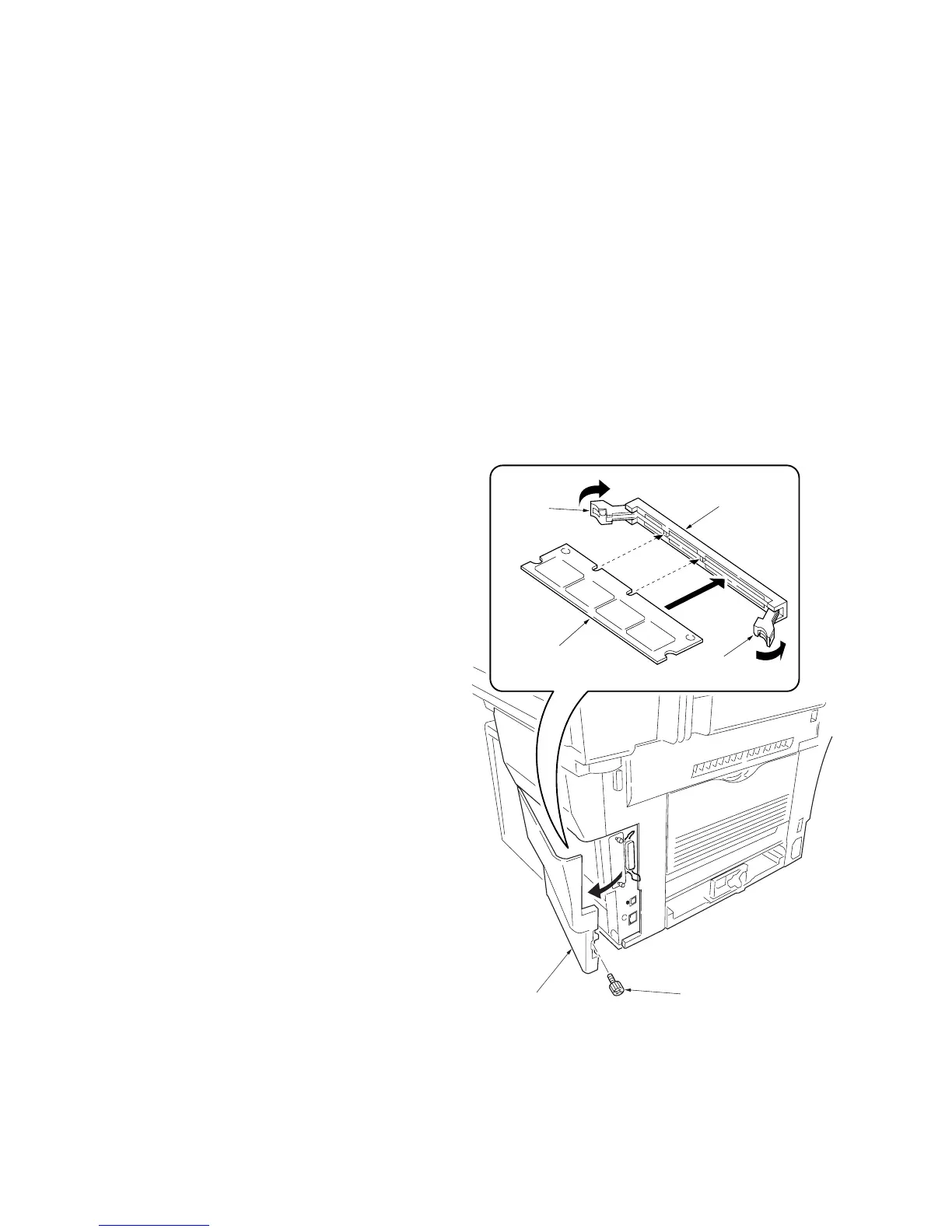

Figure 1-3-47 Inserting the DIMM
Screw
Memory cover
Memory socket
Memory
Stopper
Stopper
To Next Page
