(5) Transfer
The image developed by toner on the drum is transferred onto the paper because of the electrical attraction between the
toner itself and the transfer roller. The transfer roller is negatively biased so that the positively charged toner is attracted
onto the paper while it is pinched by the drum and the transfer roller.

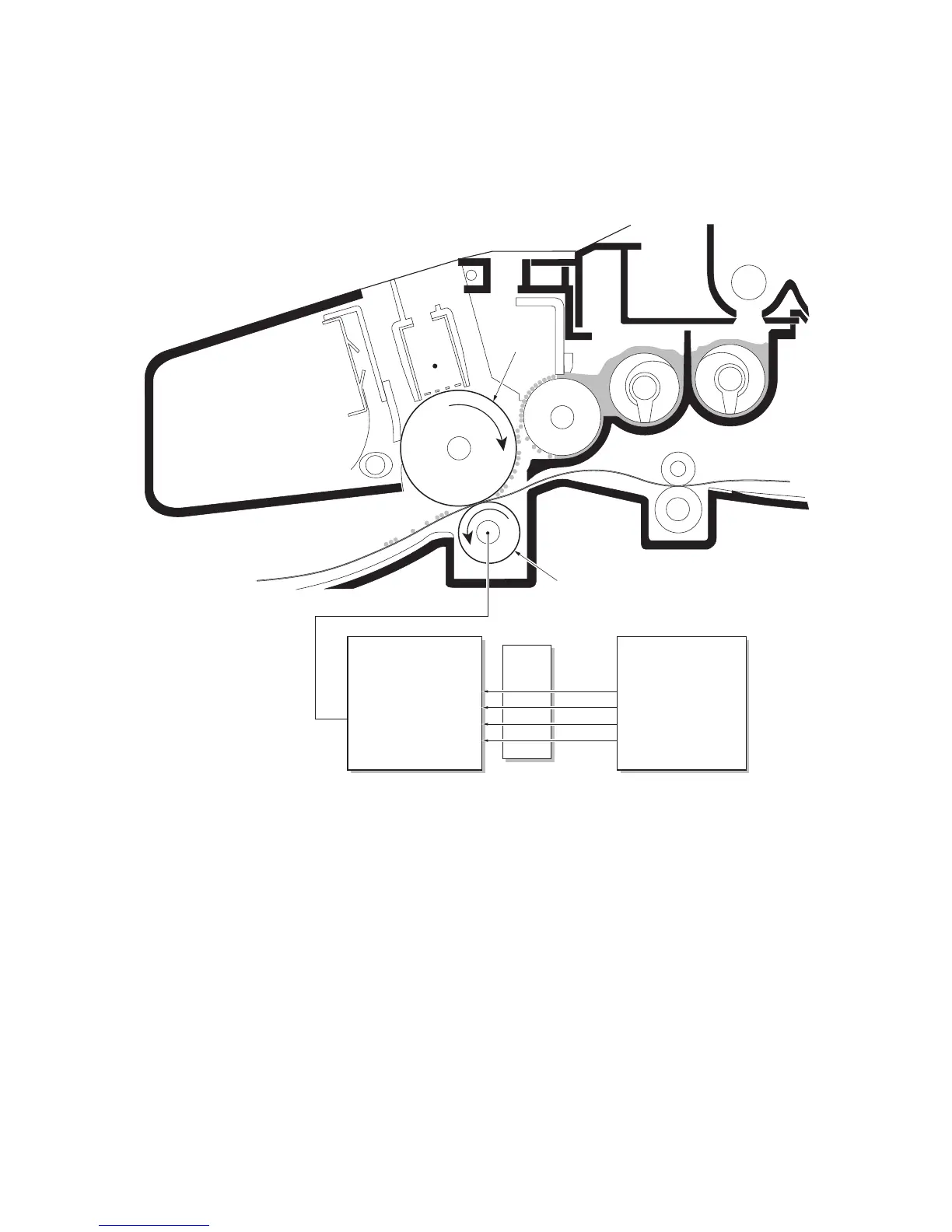

Figure 2-1-15 Transfer
The nominal transfer bias is set to approximately -1.8 kV (limit) with the -6 mA current. Since the ideal potential of the
transfer bias depends on the thickness of paper, the bias is raised to approximately -2.5 kV/-6 mA for thicker paper. On
the other hand, the bias current is reduced to -1.8 kV/-6 mA for thin paper.
High voltage PWB
HVISEL
THVDR
PSEL1
Transfer bias
Drum
Transfer roller
Bias
PWB
YC1-A7
YC1-A5
RTHVDR
YC1-A6
YC1-A8
YC-T
Engine PWB
YC7-6
YC7-2
YC8-13
YC8-15
