2GM
2-1-1
2-1-1 Paper feeding system
The paper feeding system picks up paper from the cassette, MP tray, or if installed, the optional cassette, feeds it in the
machine, and delivers in the output tray. Paper is fed at the precise timing in synchronization with data processing. The
paper feeding system finally delivers the printed page to either the face-down or face-up tray as manipulated by the user.
The figure below shows the components in the paper feeding system and the paths through which the paper travels. The
sensors, clutches, etc., are described in the following pages.

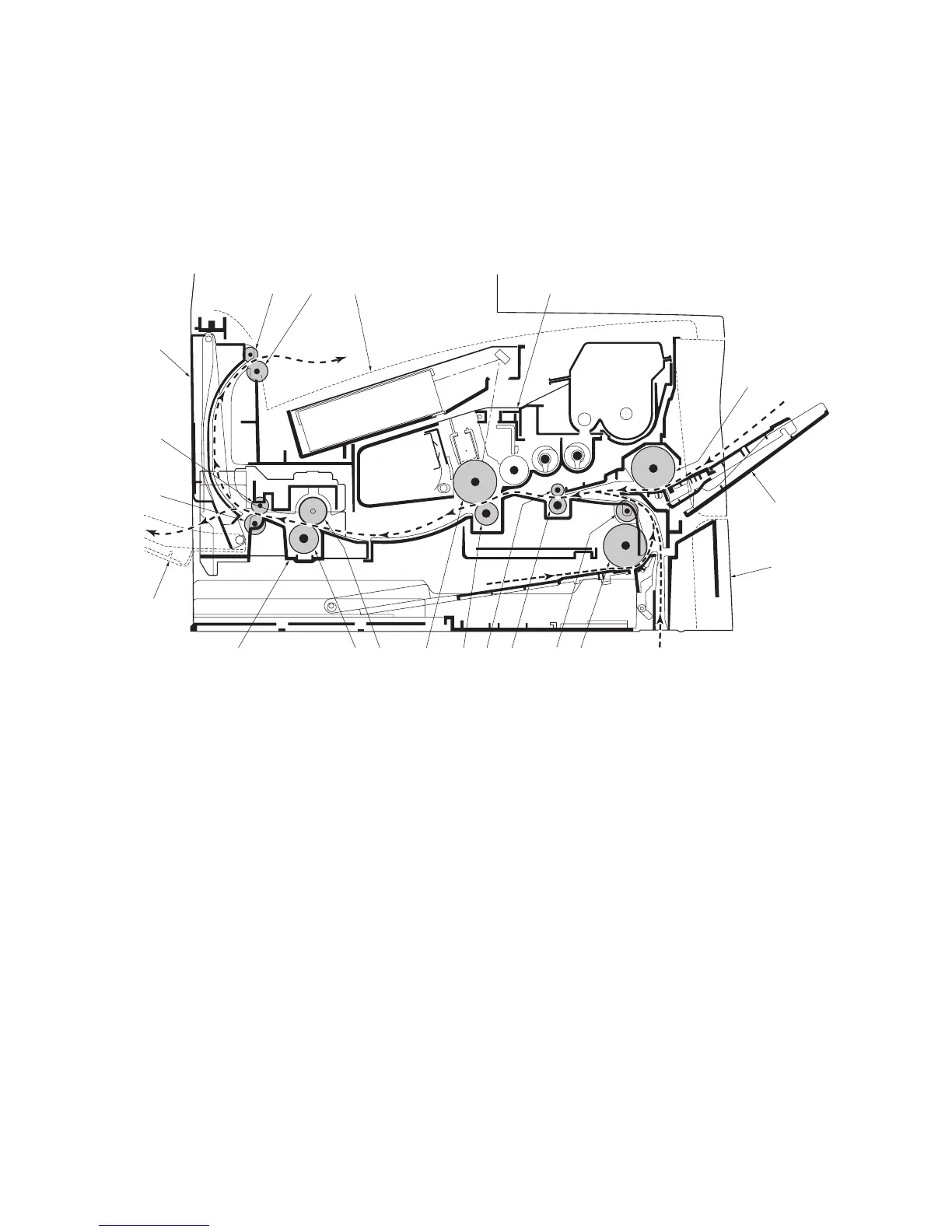

Figure 2-1-1 Paper feeding path
%
6
4
4
&
^
$
#@ 0
8
7
9
!
2
1
(
*
3
5
1 Cassette
2 MP tray
3 Face-down output tray
4 Face-up output tray
5 Process unit
6 Fuser unit
7 Feed roller
8 Feed pulley
9 MP feed roller
0 Lower registration roller
! Upper registration roller
@ Transfer roller
# Drum
$ Heat roller
% Press roller
^ Lower exit roller
& Exit pulley
* Upper exit roller
( Exit pulley
