2GM
1-6-6
1-6-5 Removing the MP f
eed roller
1.
Remove the engine PWB (see page 1-6-9).
2.
Remov
e the screw
.
3.
Remove the grounding plate.
4.
Remove the stop ring .
5.
Remove the MP feed clutch.

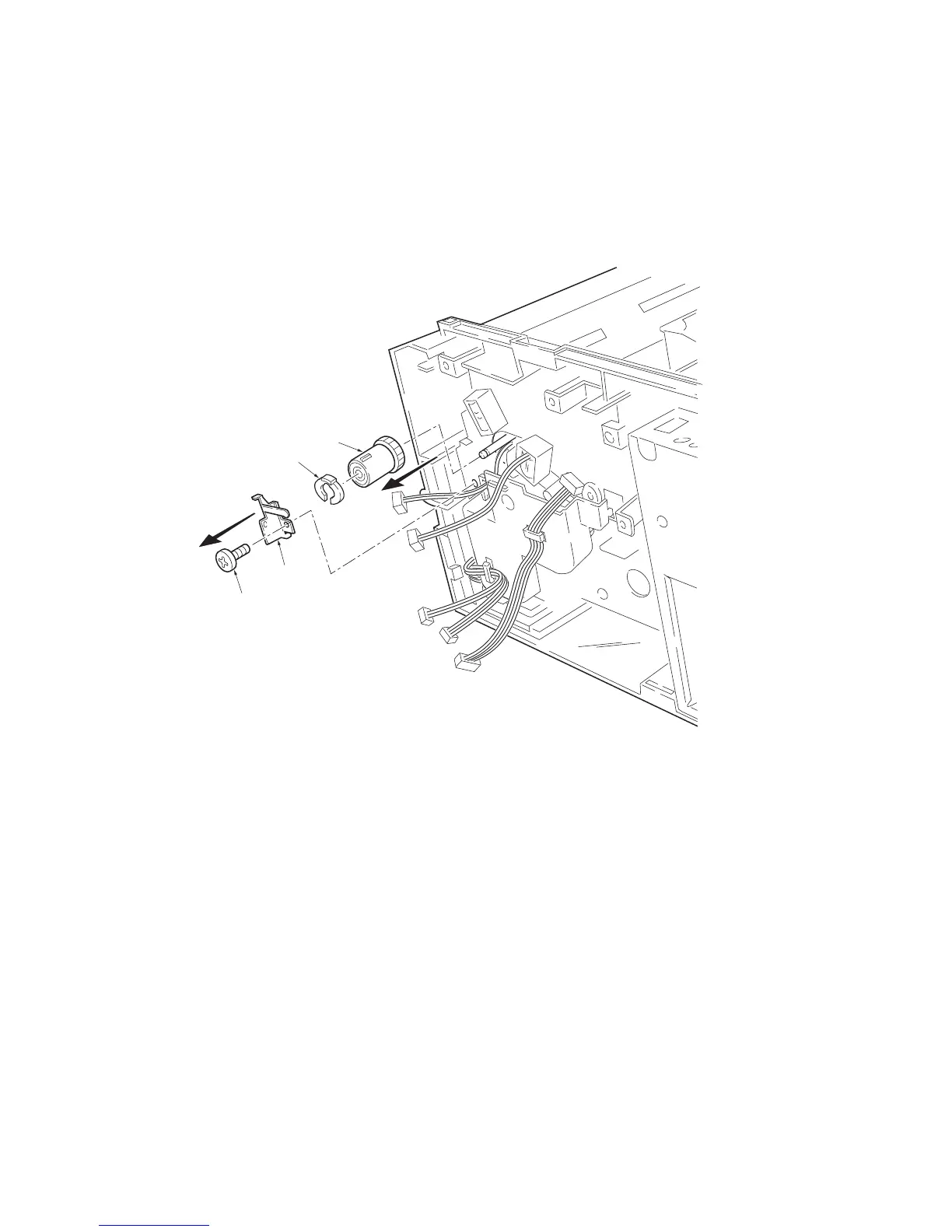

Figure 1-6-7 Removing the MP f
eed clutch
Screw
Grounding
plate
Stop ring
MP feed
clutch
98
