2GM
1-2-1
1-2-1 Drum
Note the following when handling or storing the drum.
• When removing the process unit, never expose the drum surface to strong direct light.
• Keep the drum at an ambient temperature between 10 °C/50 °F and 32.5 °C/90.5 °F and at a relative humidity not
higher than 80% RH. Avoid abrupt changes in temperature and humidity.
• Avoid exposure to any substance which is harmful to or may affect the quality of the drum.
• Do not touch the drum surface with any object. Should it be touched by hands or stained with oil, clean it.
1-2-2 Installation environment
1. Temperature: 10 - 32.5 °C/50 - 90.5 °F
2. Humidity: 20 - 80%RH
3. Power supply: 120 V AC, 7.8 A
220 - 240 V AC, 4.0 A
4. Power source frequency: 50 Hz ±0.3%/60 Hz ±0.3%
5. Installation location
• Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sunlight or other
strong light when removing paper jams.
• Avoid extremes of temperature and humidity, abrupt ambient temperature changes, and hot or cold air directed onto
the machine.
• Avoid dust and vibration.
• Choose a surface capable of supporting the weight of the machine.
• Place the machine on a level surface (maximum allowance inclination: 1° ).
• Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such as
mercury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic solvents.
• Select a room with good ventilation.
6. Allow sufficient access for proper operation and maintenance of the machine.
Machine front: 1000 mm/39
3
/
8
" Machine rear: 300 mm/11
13
/
16
"
Machine right: 300 mm/11
13
/
16
" Machine left: 300 mm/11
13
/
16
"
a: 385 mm/15
3
/
16
"
b: 460 mm/18
1
/
8
"
c: 496 mm/19
9
/
16
"
d: 421 mm/16
5
/
8
"
e: 665 mm/26
3
/
16
"
f: 740 mm/29
3
/
16
"
a
b
c
d
e
f

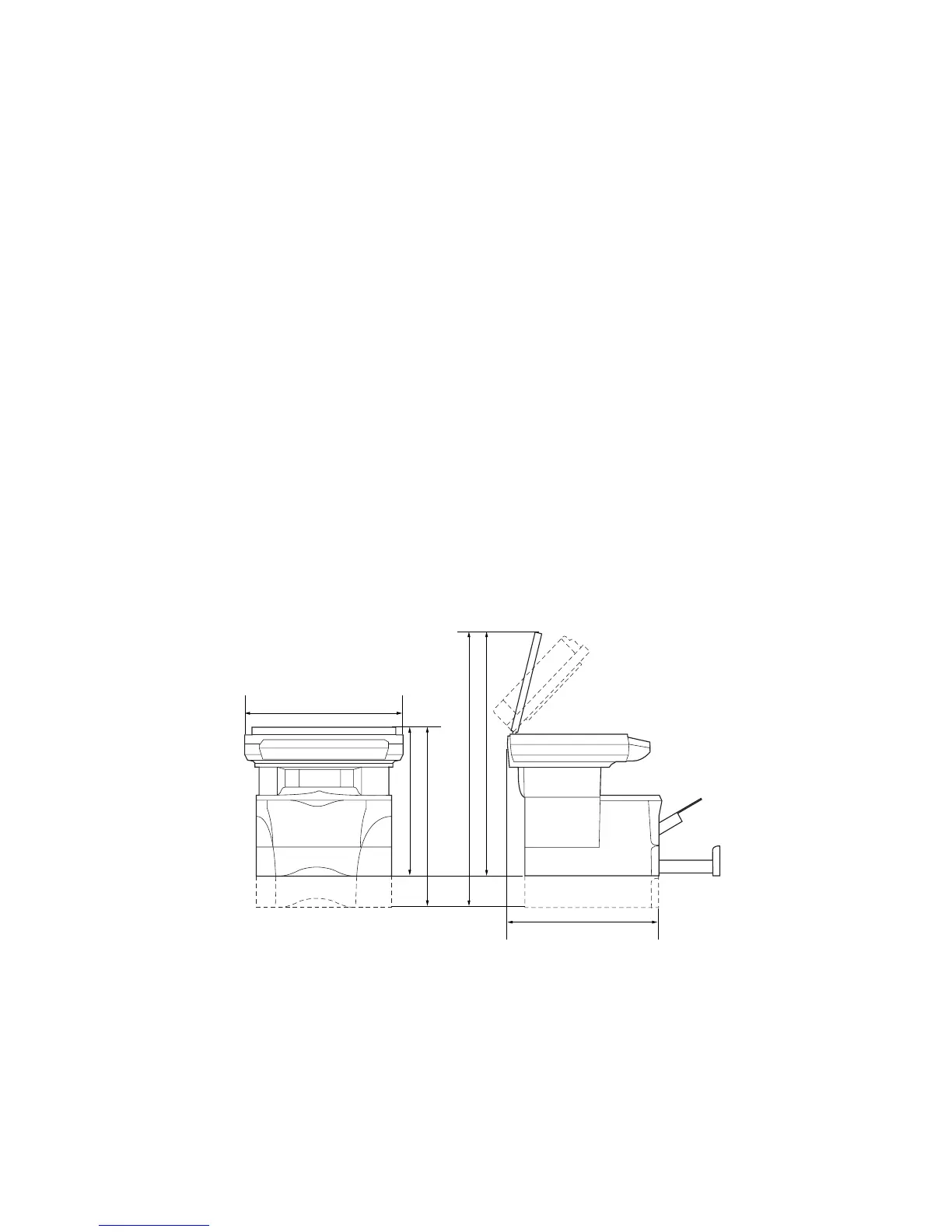

Figure 1-2-1 Installation dimensions
