2GM
1-6-24
(4) Removing the thermistor
1.
Remove and split the fuser unit (see page 1-6-18).
2.
Remove the heater lamp (see page 1-6-21).
3.
Remove the heat roller (see page 1-6-22).
4.
Remov
e the screw
.
5.
Remov
e the ther
mistor
.

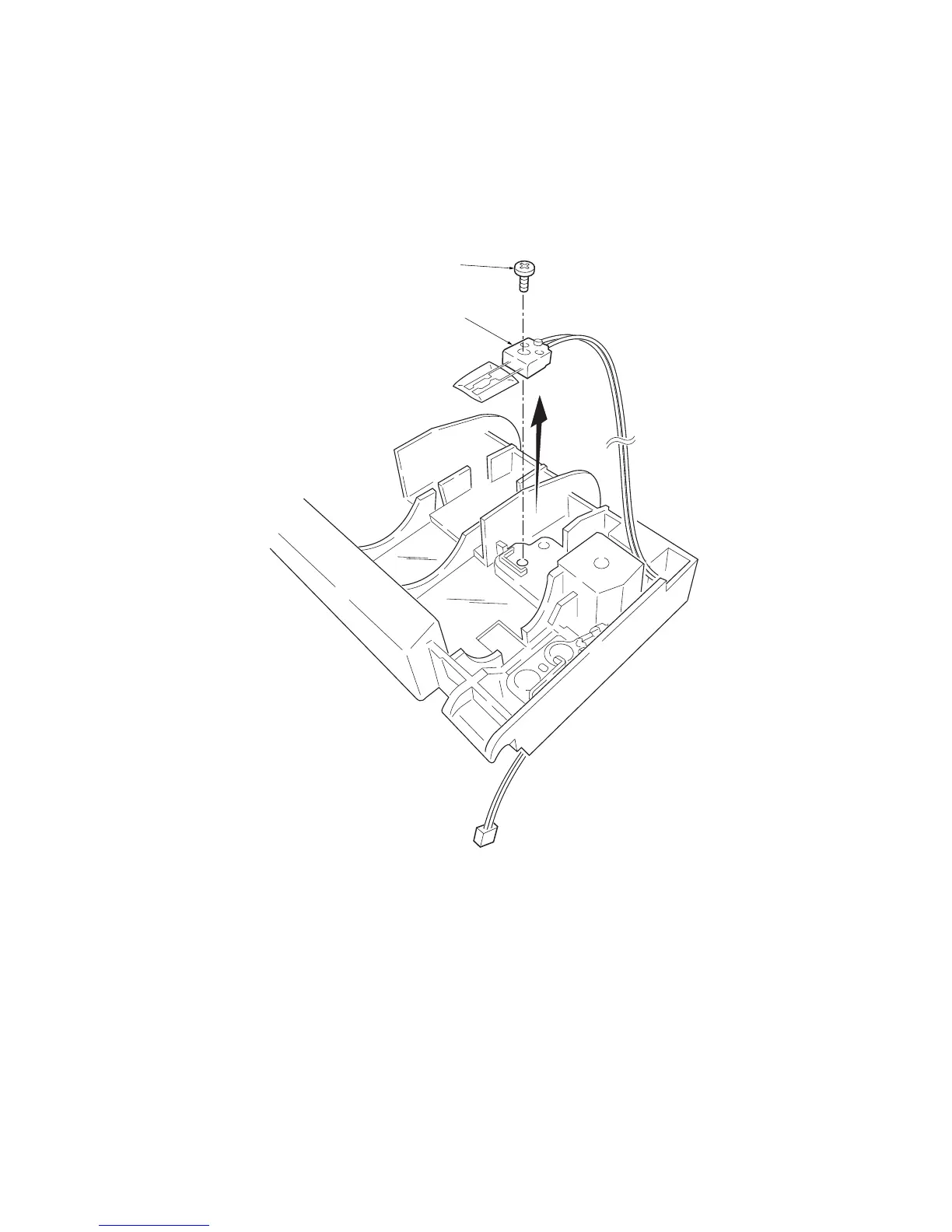

Figure 1-6-27 Removing the thermistor
Screw
Thermistor
116
118
